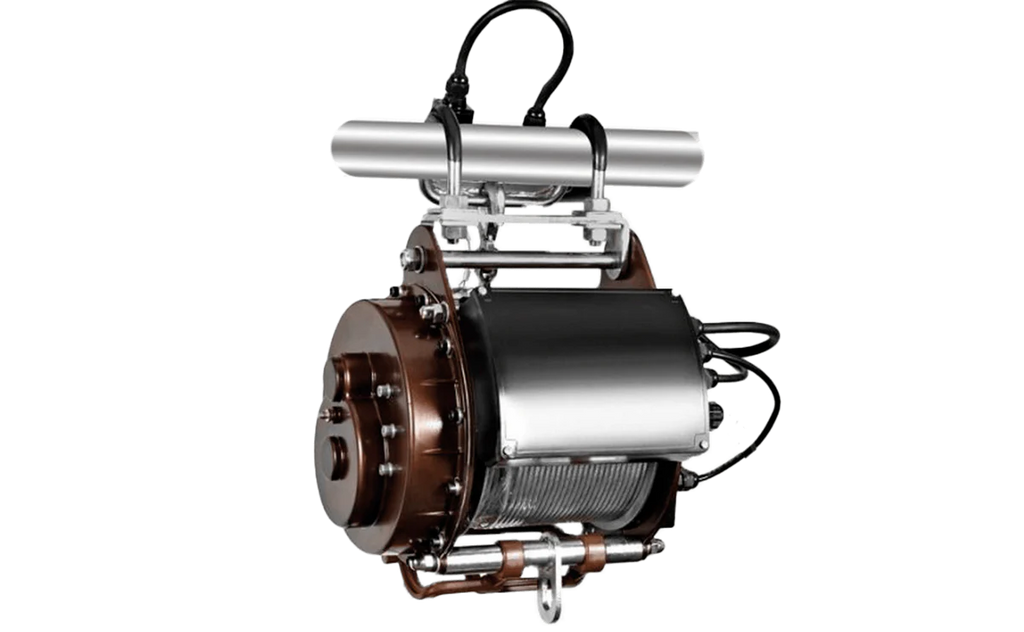

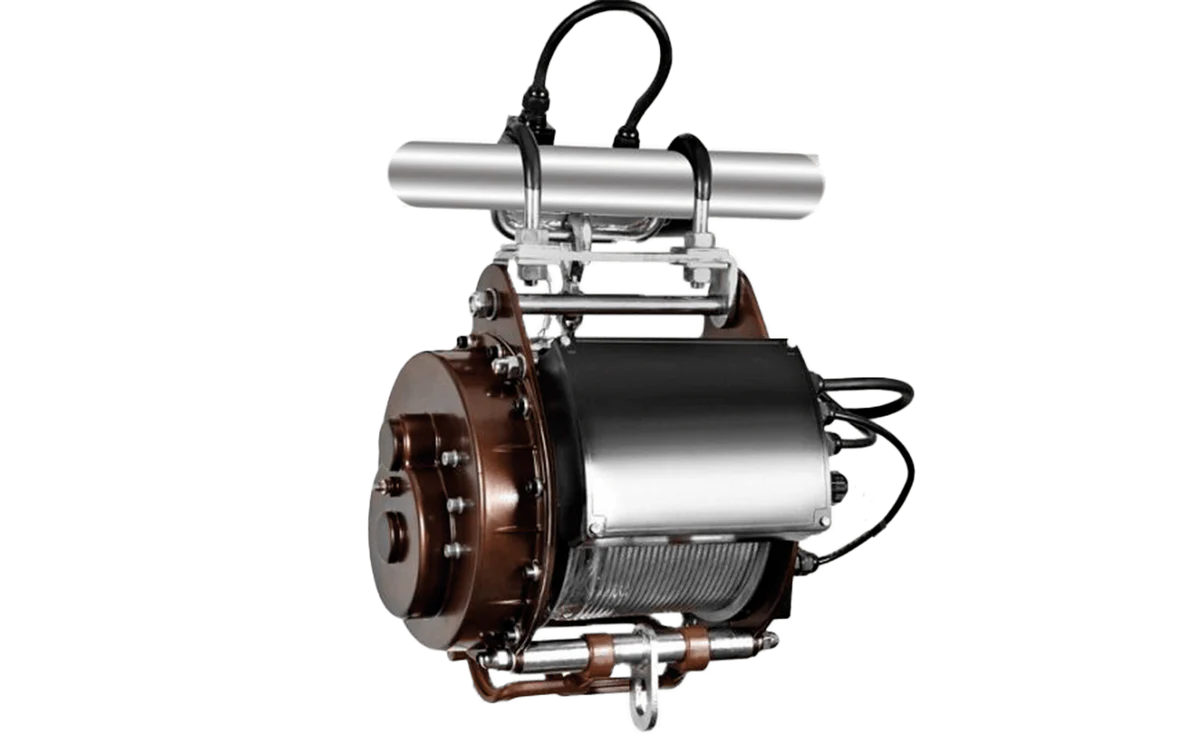

Warrior 800KG Scaffold Hoist - 110v Pendant Remote

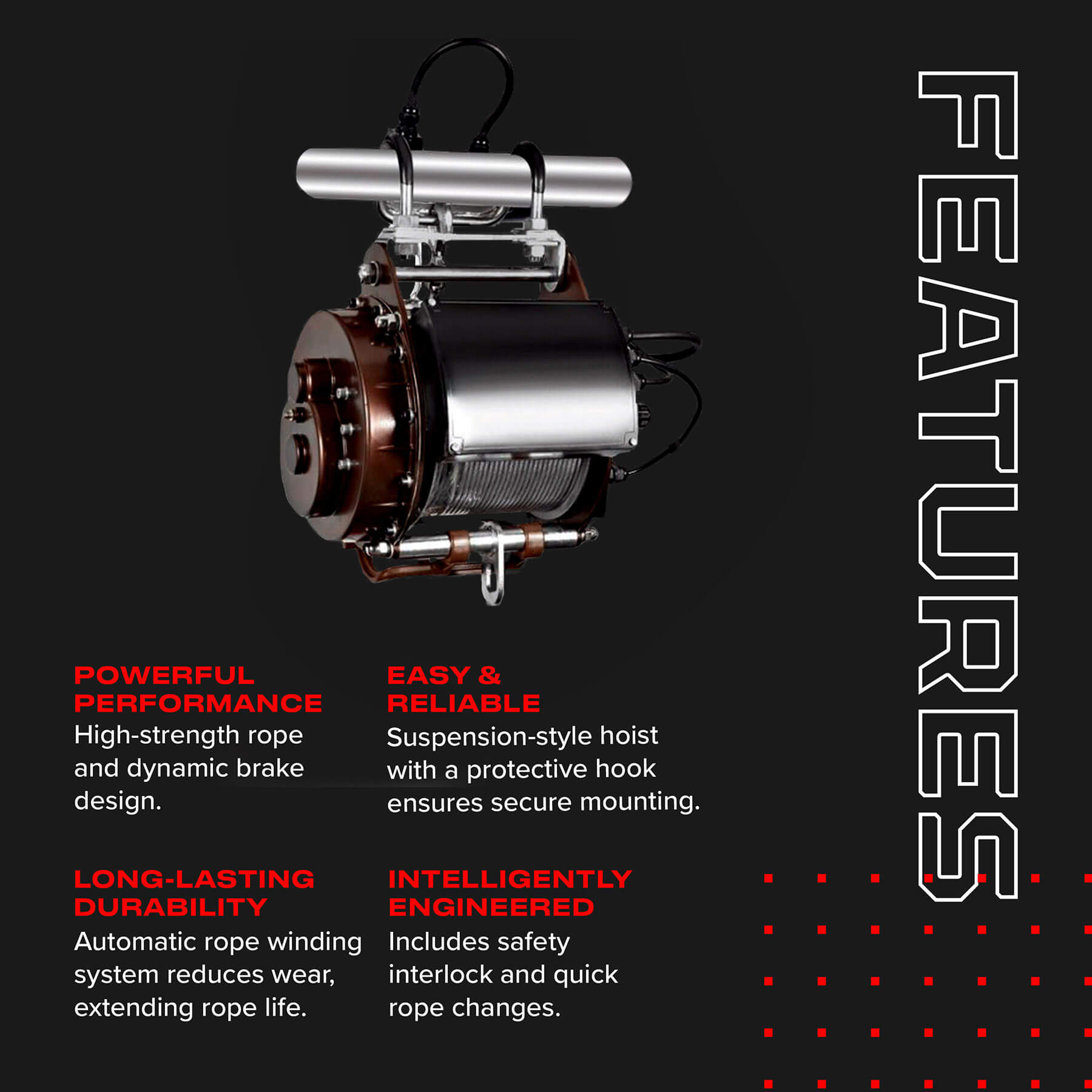

A brand-new addition to the Warrior range, this portable hoist is packed with cutting-edge features and smart new design details. Made to hook onto scaffolding, this suspended-style hoist makes the job of getting materials from one floor to the next easier and safer. Thanks to the easy installation and added protection hook, safety is made simple.

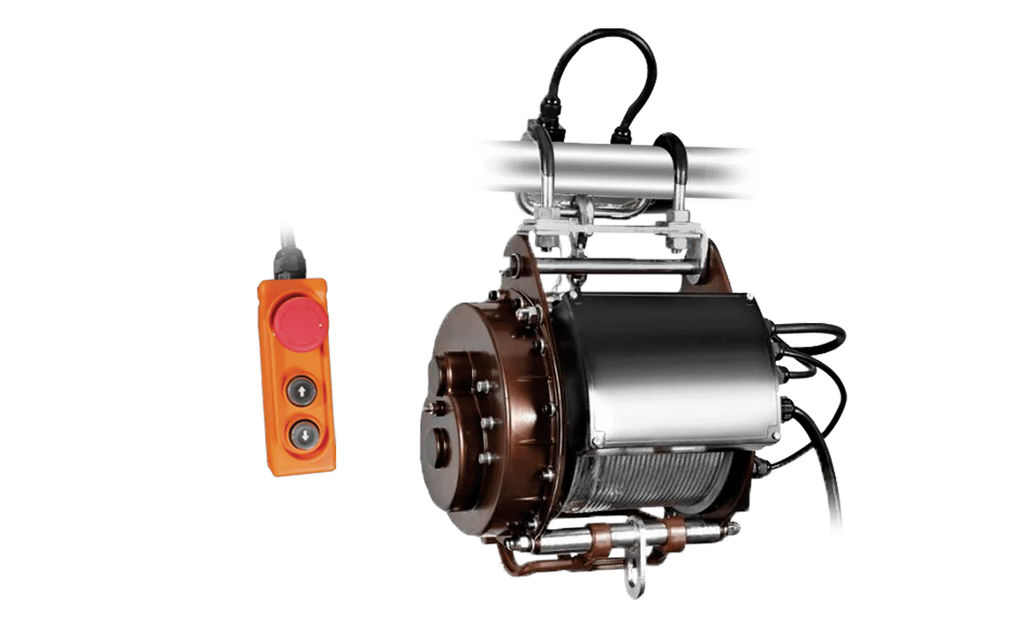

Featuring 30m of cable and a pendant remote at a power level of either 110v, it’s ideal for builders and roofers looking to work smarter. And with a capacity of 800kg and a smart internal dynamic brake that holds the weight at both static and dynamic positions; it does the hard work for you.
Made with strong steel and a durable powder-coated finish, the hoist is made to last. With a smart new beating system that allowed free rotation of the cable drum and an automatic rope winding system that keeps ropes neat; both are made to extend the life span of the hoist.
The duty cycle of this winch is S3 – 20% on a 10-minute cycle. In plain English, that means this unit can be used continuously for 2 minutes before needing an 8-minute cooldown period. Thanks to the load-holding brake, you can pause without losing any progress or needing to disassemble.
Combined with a suitable installation these hoists can conform to part of BS EN14492-1 and BS EN14492-2 European standards, you can work with confidence.
Specifications:

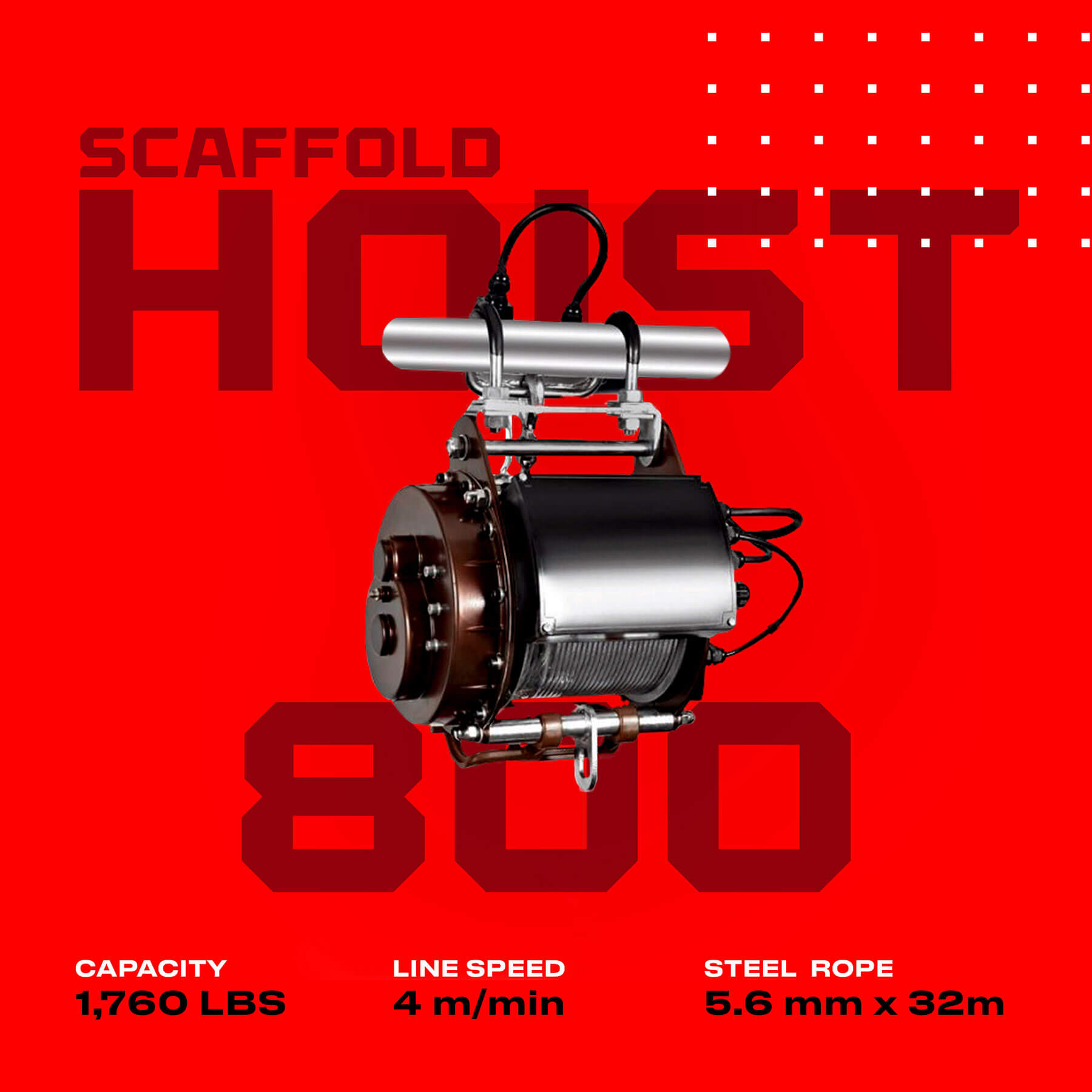

Maximum Lifting Capacity - 400kgs (30m) / 800kgs (15m) (Single Line / Double Line)
Cable Diameter & Length - 5.6mm x 32m steel with swivel hook
Line Speed - 8m/min Single Line at 400kg / 4m/min Double Line at 800kg
Limit Switch For Safety - Upper & Lower
IP Rating - 54
Remote Length - 4m
Please note: The 110v model hoist will only run on 110v 50Hz used by most of Europe and cannot be used with USA 110v 60Hz transformers.
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
