Name: JR10 22,000lb (10 Ton) Industrial Hydraulic Winch
Brand: Warrior Winches
SKU: 10JR03H
Price: 3254.99 GBP
Availability: InStock

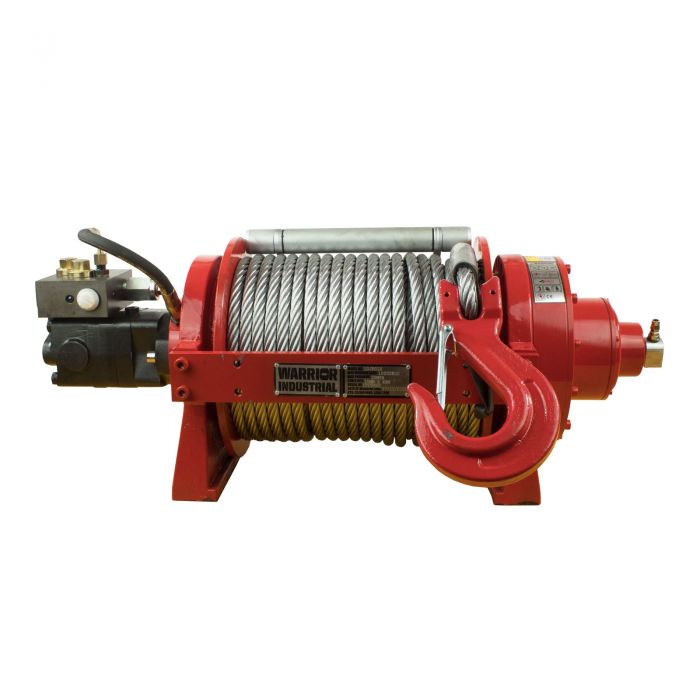

JR10 22,000lb (10 Ton) Industrial Hydraulic Winch

Warrior 10JP Industrial 10 Tonne Hydraulic Winch hook

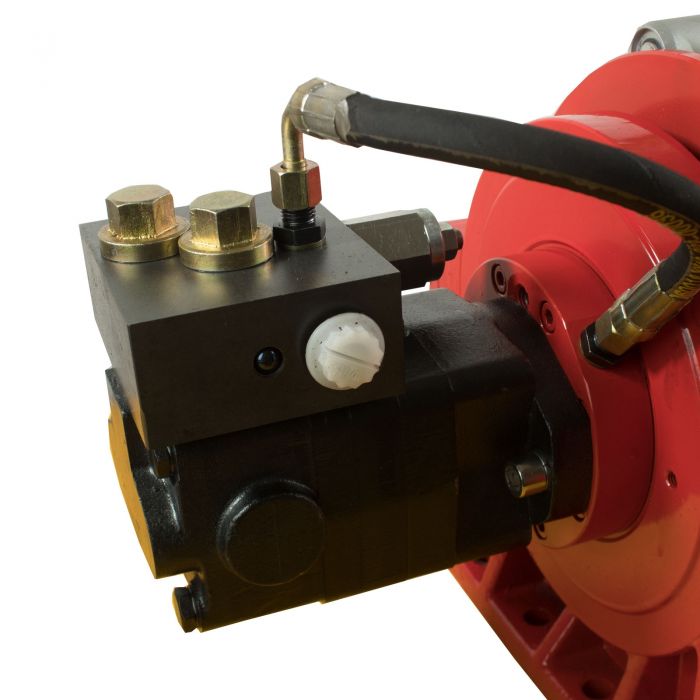

Warrior 10JP Industrial 10 Tonne Hydraulic Winch balance valve

Warrior 10JP Industrial 10 Tonne Hydraulic Winch steel rope

Warrior 10JP Industrial 10 Tonne Hydraulic Winch cable tensioner close up

Roll over image to zoom in Click on image to zoom

Rugged High Torque Motor
2 Stage Planetary Gearing
Complete with Balance Valve
Air Operated Freespool
Rugged and compact for Long Life
Heavy Duty Steel Cast Frame
Rope and Tensioner as Standard

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

Choose Paypal at checkout to pay later with Pay in 3.
Complete your purchase with the first payment today.
Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Warrior 10JR Industrial 10 Tonne Hydraulic Winch

The complete Package. A superb heavy duty winch supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.

Standard Features:

♦ Line Capacity: 22,000lb (10,000kg)
♦ Rope: Steel cable 15mm x 48m
♦ Motor: Hydraulic
♦ Gearbox: 39:01:00
♦ Warranty: Limited One Year Mechanical

Accessories:

♦ Wired Hand Control: Available as an optional extra
♦ Wireless Control: Available as an optional extra
♦ Fairlead: Roller Fairlead optional extra (RF2000)
♦ Mounting Bolts: Included for Standard installations

Also Includes:

♦ Balance Valve
♦ Cable Tensioner
♦ Instruction Manual

Other Information:

♦ Dimensions: 830mm L x 390mm D x 320mm H
♦ Mounting Bolt Pattern: 431mm x 192mm
♦ Approx. Shipping Weight: 165kg

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull	22000 lbs
Motor Type	Hydraulic Sauer Danfoss OMS 100
Gearing	39:1
Clutch	Air Clutch
Braking Action	Auto Hydraulic
Drum Size (Dia x L)	138 x 316 mm
Cable Material	Steel
Cable – Dia x L	15mm x 48m
Mounting Pattern	431mm × 64mm × 192mm mm
Dimensions	830 x 390 x 320 mm
Max Flow L/Min	75 L/Min
Max Pressure MPA	20.0 Bar
Certification	CE, UKCA

Layer of Rope/Cable	Line Pull: lbs(kgs)
1	22046 (10000)
2	16889 (7661)
3	14615 (6630)
4	12881 (5843)

Line Pull lbs (kgs)	Line Speed ft/min (m/min)	Flow L/min (G/min)	Pressure Mpa
0	5.9 (1.8)	15	25
4000 (1814)	11.7(3.6)	30	42
8000 (3629)	19.6 (6.0)	50	85
15000 (6804)	23.6 (7.2)	60	140
22046 (10000)	29.7 (9.0)	75	175

What's in the box:

Tensioner
Hook
Steel Rope
Balance Valve

User Manual	Download
Brochure	Download

Load Test

Ask a Question

Hi I’m after a pulling winch that can pull at least 6 ton. What extra things do I need to make this work. Ie oil tank, power requirements (plug type etc). Anything else ? It will bolt down onto steel

In order to offer a full repsonse, it would be great if you could contact our sales team to discuss this. We would need to know if the 6t is a dead weight or a rolloing load and if there is any incline in order to be able to respond with any accuracy.
