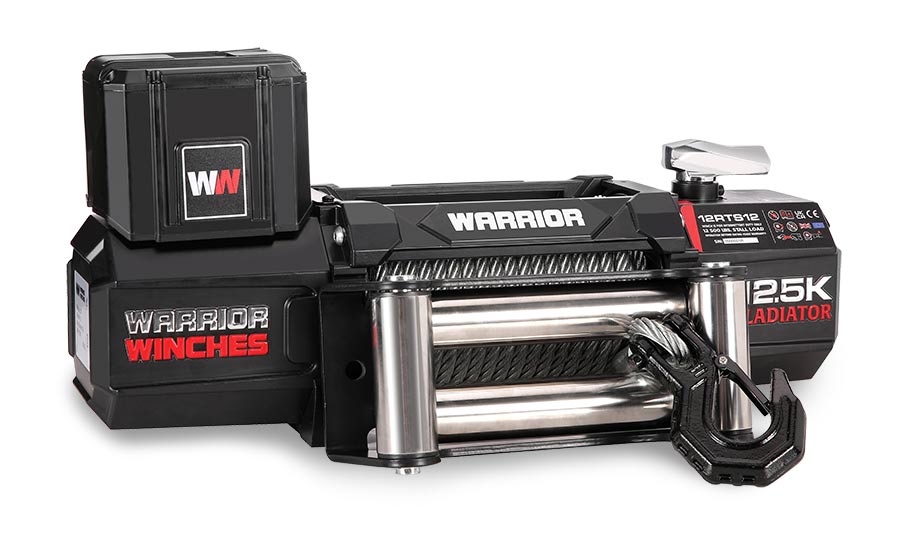

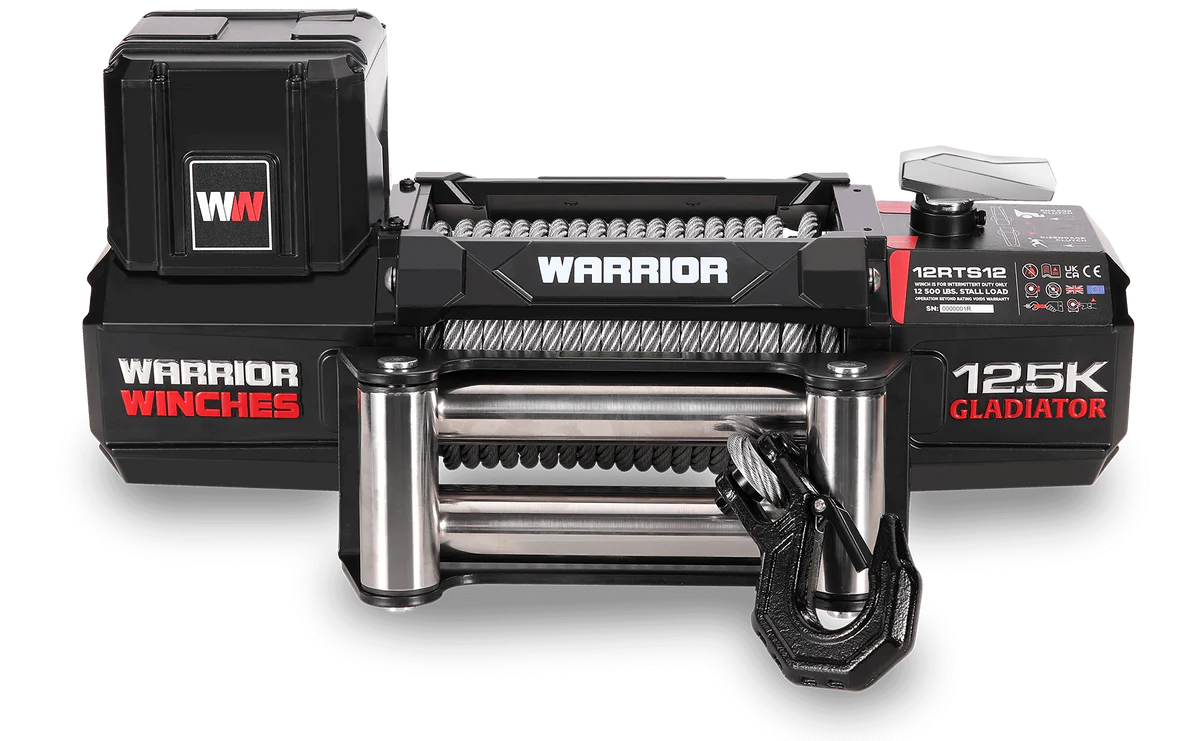

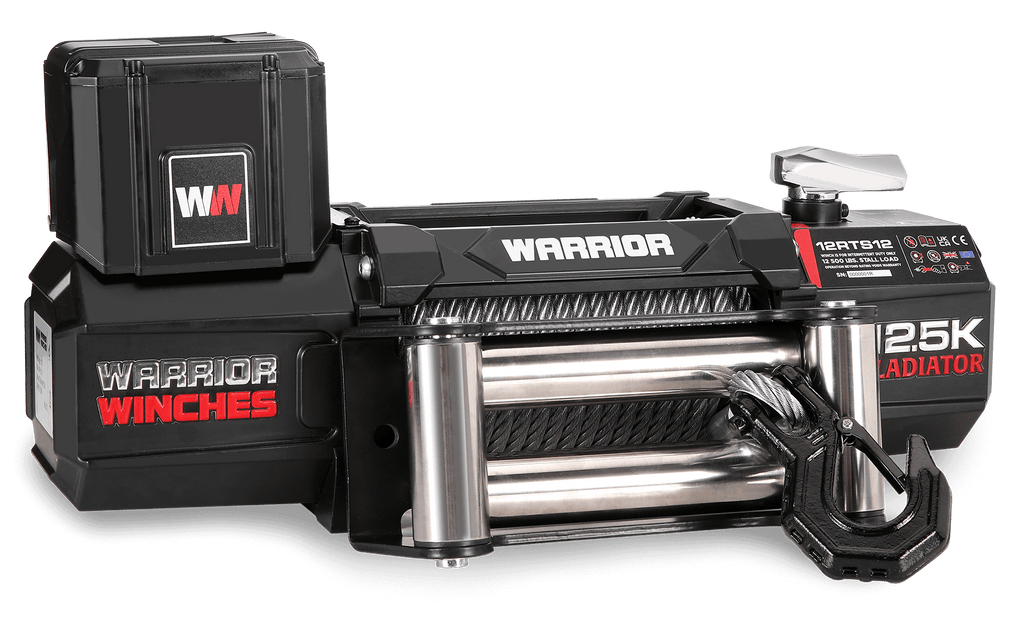

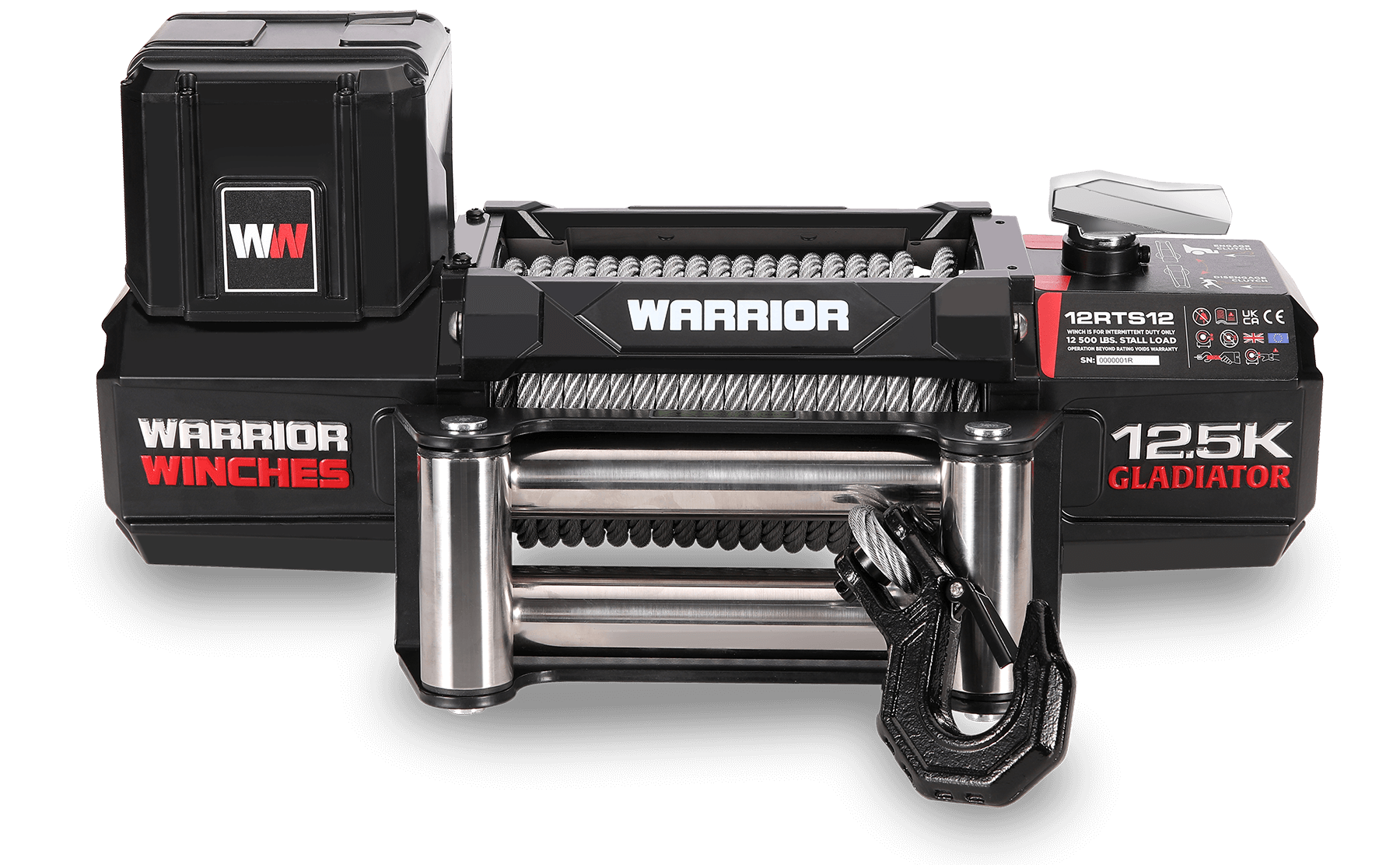

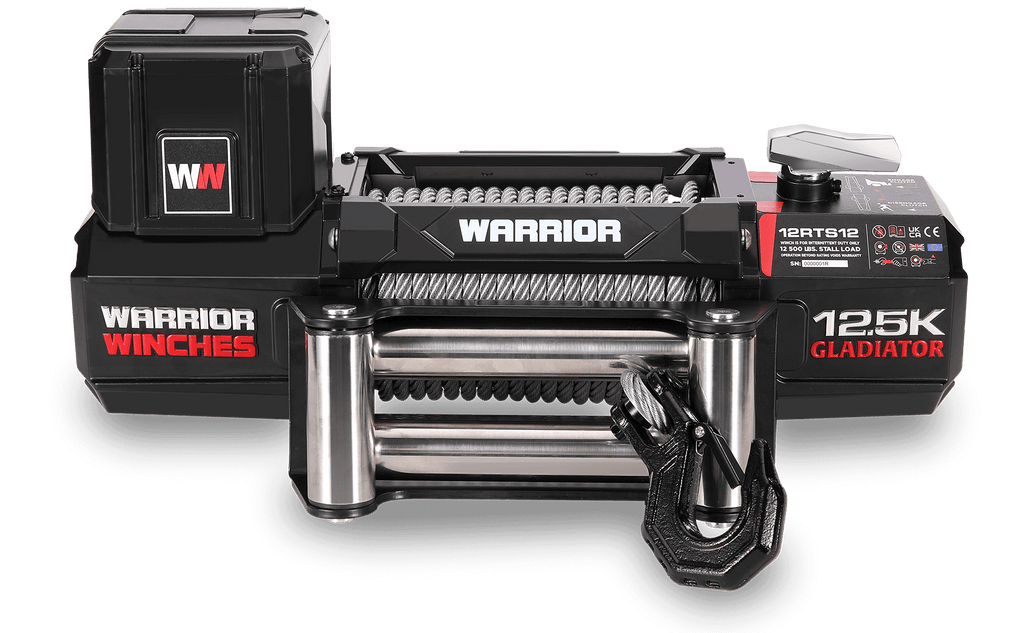

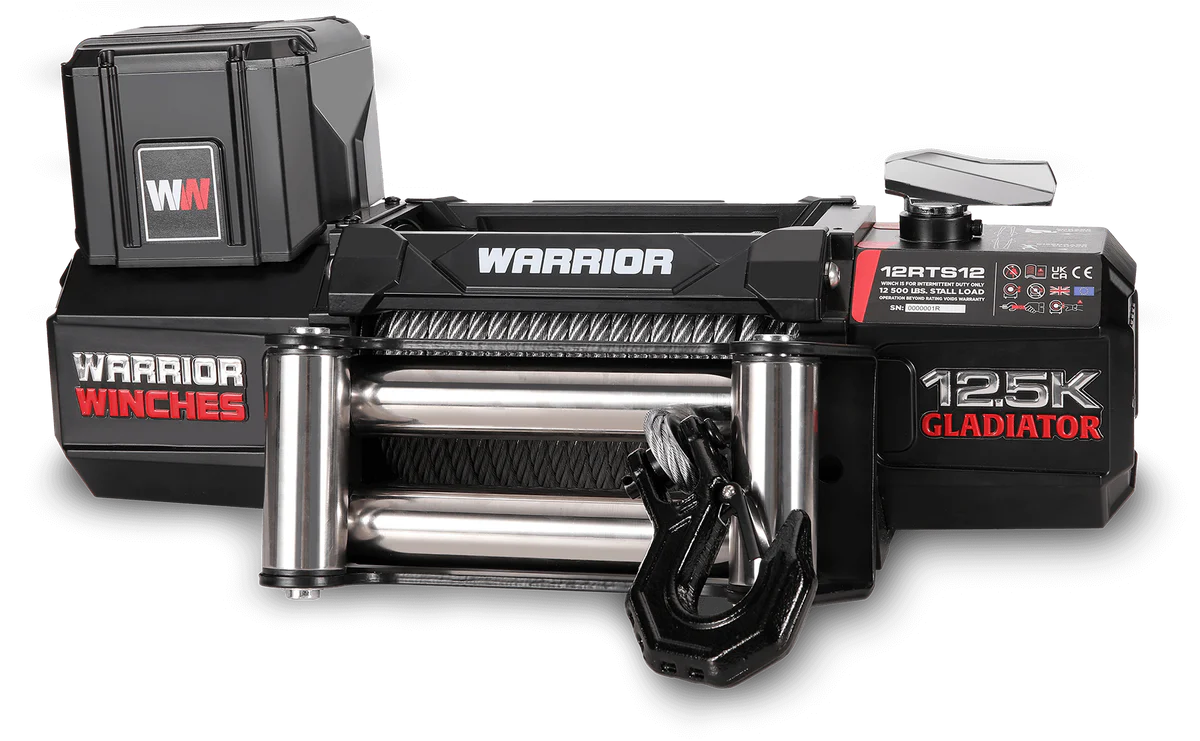

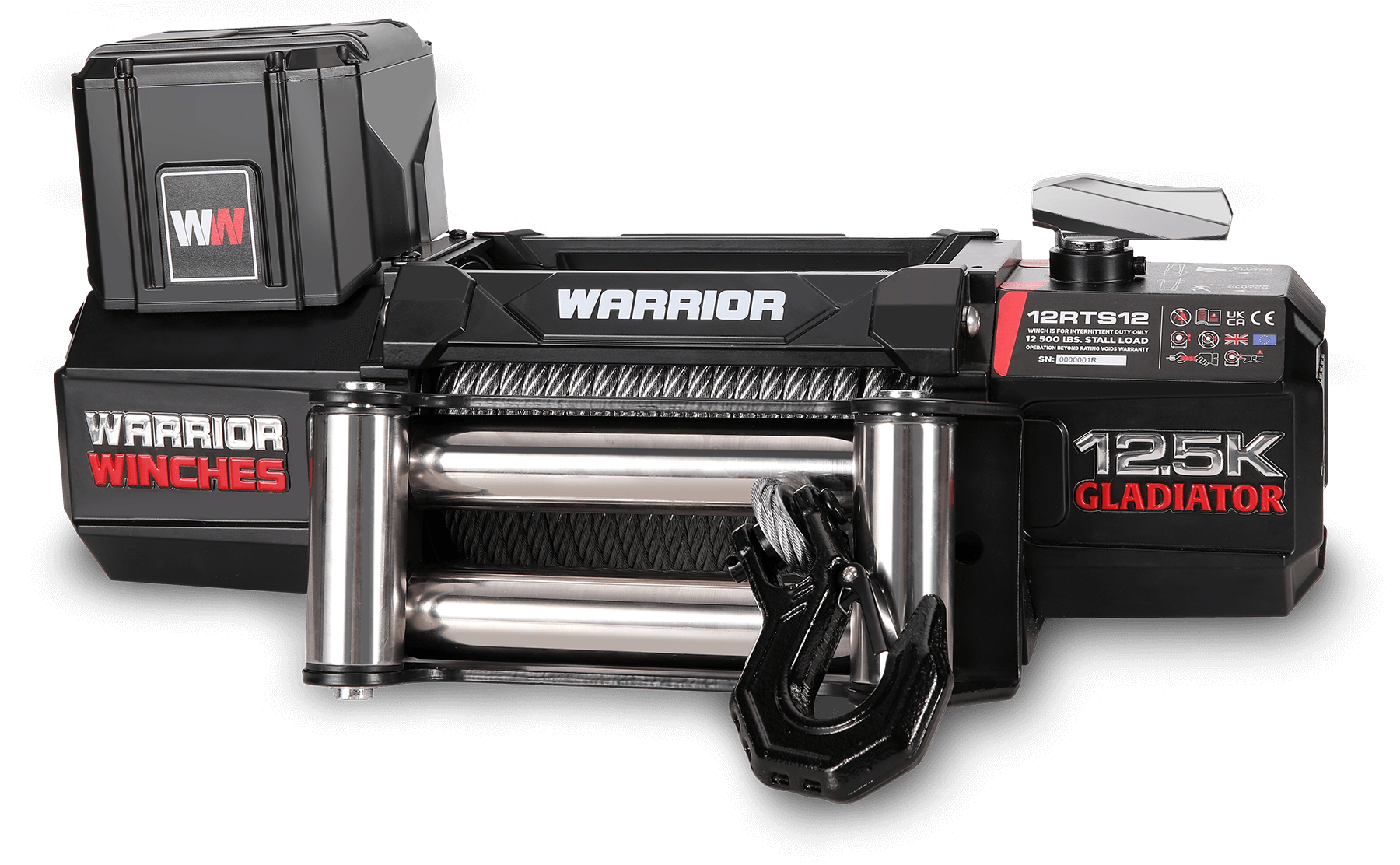

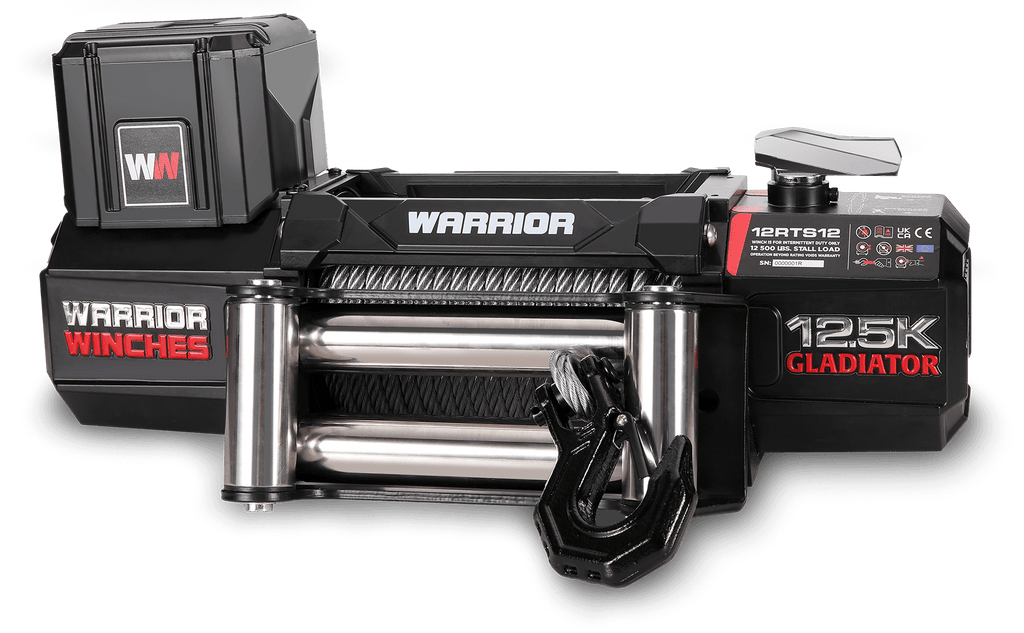

Gladiator R-Type 12500 Electric Winch

 0 Reviews | Ask a Question SKU: 12RTS12
Price:
£749.99
In stock (Delivery in 1-2 working days)
Pay in 3 interest-free payments of £249.99 with Paypal Logo. Learn more
You may also like:

Gladiator F-Type 12500 Electric Winch
£899.99

Warrior T1000-145 14500lb Severe Duty Winch
£1,182.99

Warrior T1000-2200 22000lb Severe Duty Winch
£1,772.99

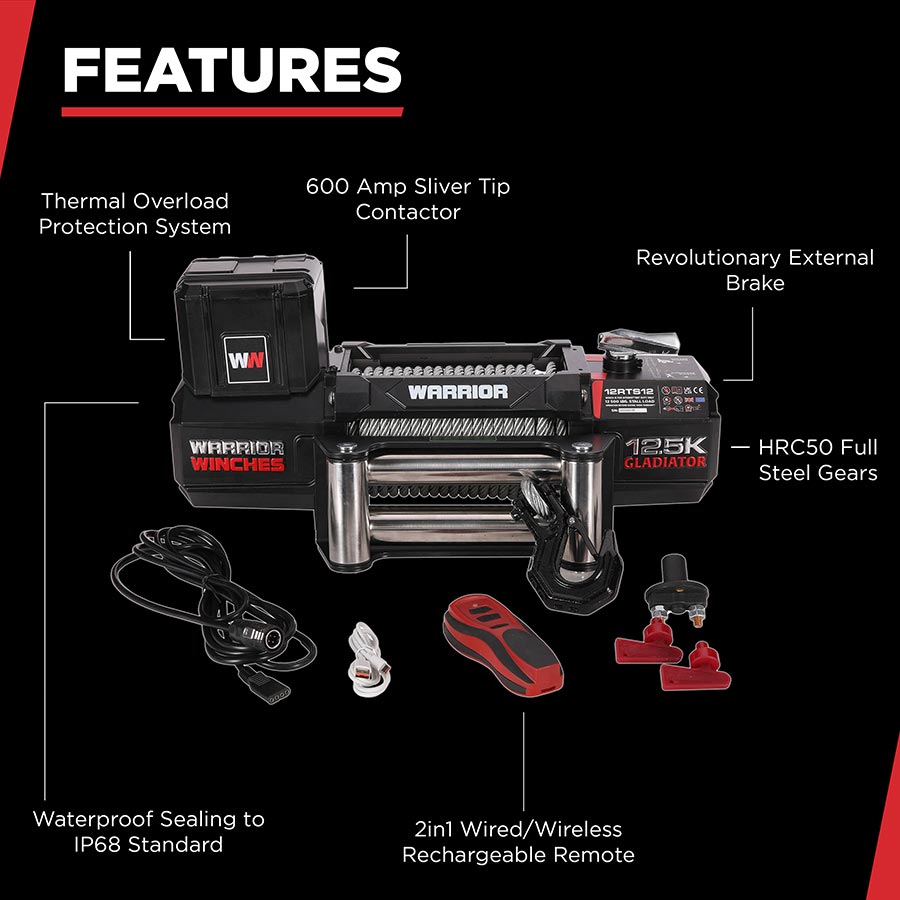

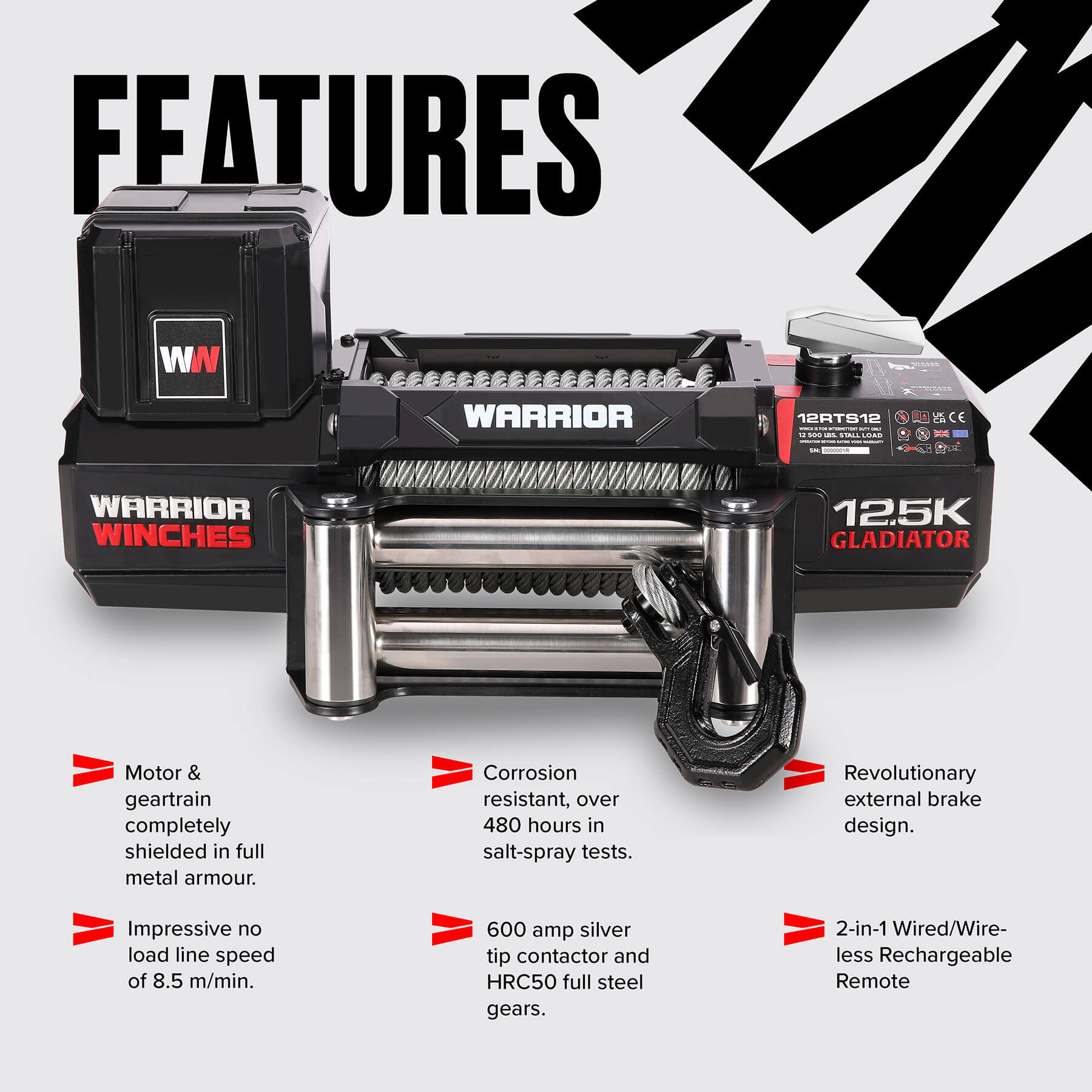

Features

  • 2in1 Wired/Wireless Rechargeable Remote for ease of use in any situation. A USB charging cable means you can recharge the remote in your vehicle.
  • Thermal Overload Protection System prevents damage to the winch, giving you peace of mind that your winch is protected in extreme use cases
  • The motor and geartrain are completely shielded in full metal armour and we have gone the extra step to cover the control pack in sturdy aluminium for maximum protection.
  • Warrior's high powered motor and geartrain delivers high performance and powerful pulling capacity whilst maintaining an ultra low amp draw so you don't drain your battery.

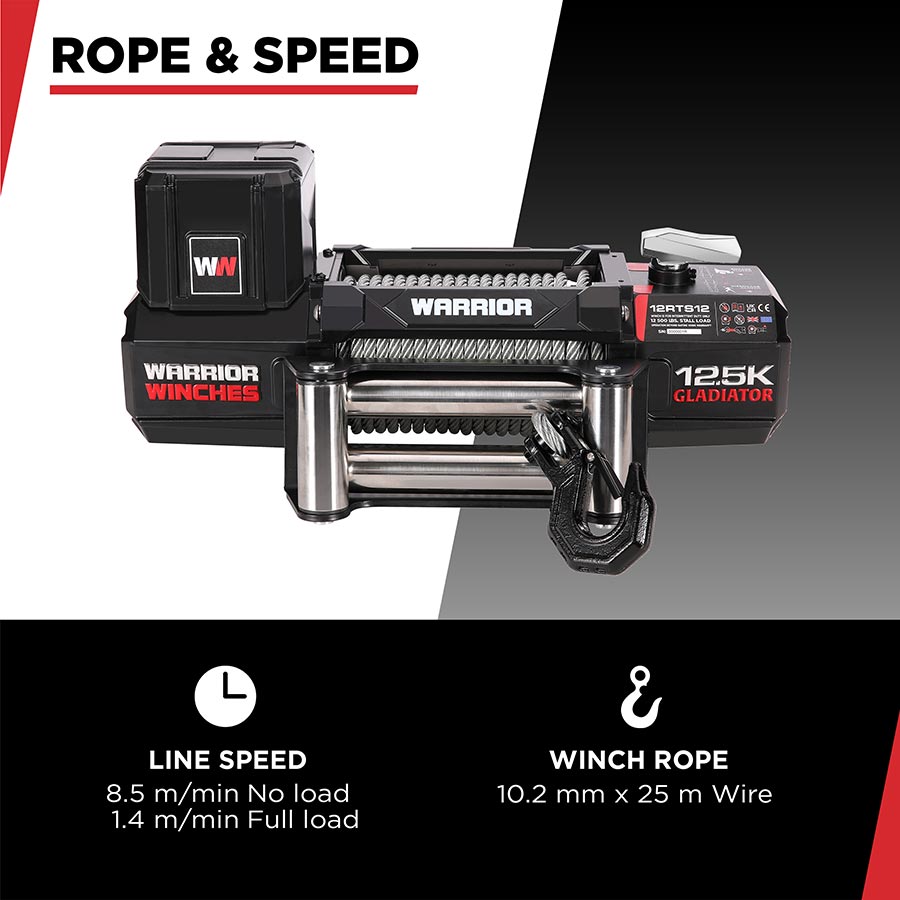

  • Impressive no load line speed of 27.8ft/min (8.5m/min).
  • 600 amp Silver Tip Contactor provides greater electrical efficiency and withstands higher temperatures, whilst a low corrosive Silver Copper Motor with Copper Brush Holders ensures a longer motor life.
  • HRC50 Full Steel Gears provide superior durability and long life.
  • Extensive Waterproof Sealing to the IP68 Standard keeps water and the elements out.
  • Our Revolutionary External Brake Design means less heat and stress is transferred to your winch rope, prolonging it's life, giving you maximum return and value for money.
  • Durable aluminium cover, outdoor anti-corrosion powder coating and stainless steel mounting hardware provide an exceptional corrosion resistance of over 480 hours of salt-spray-testing.
  • Large Steel Winch Drum reduces wear and tear on the Rope.
  • Stainless steel mounting hardware, extensive sealing  and durable outdoor anti-corrosion powder coating provides superior corrosion resistance.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

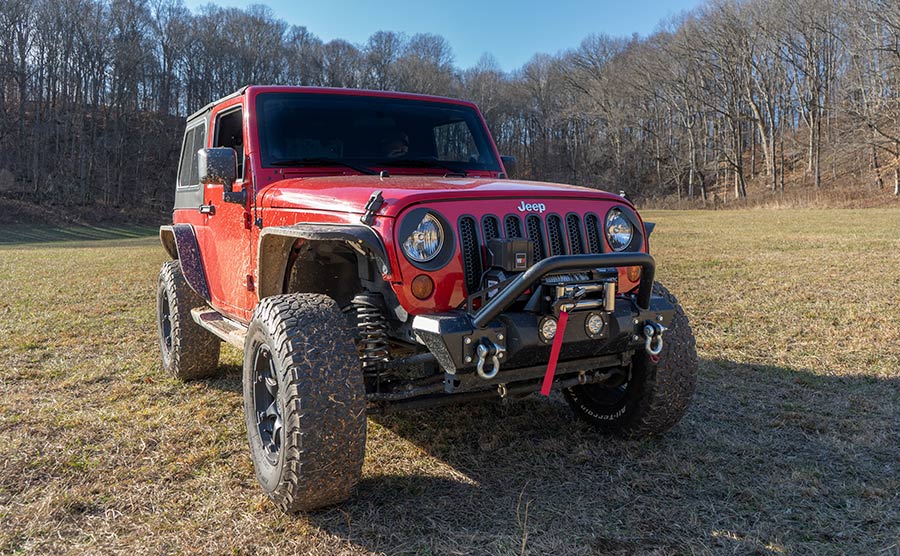

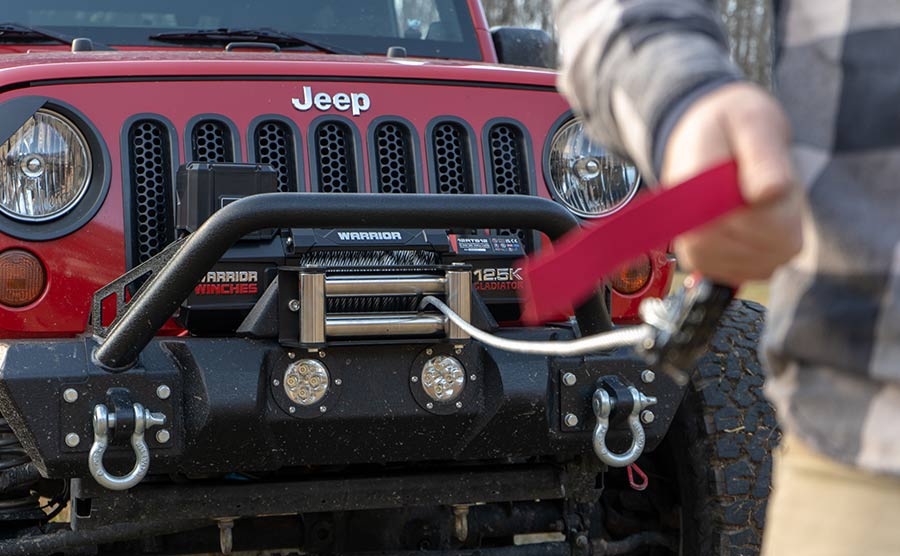

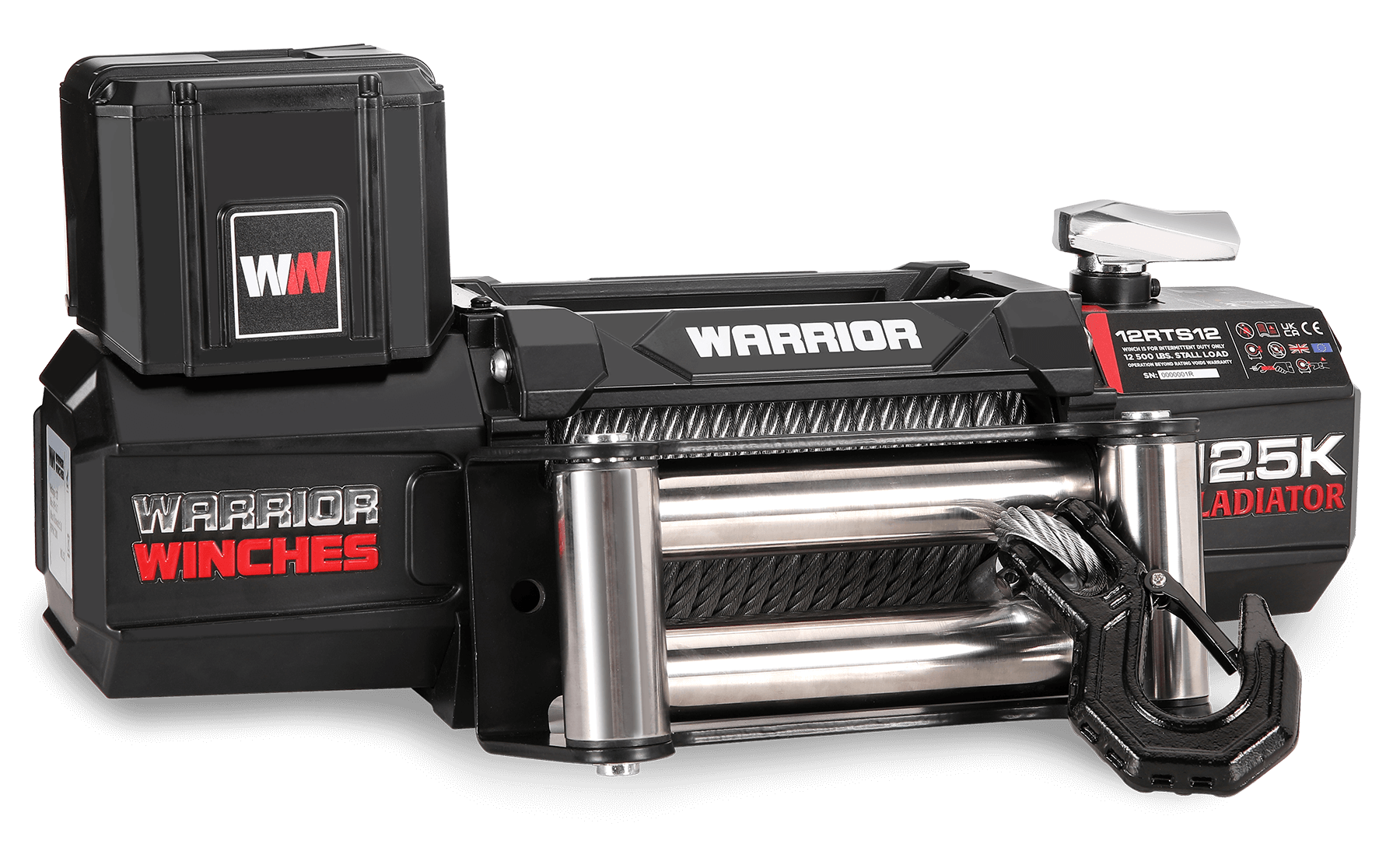

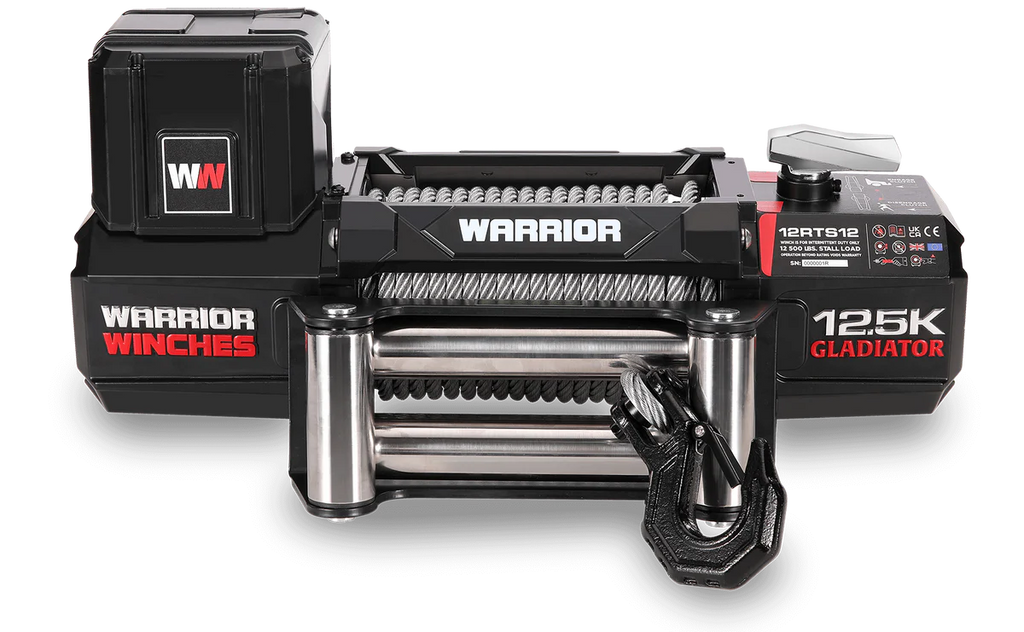

The Gladiator 12v 12500 lbs Electric winch is part of our New Premium Winch Range perfectly suited for offroad, trailers, trucks, Jeeps, SUVs, 4x4 and small recovery.

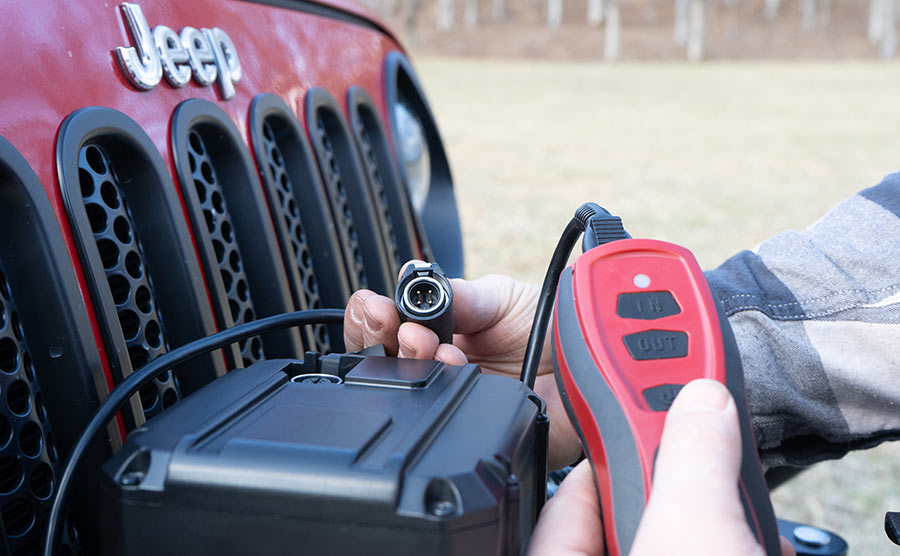

Warrior’s Gladiator winches continue to redefine winching with unmatched durability, performance, and style. A built in 2in1 wired/wireless rechargeable remote system makes winching easy from up to 50ft (15m) away.  The Thermal Overload Protection System means no fear of overheating and damage when winching in extreme environments and during long, hard pulls.

Our Revolutionary External Brake Design keeps heat away from the drum, putting less strain and wear and tear on your winch rope whilst our HRC50 Full Steel Gears offer superior durability and high efficiency for sustained pulling power.

Extensive IP68 Waterproofing together with a Silver Copper Motor with Copper Brush Holders, plus the Durable Coating and Stainless-Steel Mounting Hardware provides superior corrosion resistance.

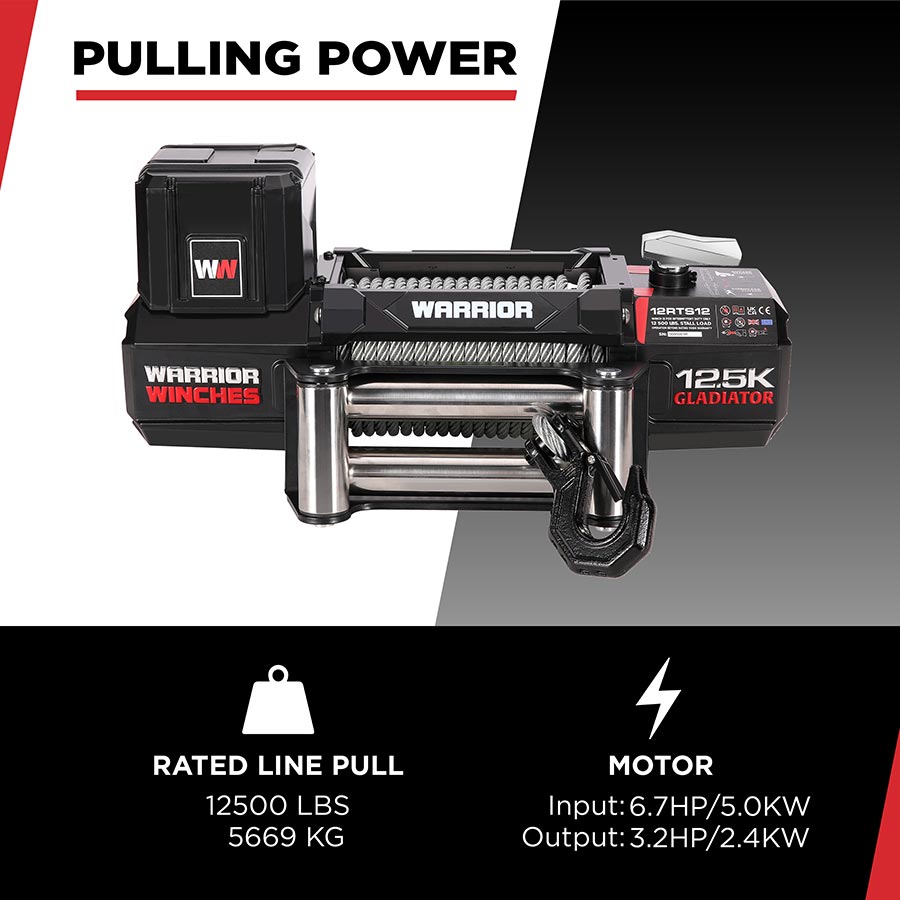

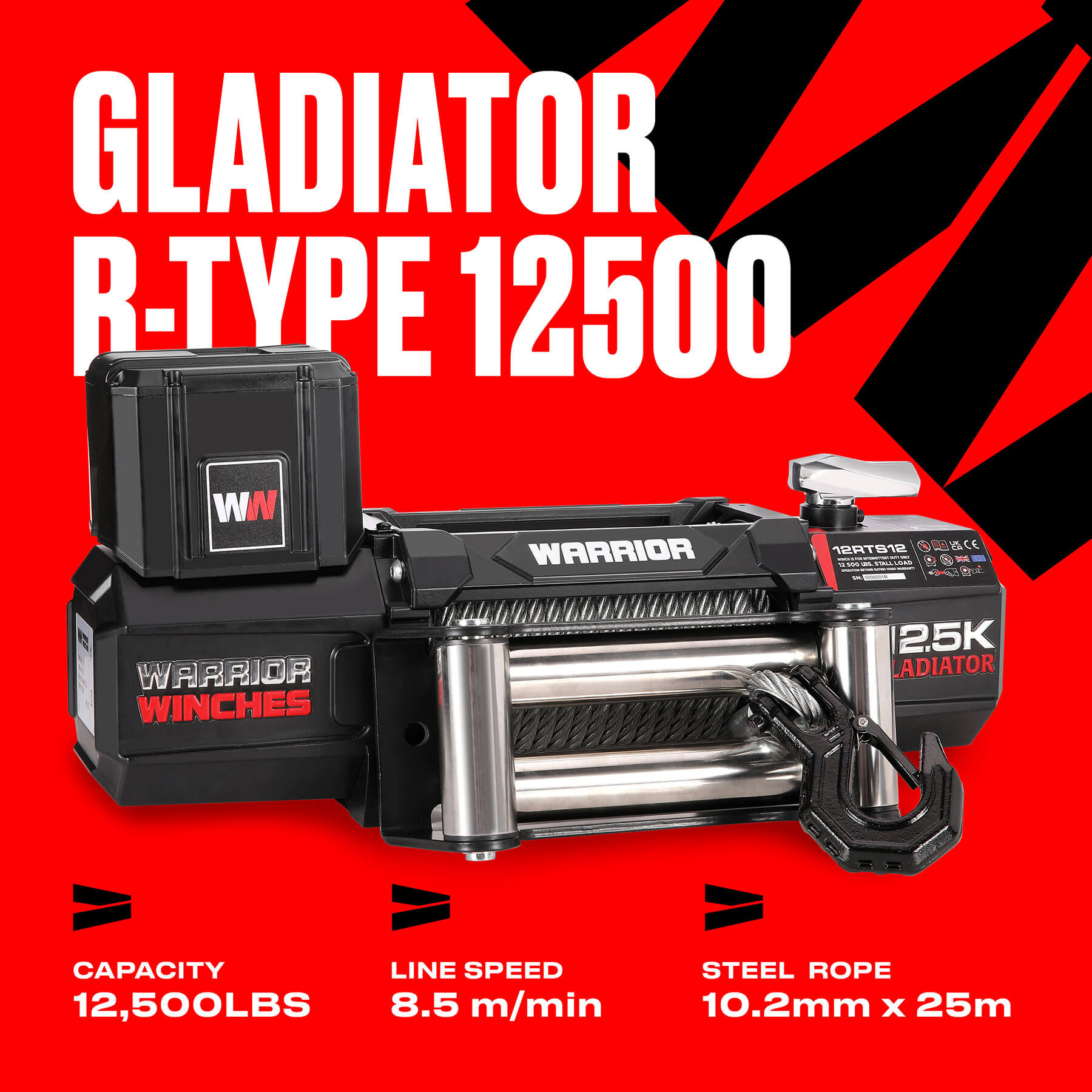

Rated Line Pull Lbs (Kg) 12500 lbs (5669kg)
Motor Type 12V: Input:5.0kw/6.7hp;
Output:2.4kw/3.2hp
Gearing 196:1
Clutch Manual
Braking Action Patented ratchet

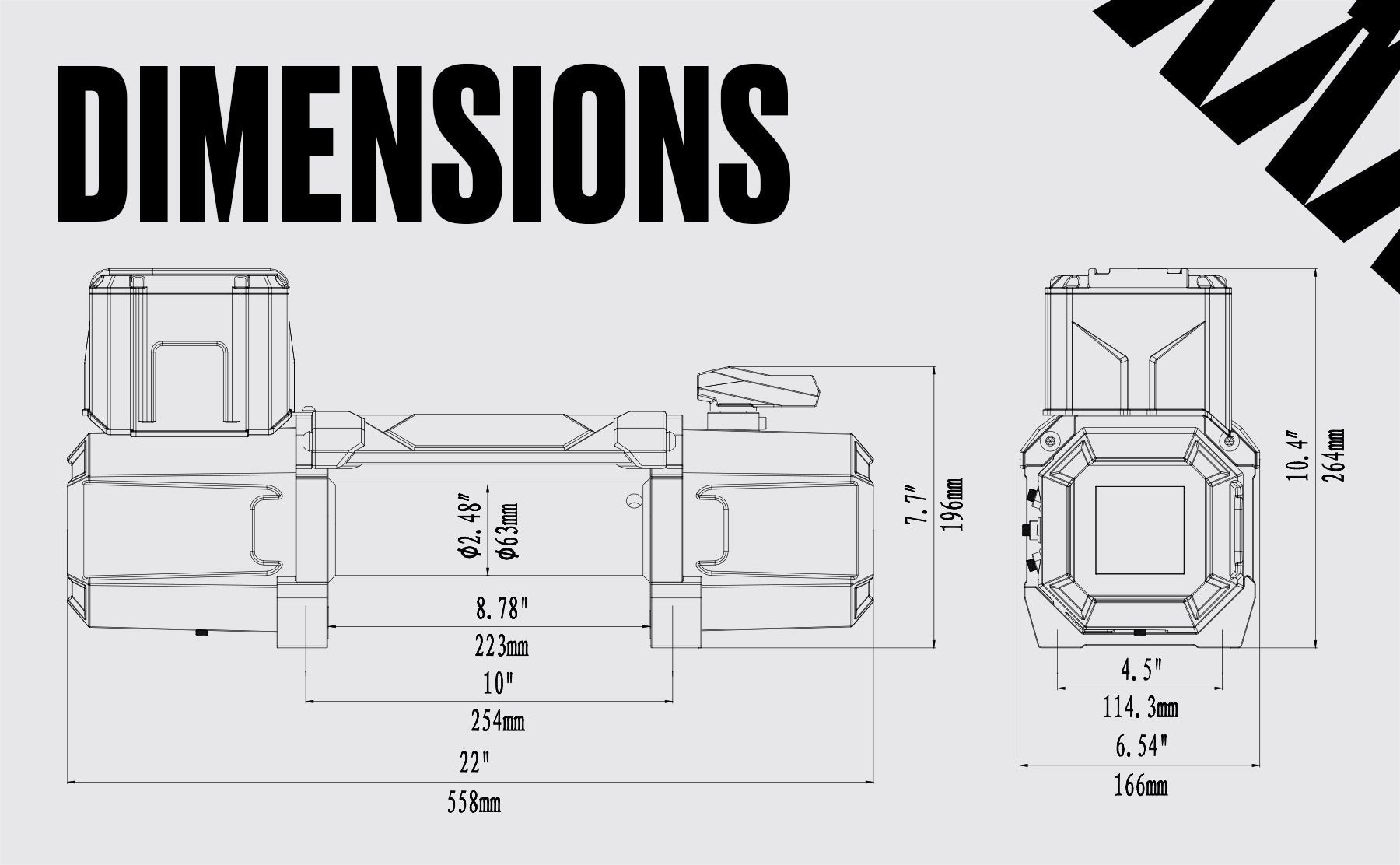

Drum Size (Dia x L) Ø2.48 “×8.54 “ (Ø63mm×217 mm)
Cable Material Steel
Cable – Dia x L Steel: Ø0.40”×82 ‘ (Ø10.2mm×25m)
Mounting Pattern 10”x 4.5” (254mmx114.3mm) (4-M10)

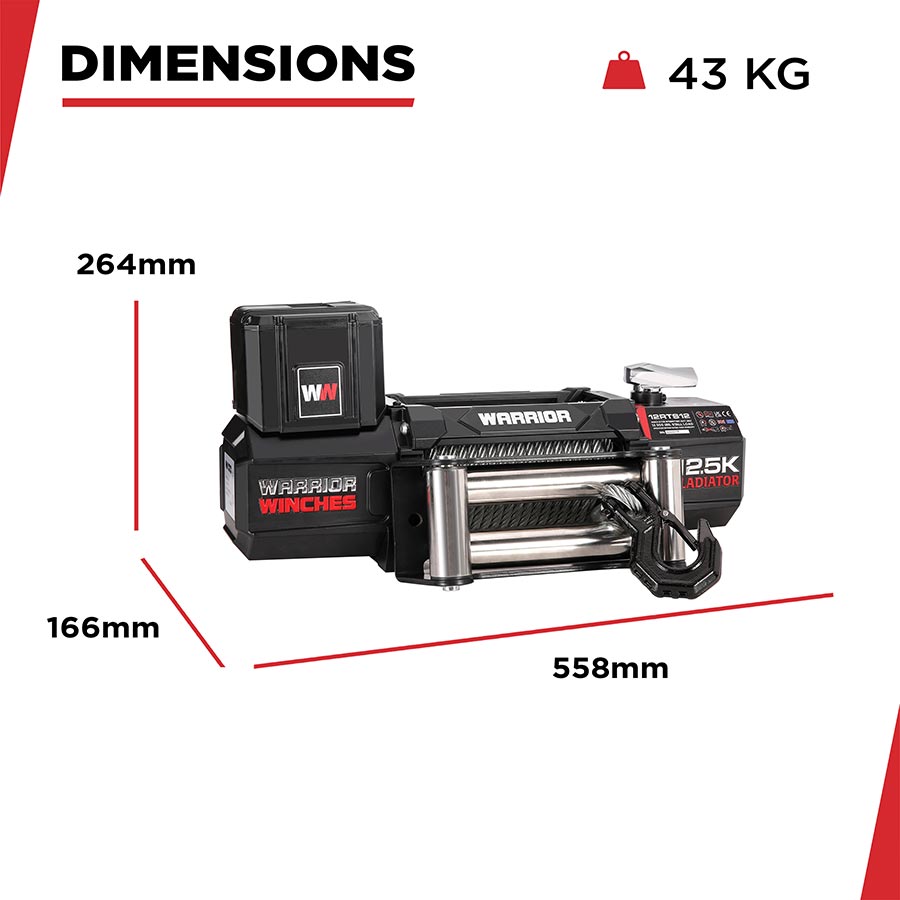

Dimensions 22”×6.5”×10” (558 mm ×166mm ×264mm)
Net Weight Lbs (Kg) Steel: 94.7 Lbs (43Kg)
Certification CE



Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft(m)
1 12500(5670)15.1(4.6)
2 9775(4434)34.1(10.4)
3 8000(3629)57.7(17.6)
4 6800(3084)82(25)
Line Pull
lbs (kgs)		 Line Speed 12v
ft/min (m/min)		 Amp Draw
12v
0 27.9(8.5)45
6000(2722)11.5(3.5) 200
8000(3629) 8.2(2.5) 240
10000(4536) 5.9(1.8)300
12500(5670) 4.2(1.3) 380

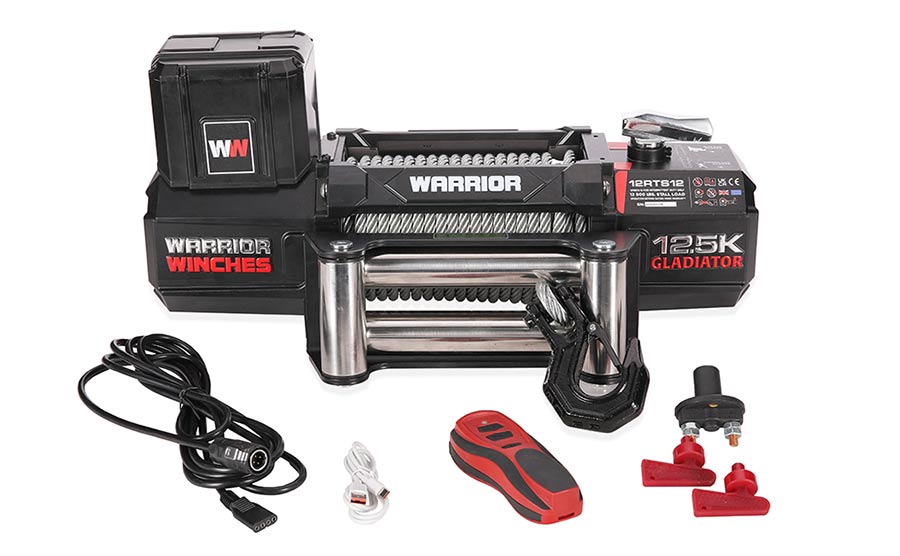

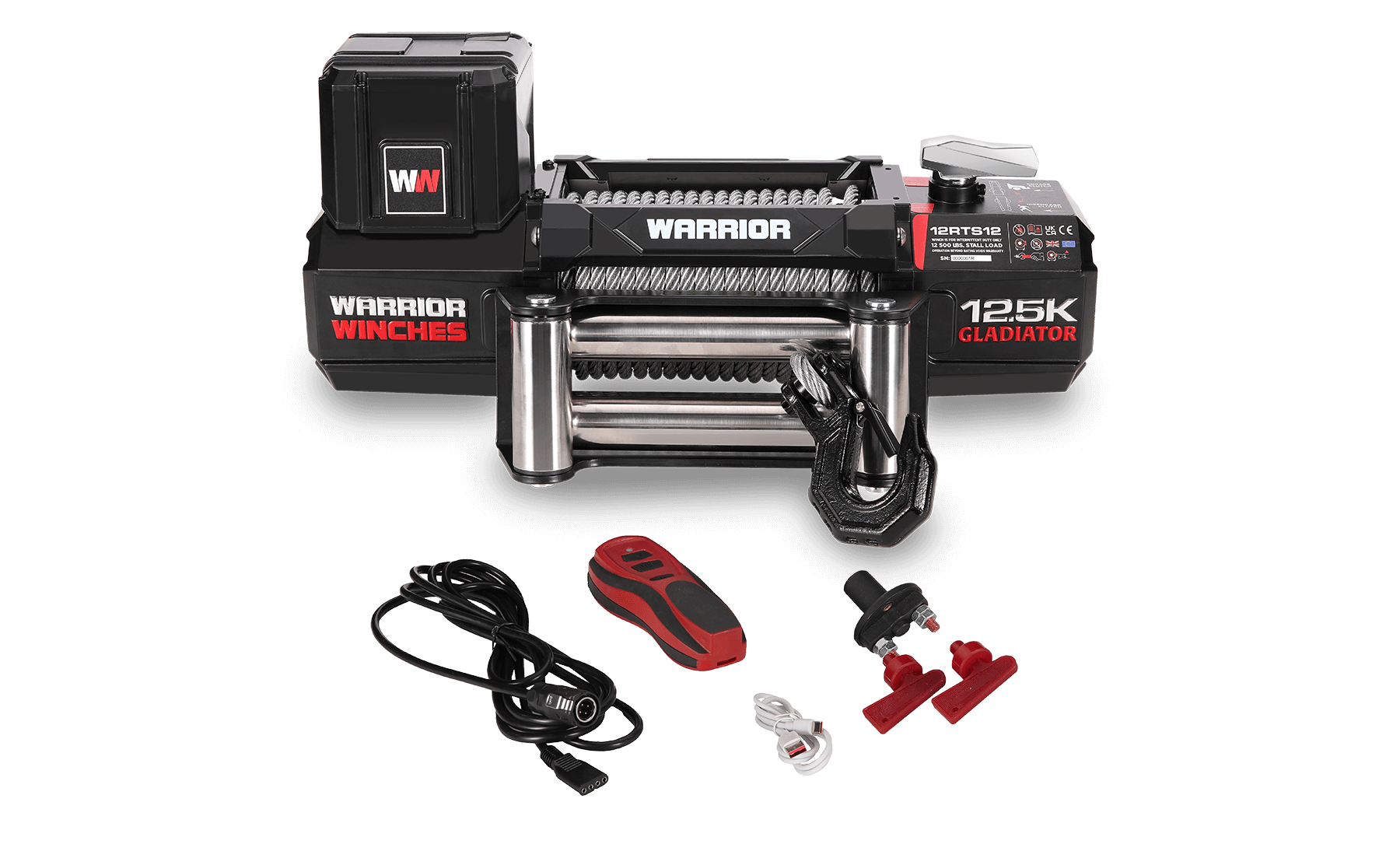

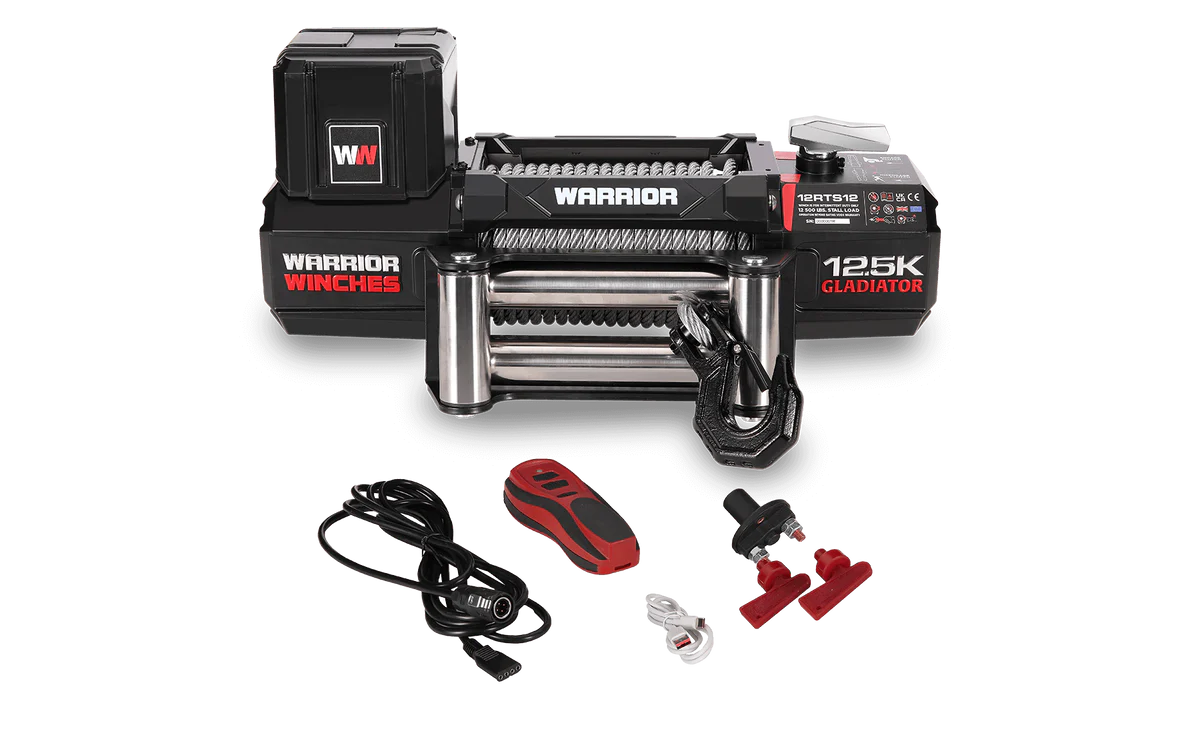

What's in the box:

  • Gladiator Winch
  • 2in1 Rechargeable Remote (Wired and wireless)
  • Roller Fairlead
  • Steel Rope
  • Removable Heavy Duty Hook
  • Heavy Duty Battery Leads
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download
