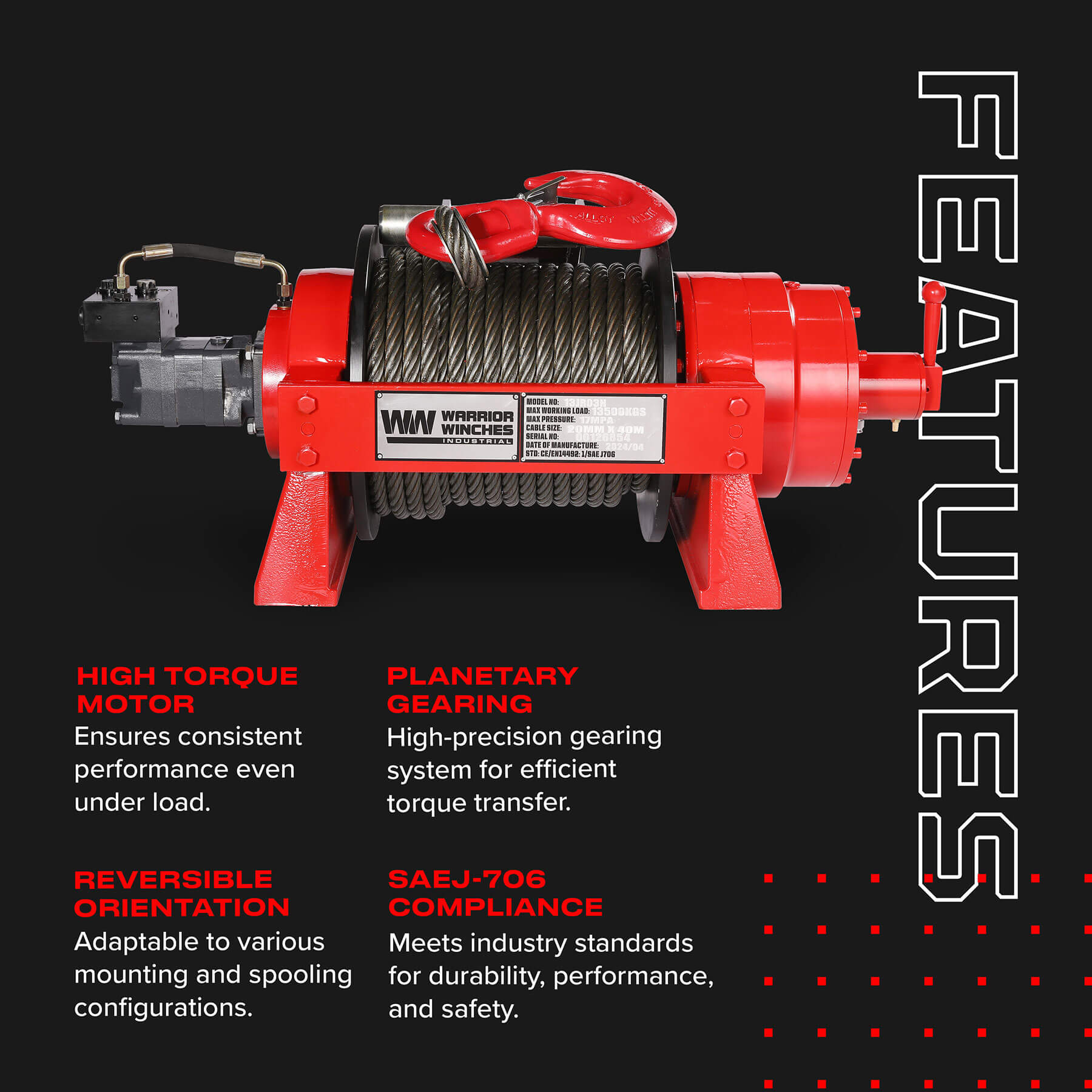

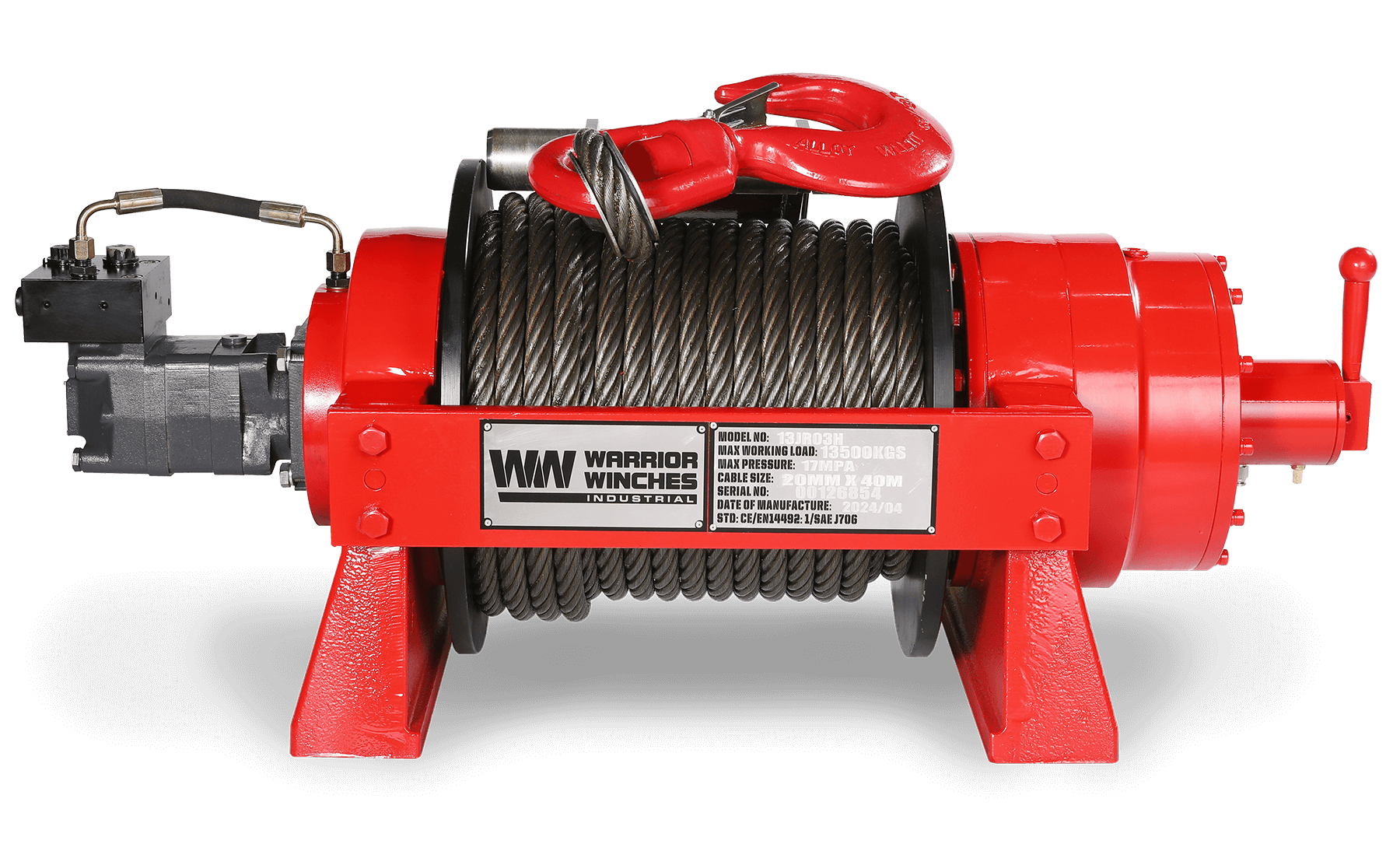

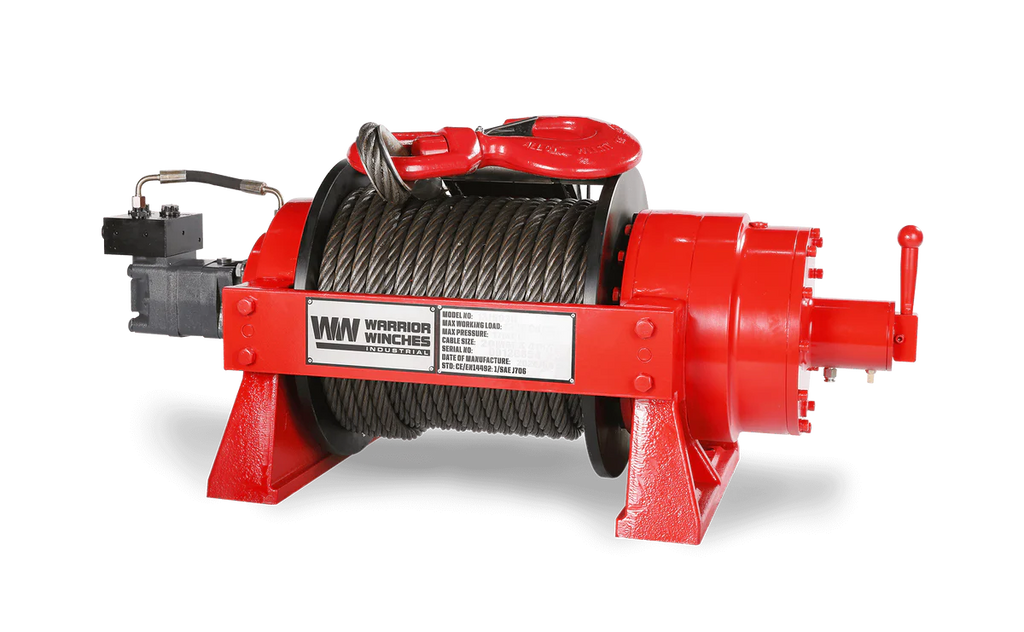

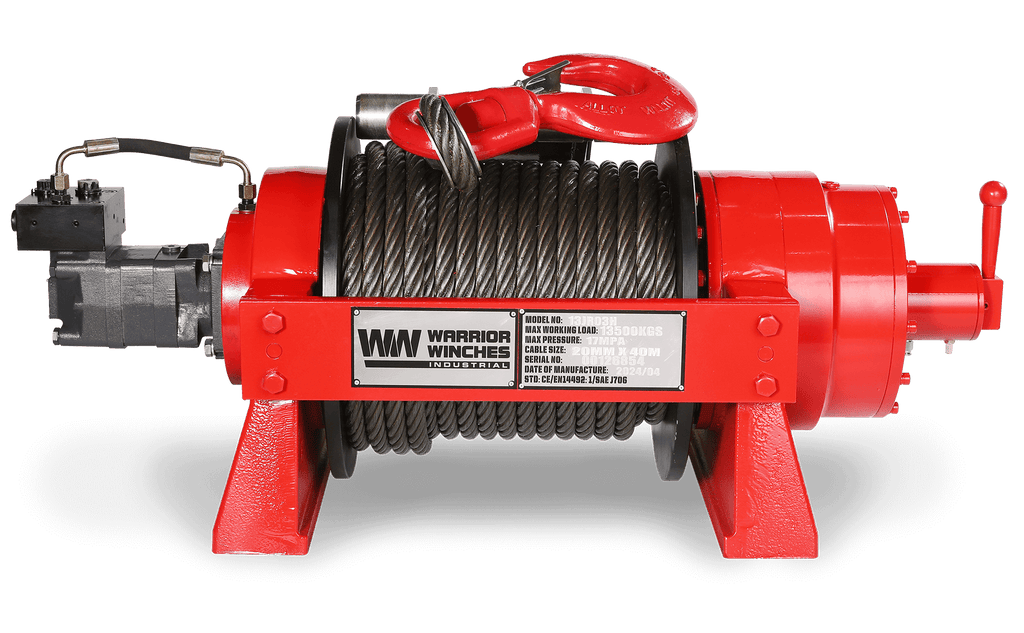

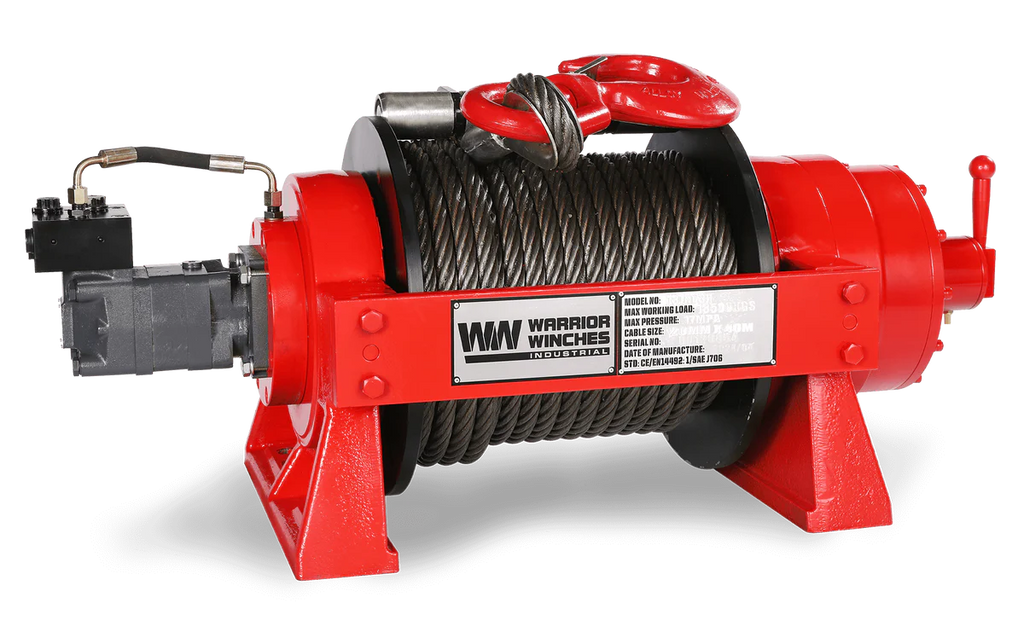

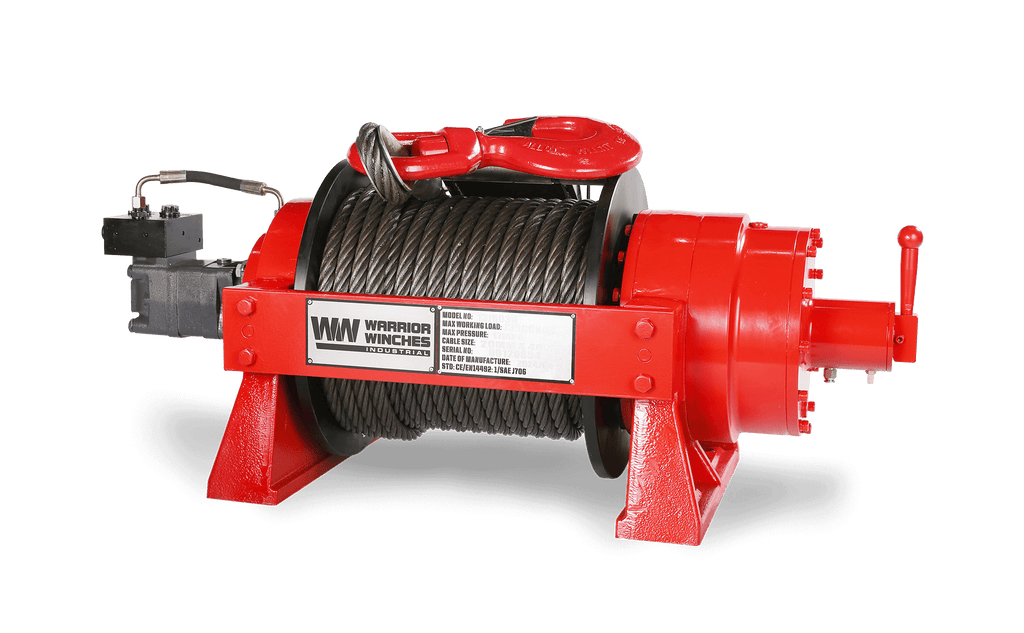

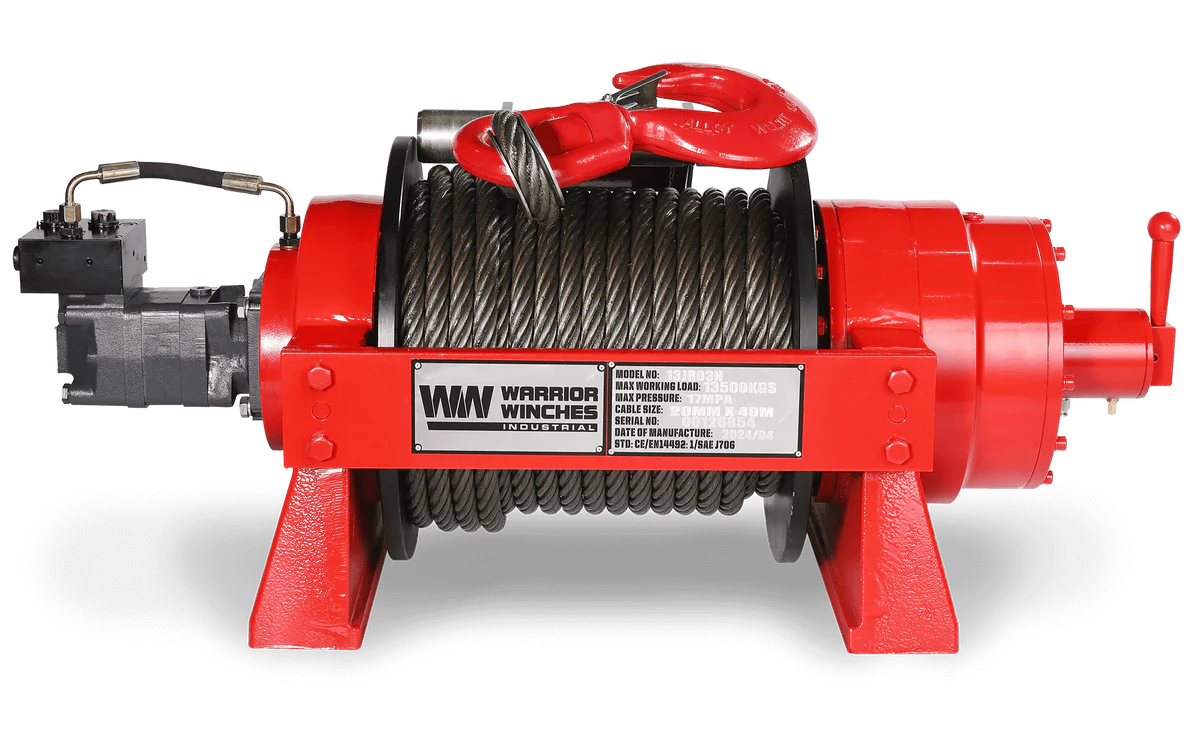

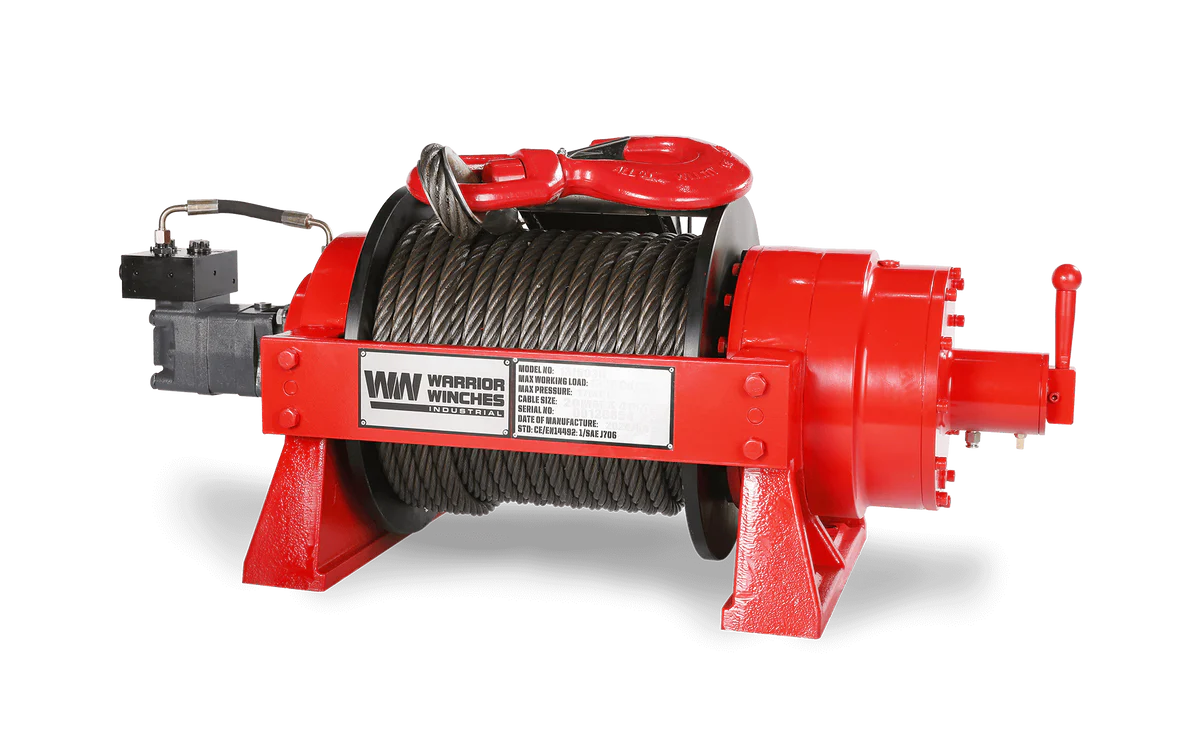

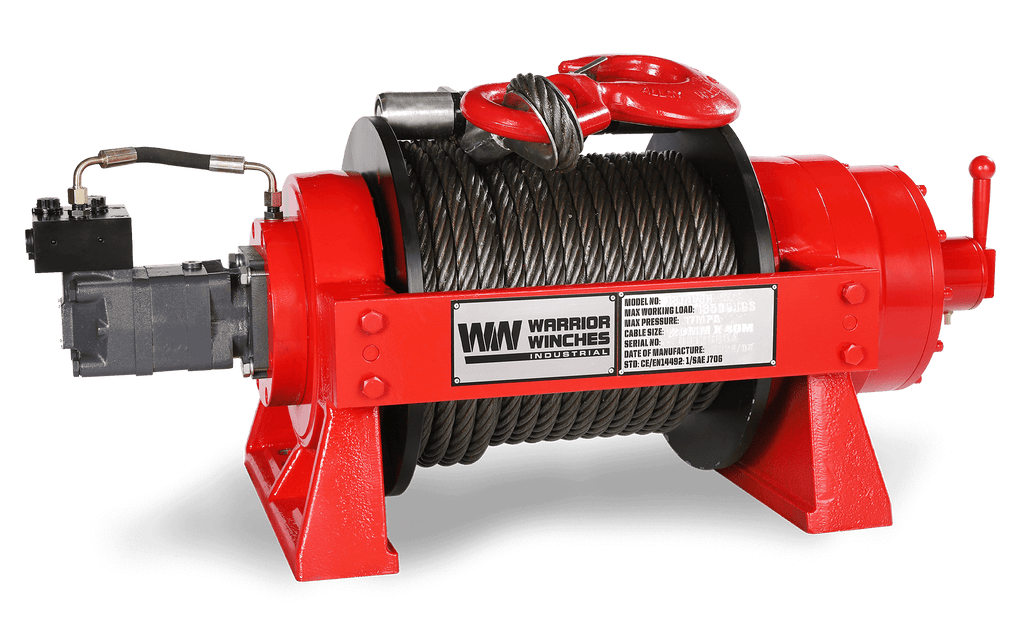

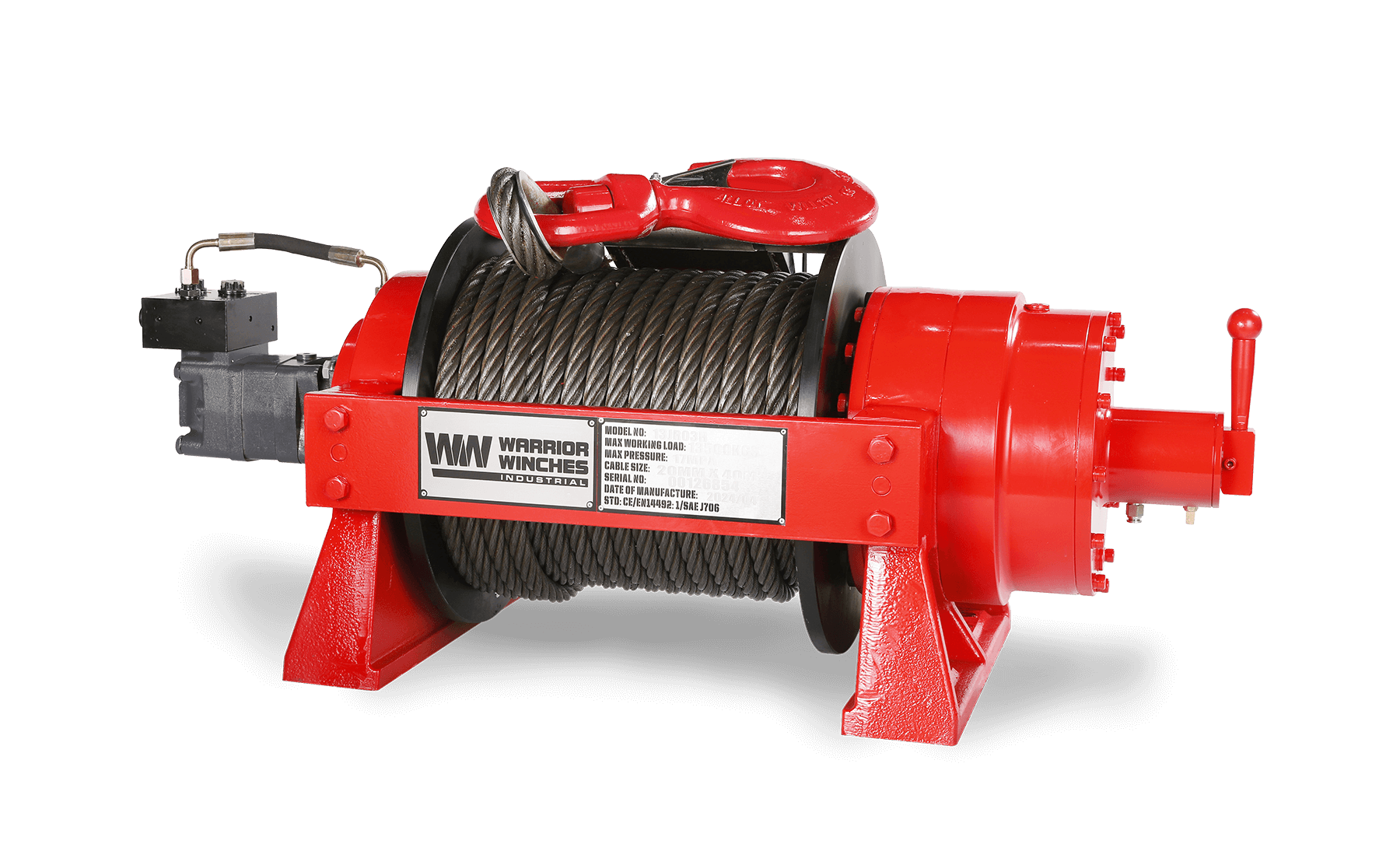

Durable and space-efficient, the JR series stands as a robust line of hydraulic winches meticulously engineered and proven for the most demanding tasks. These winches range in capacity from 13 tonnes to 30 tonnes, and they are carefully crafted to adhere to the SAEJ-706 Standard.

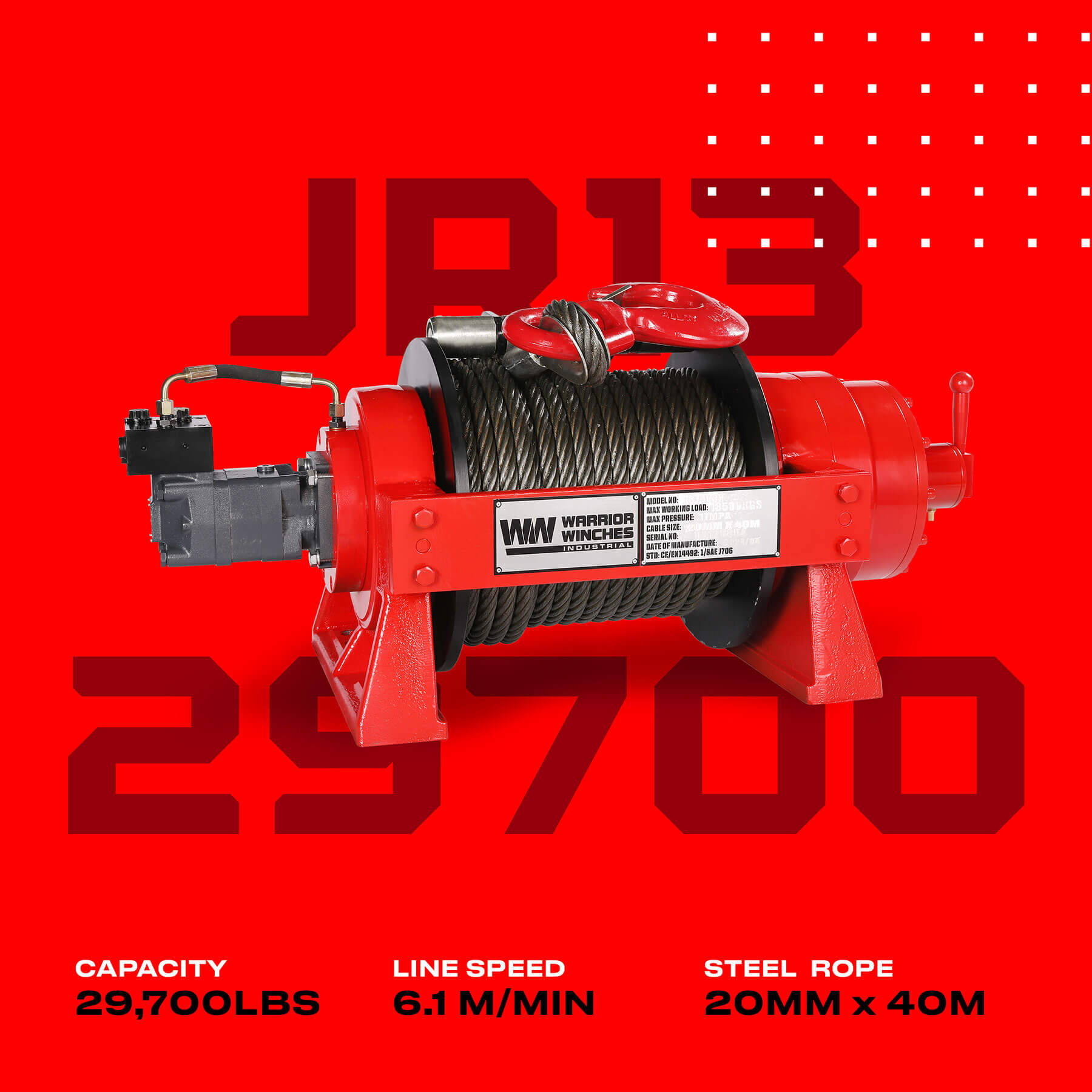

Rated Line Pull | 29700 lbs |
Gearing | 37.8:1 |
Clutch | Air Clutch |
Braking Action | Wet-type Hydraulic |
Drum Size (Dia x L) | Ø7.46 “ × 13.39 “ (Ø189.5mm×340 mm) |
Cable Material | Steel |
Cable – Dia x L | Ø0.79 “×131 FT(Ø20mm×40m) |
Mounting Pattern | 20.55” × 7.09 × 11.02” 522mm ×180 × 280mm 8- M20 |

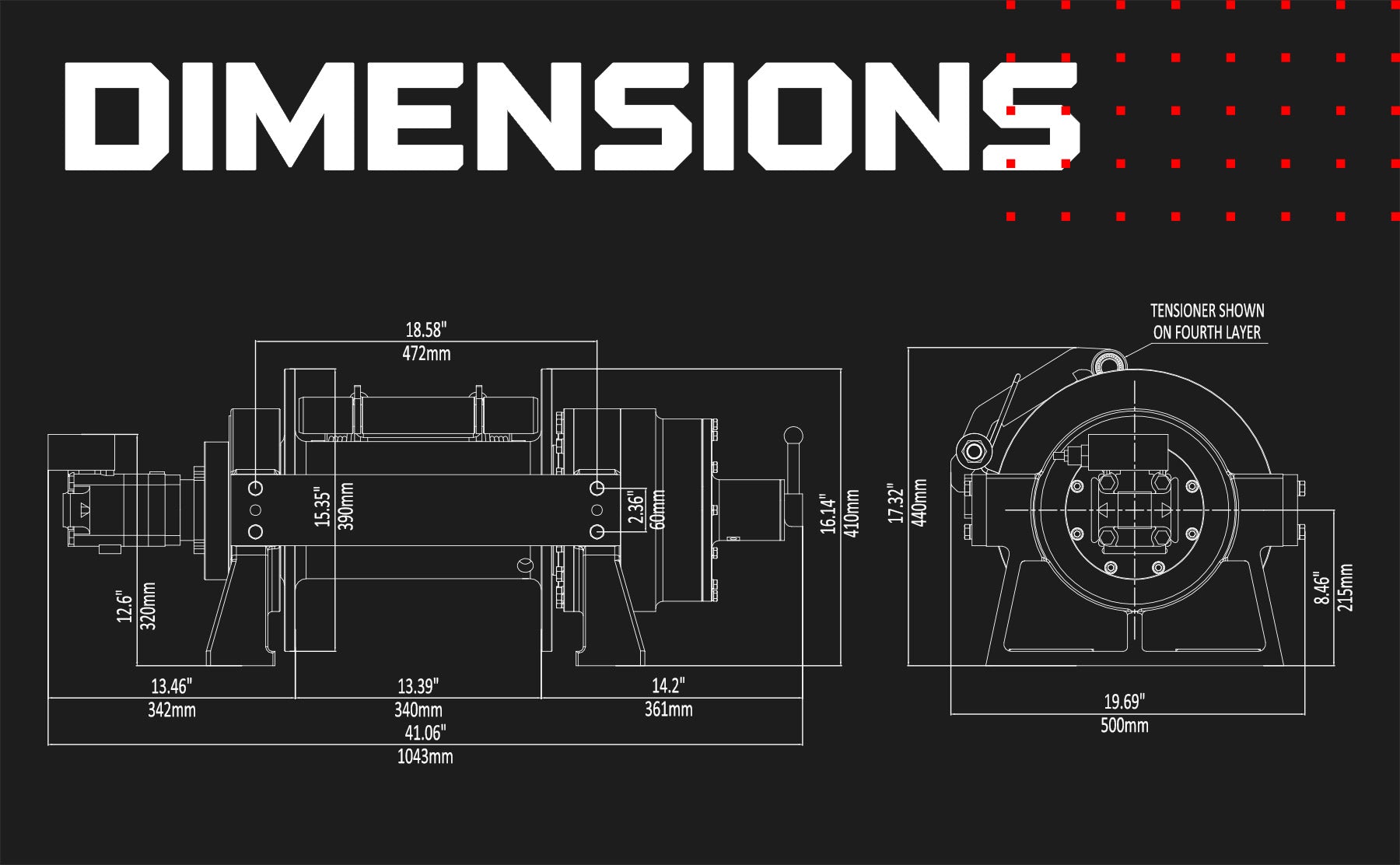

Dimensions | 41.06” × 19.69” × 16.14” 1043mm × 500mm × 410mm |
Weight | 771.6 lbs (350 kg) |
Max Flow | 19.8 G/min (75 L/min) |
Max Pressure | 3600 psi (248 Bar) |
Certification | SAEJ-706 |
Line pull lbs (kgs) | Pressure Mpa(Psi) |
---|---|
0 | 4 (580.2) |
15000 (6804) | 10 (1045.4) |
20000 (9072) | 15 (2175.6) |
25000 (11340) | 17 (2465.6) |
29700 (13500) | 19 (2755.7) |
Flow G/min (L/min) | Line speed ft/min(m/min) |
---|---|
4.0 (15) | 4.3 (1.3) |
10.6 (40) | 10.8 (3.3) |
13.2 (50) | 13.5 (4.1) |
15.9 (60) | 15.8 (4.8) |
19.8 (75) | 20.0 (6.1) |
Layer of wire rope | Rated line pull lbs(kgs) | Total rope on drum ft (m) |
---|---|---|
1 | 29700 (13500) | 29.5(9) |
2 | 24950 (11300) | 65.6(20) |
3 | 21500 (9750) | 108.3(33) |
4 | 18900 (8570) | 131(40) |
What's in the box:

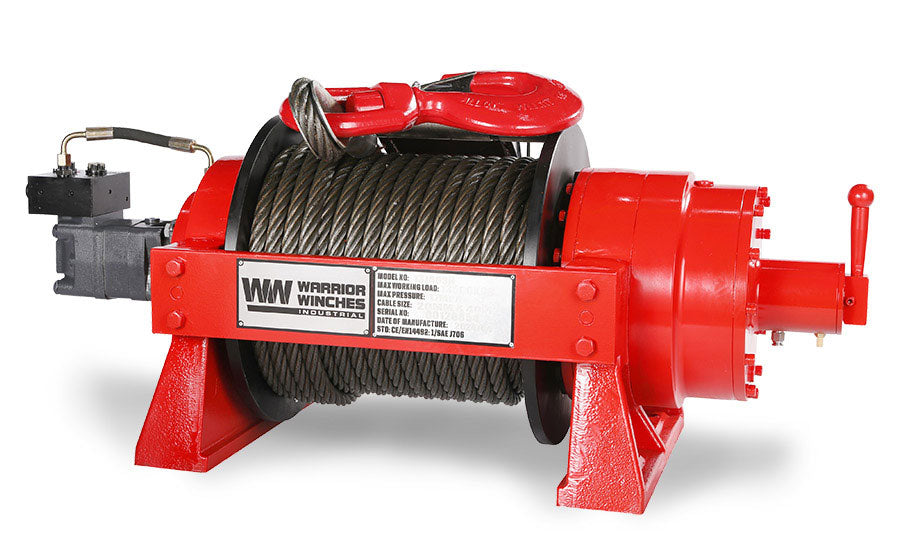

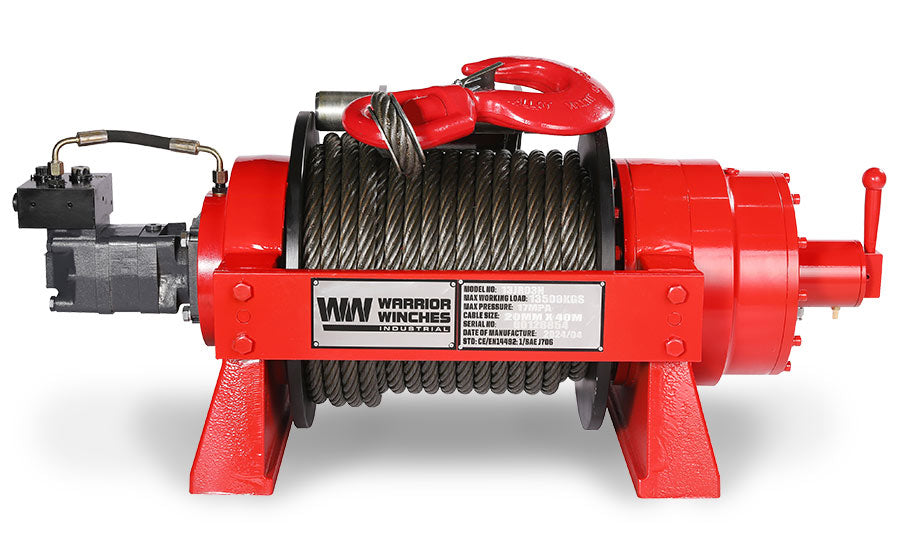

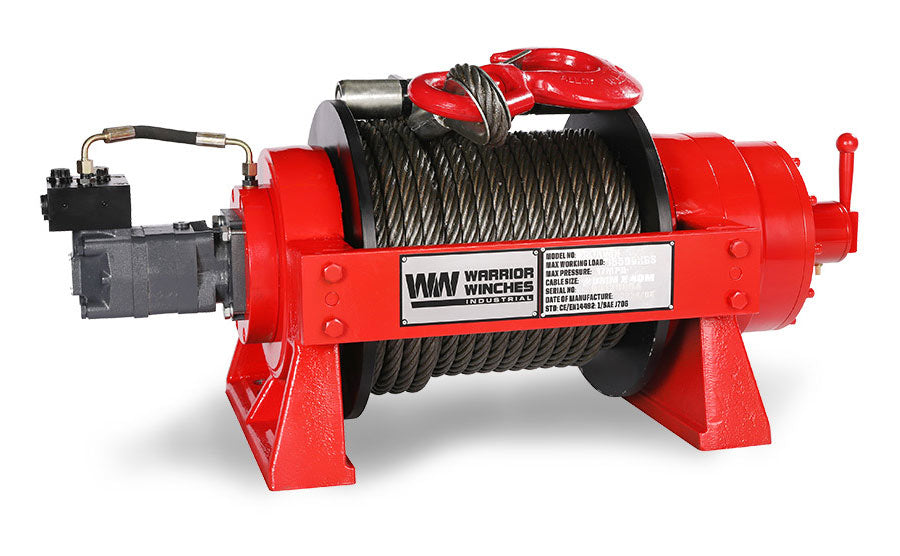

- JR Hydraulic Winch
- Steel Rope and Heavy Duty Hook
- Manual/Air Clutch

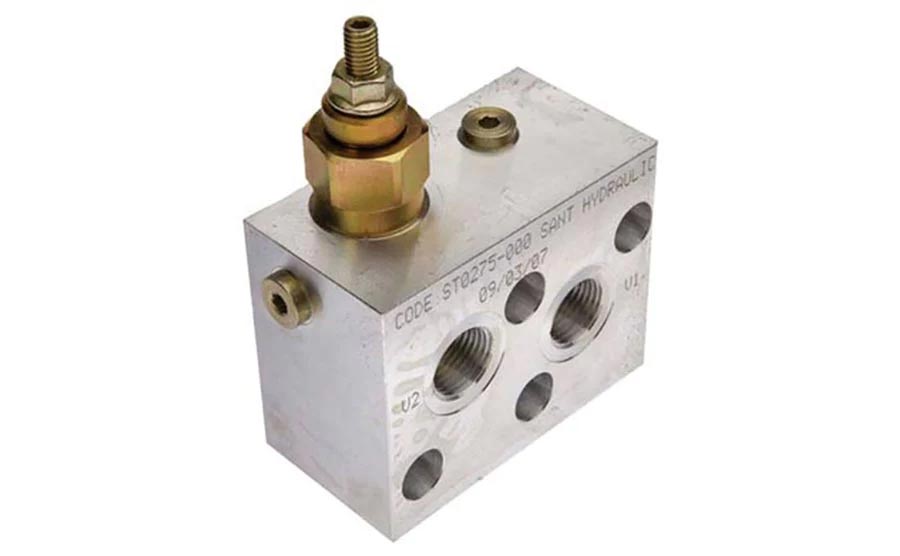

- Balance Valve

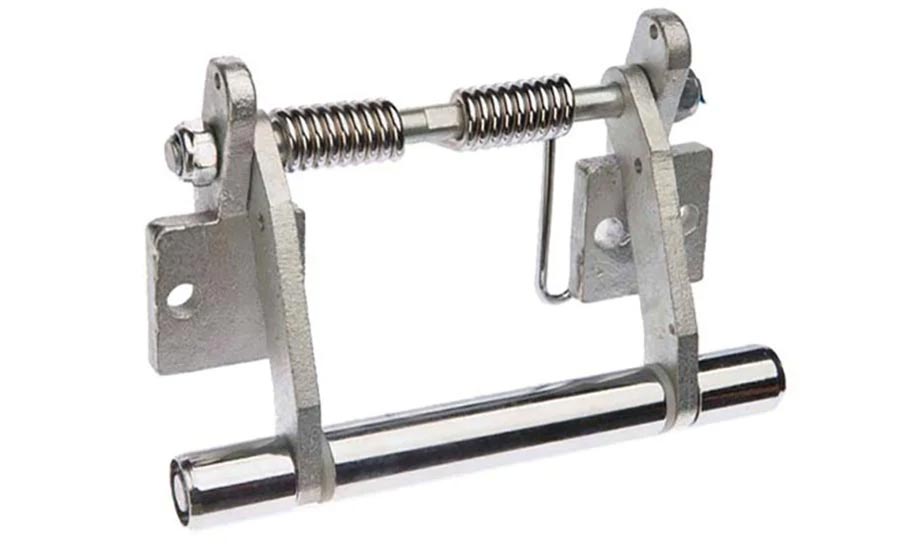

- Tensioner
- Operating Manual
