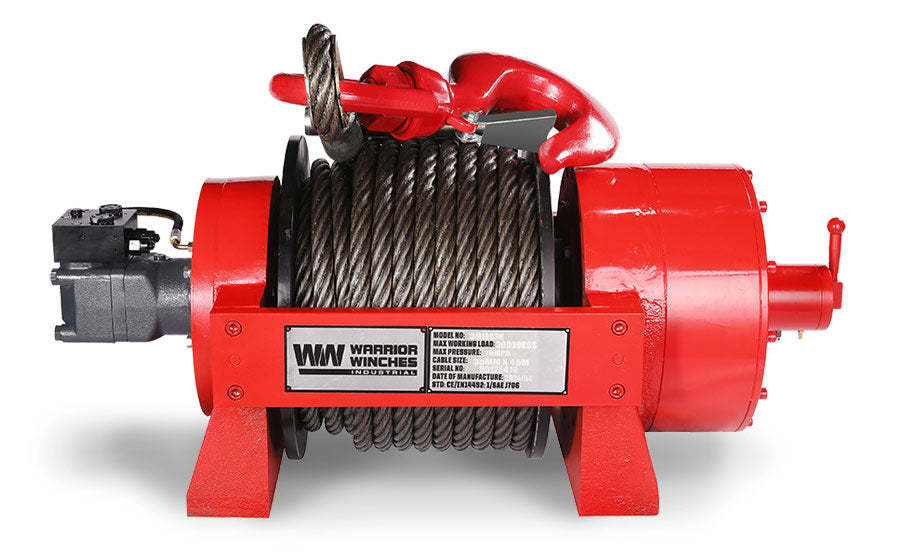

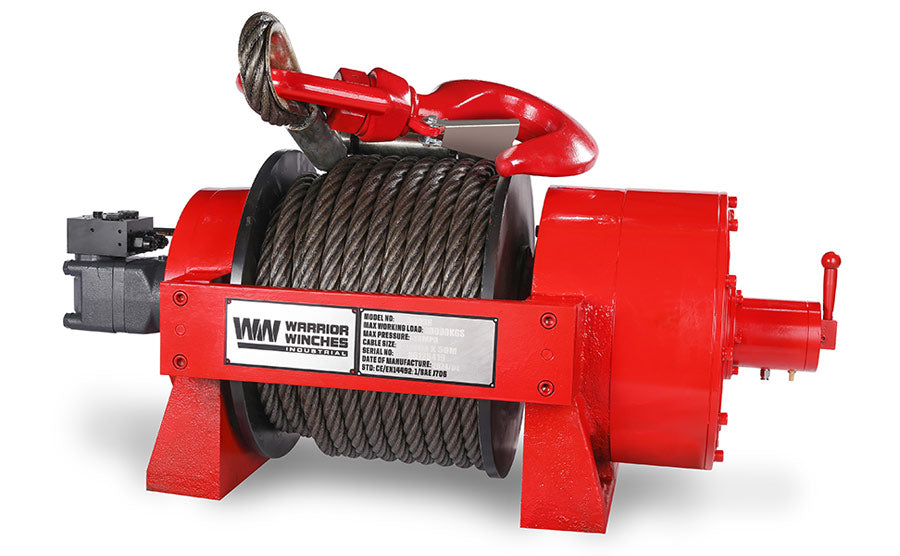

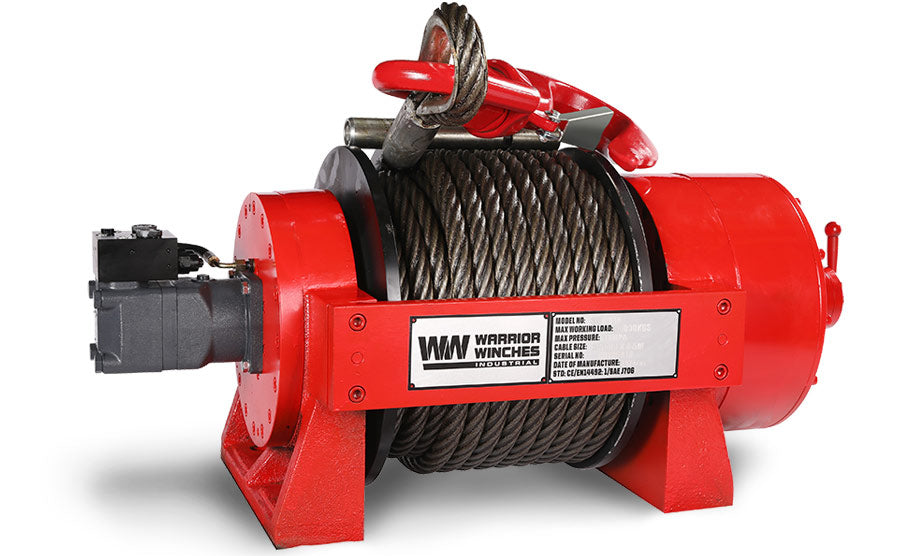

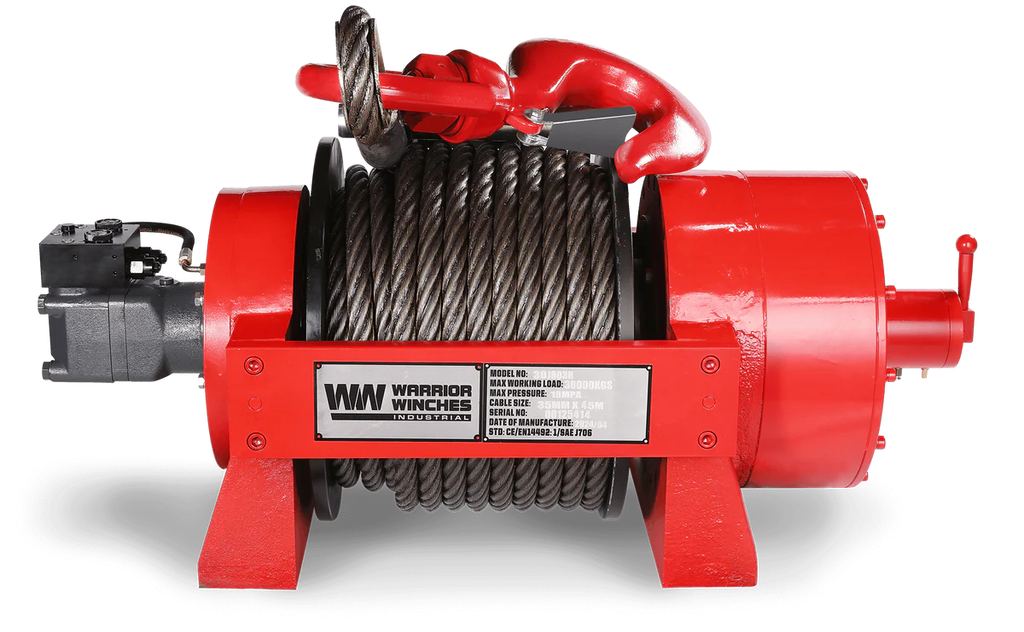

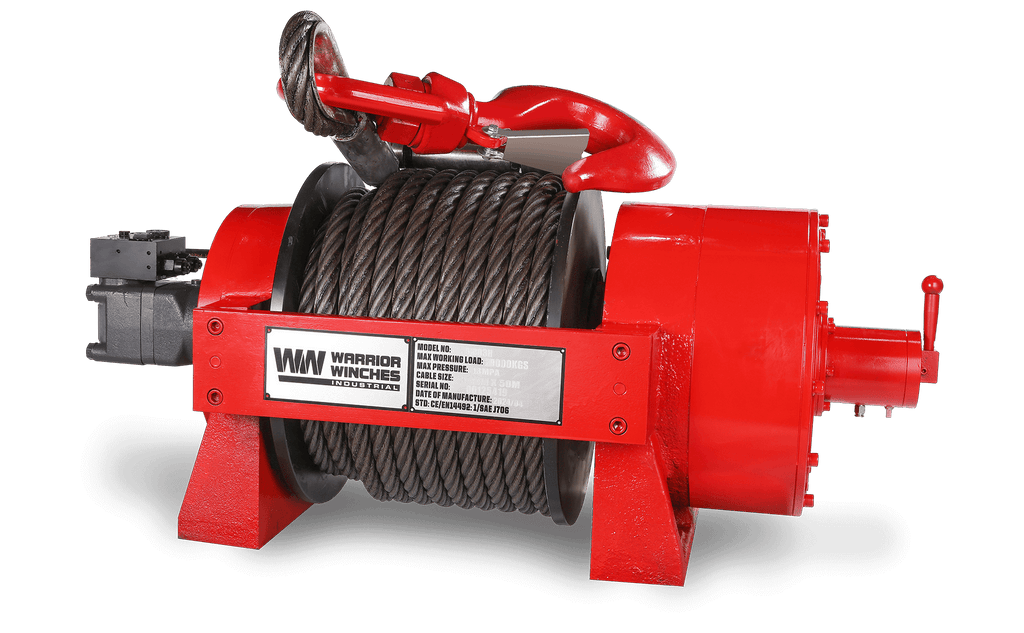

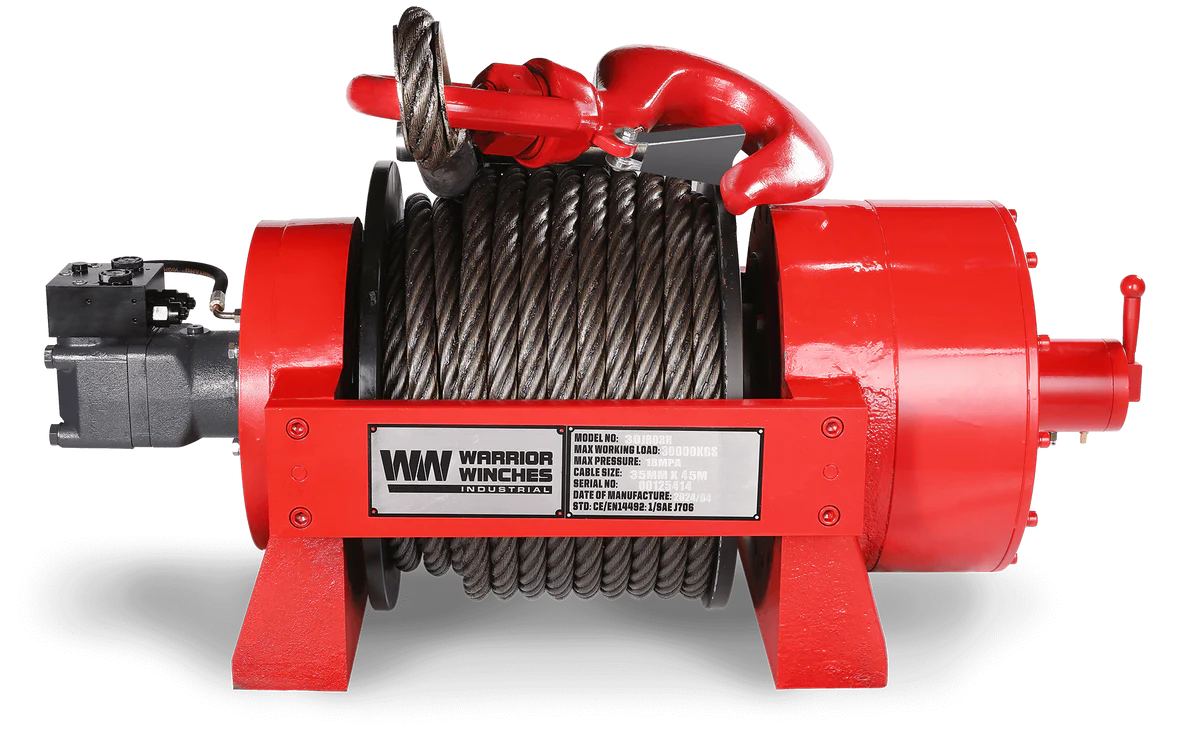

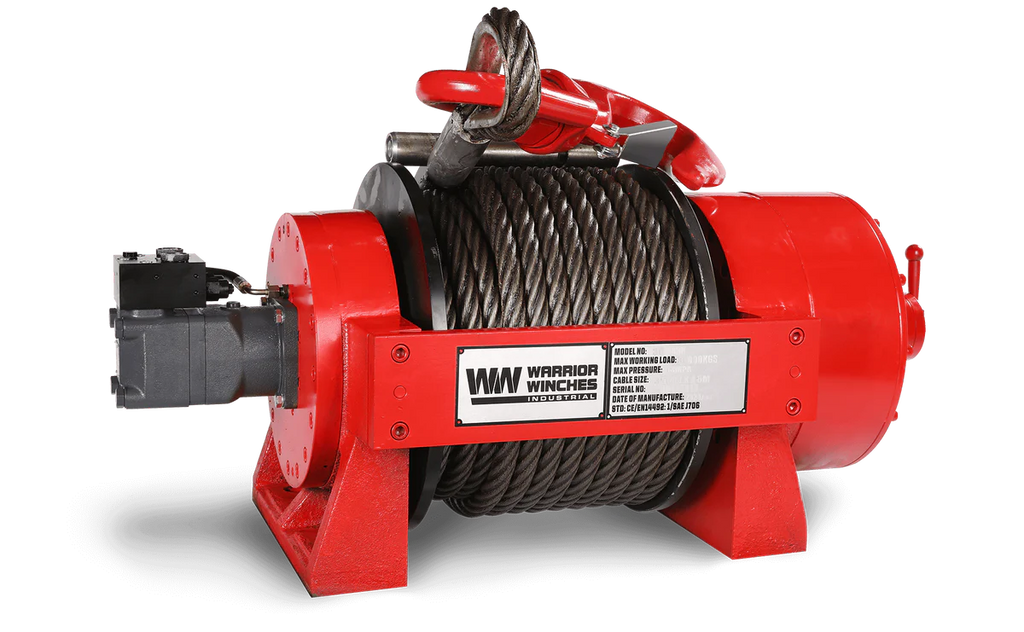

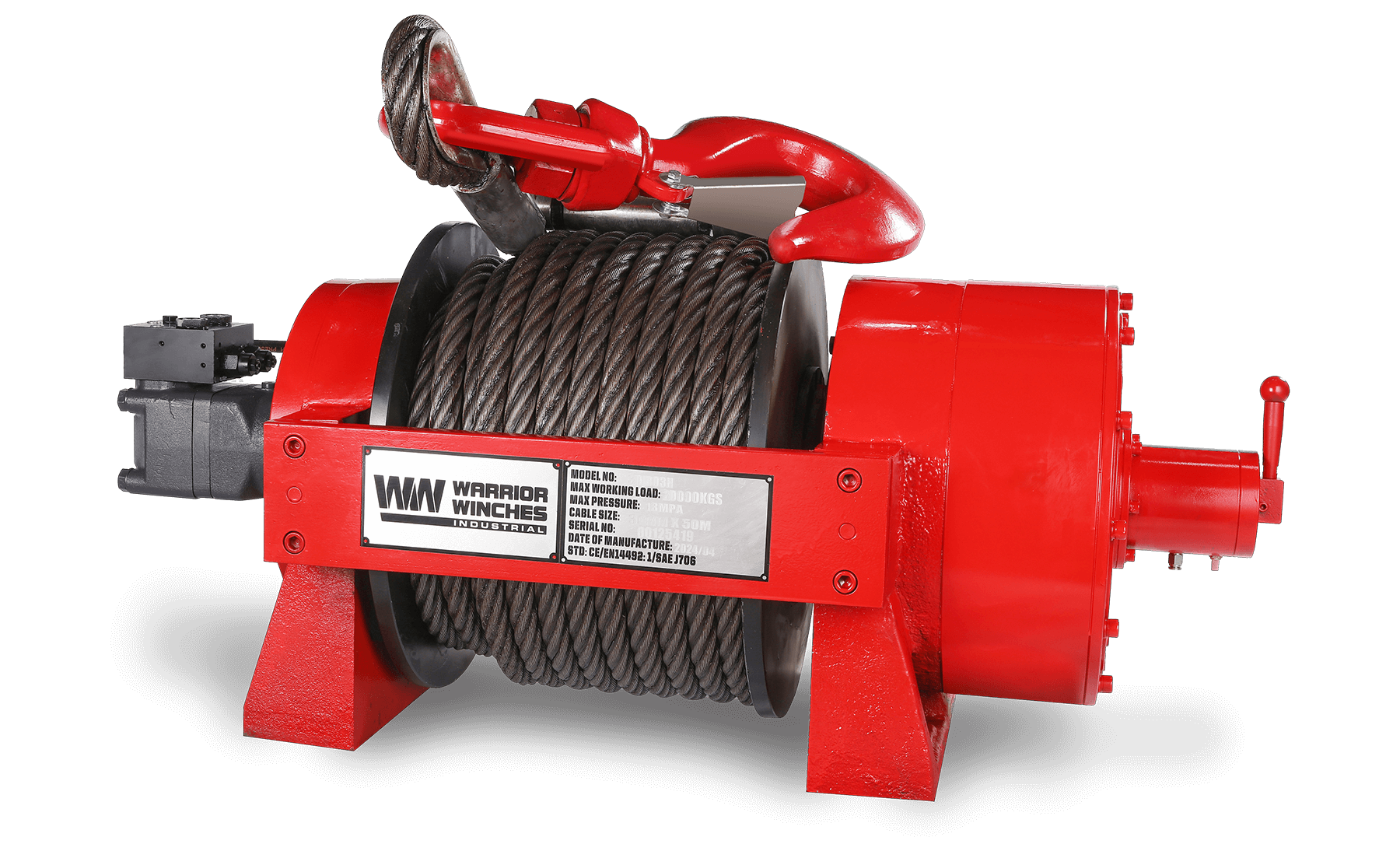

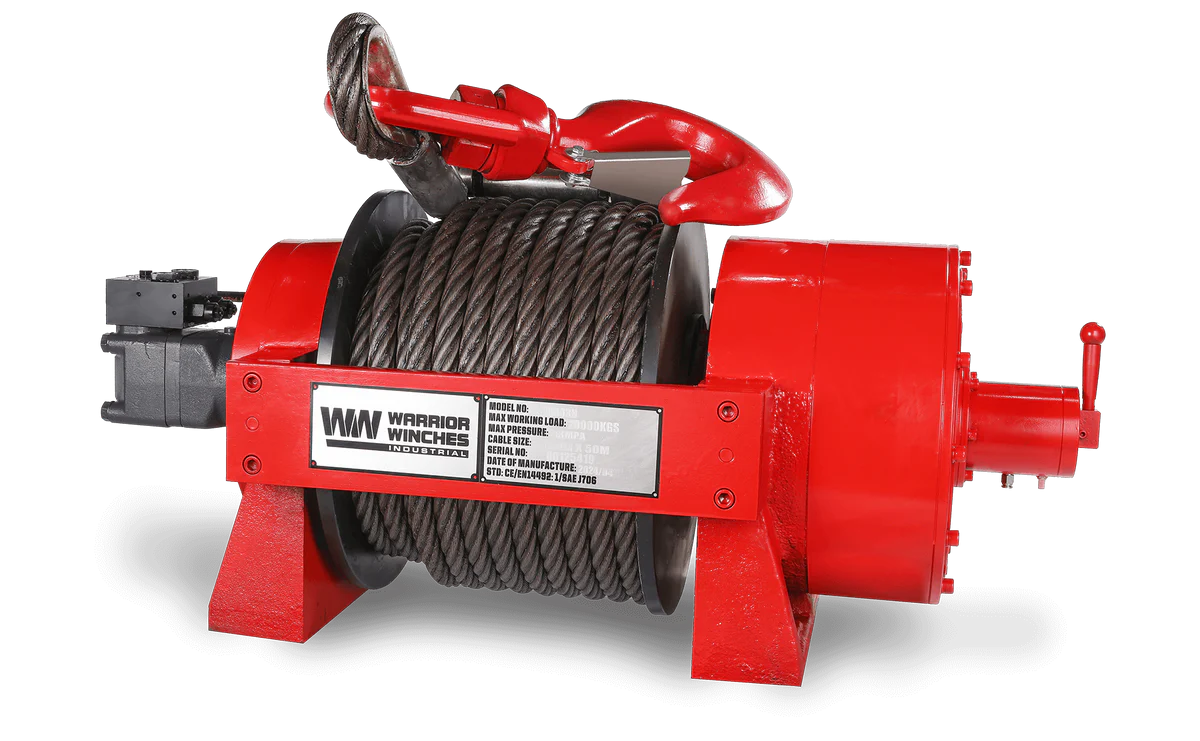

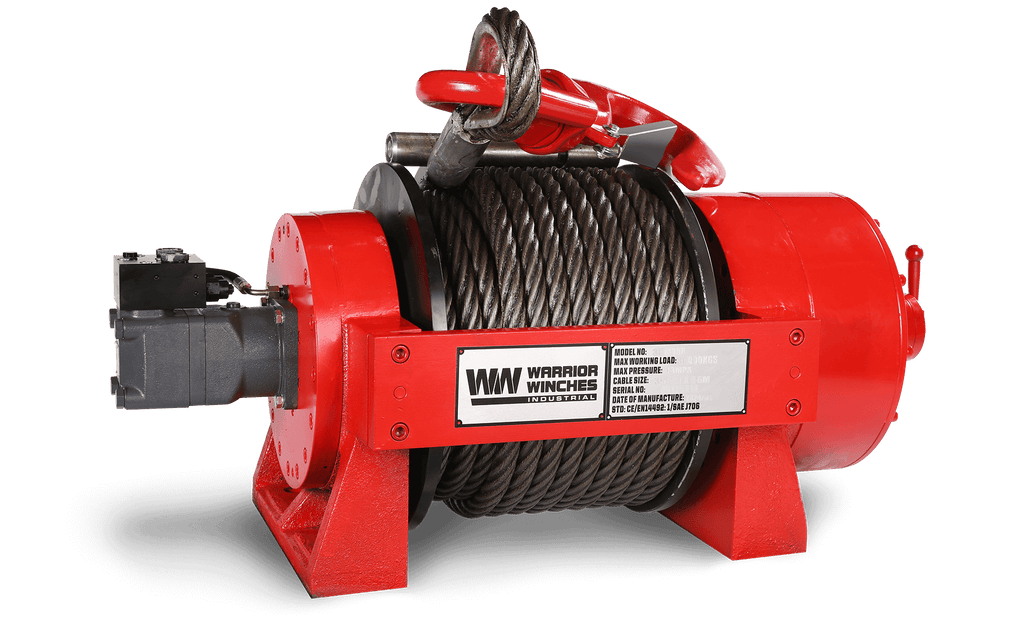

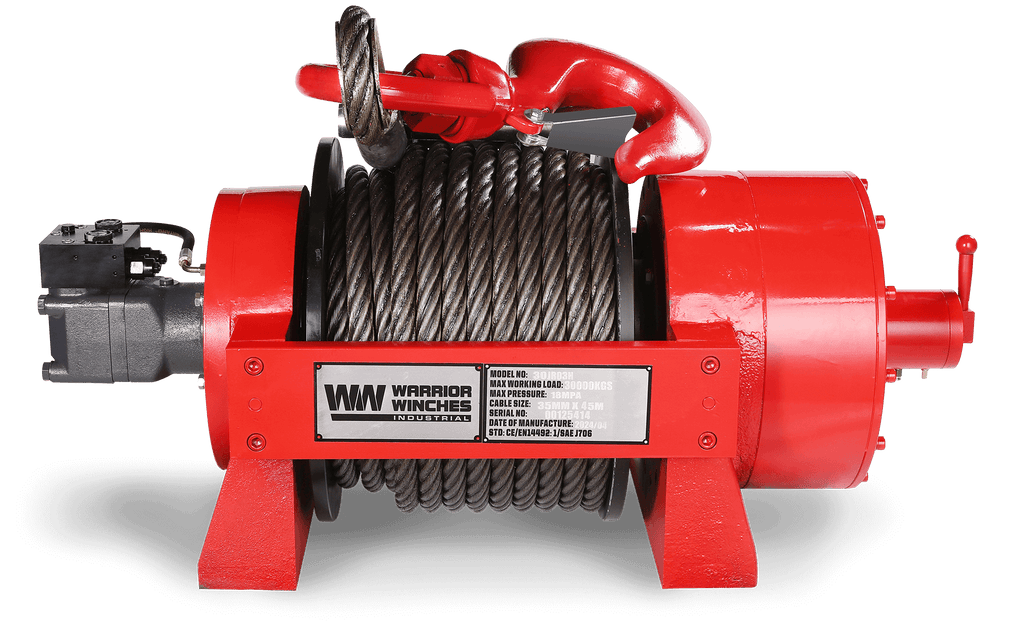

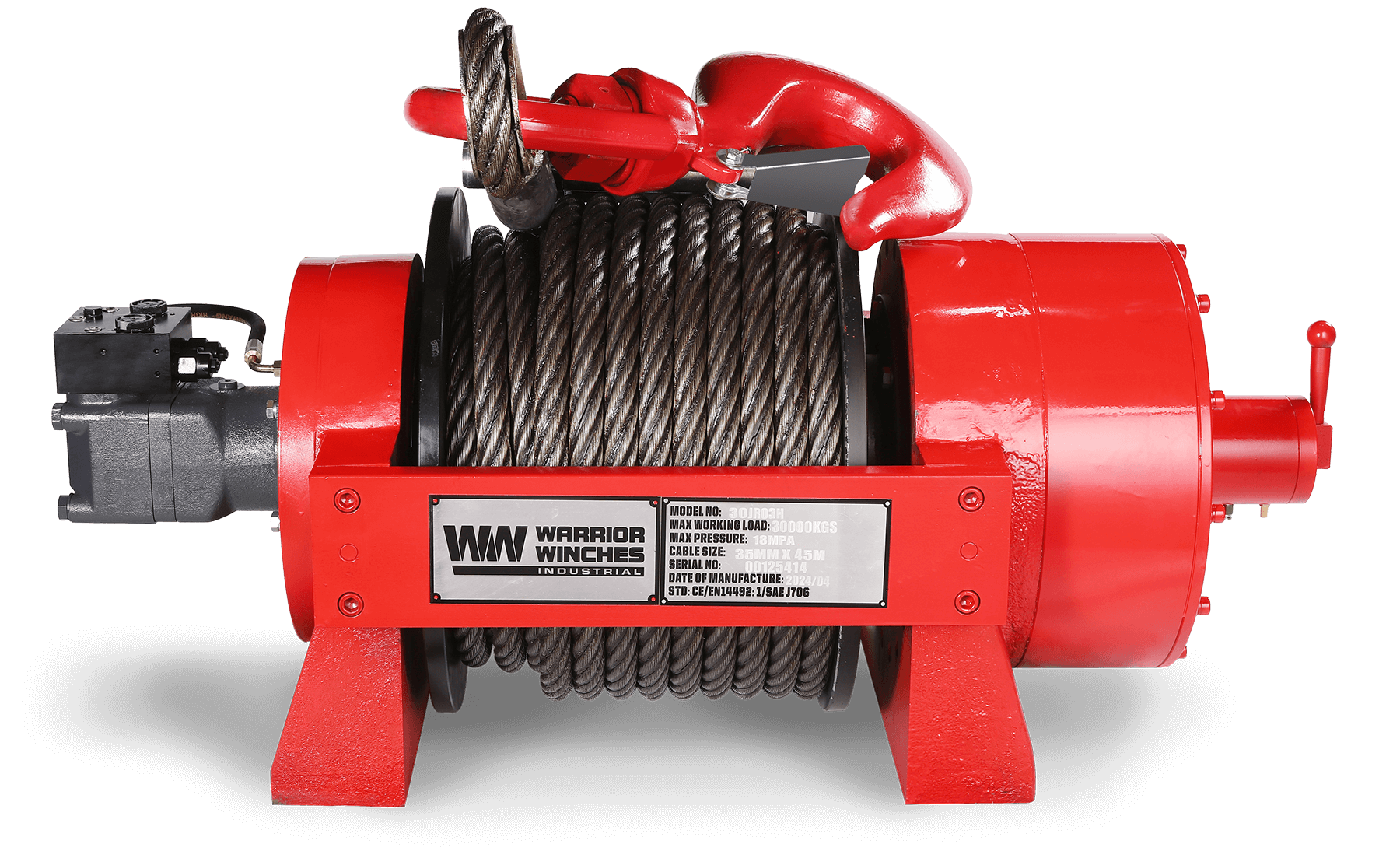

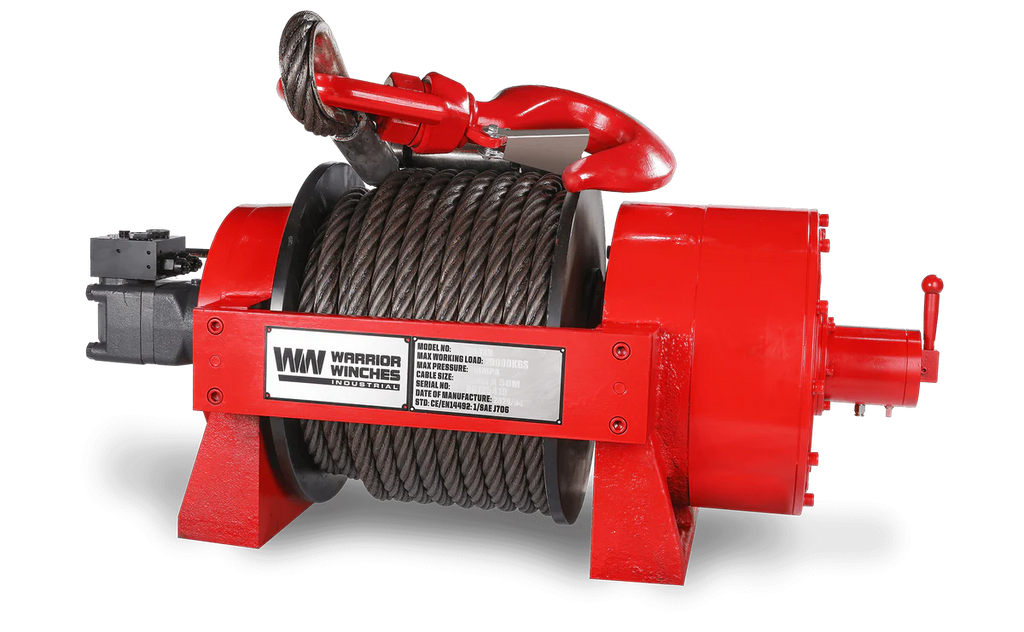

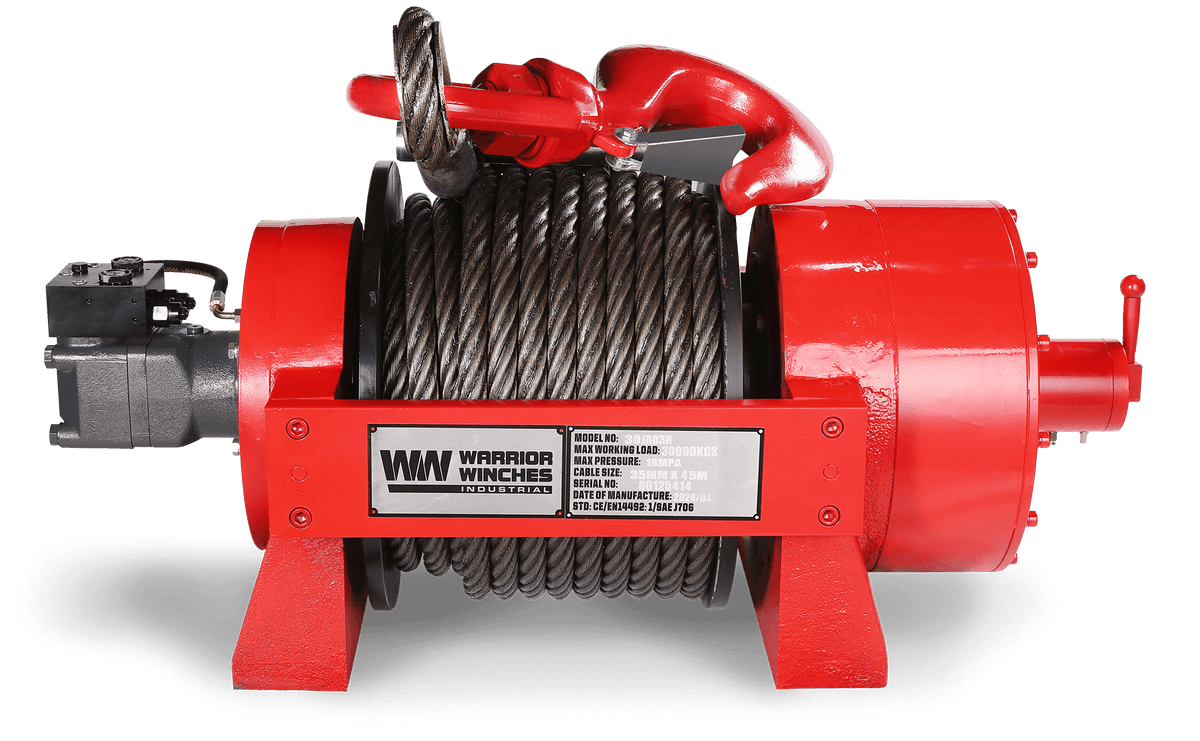

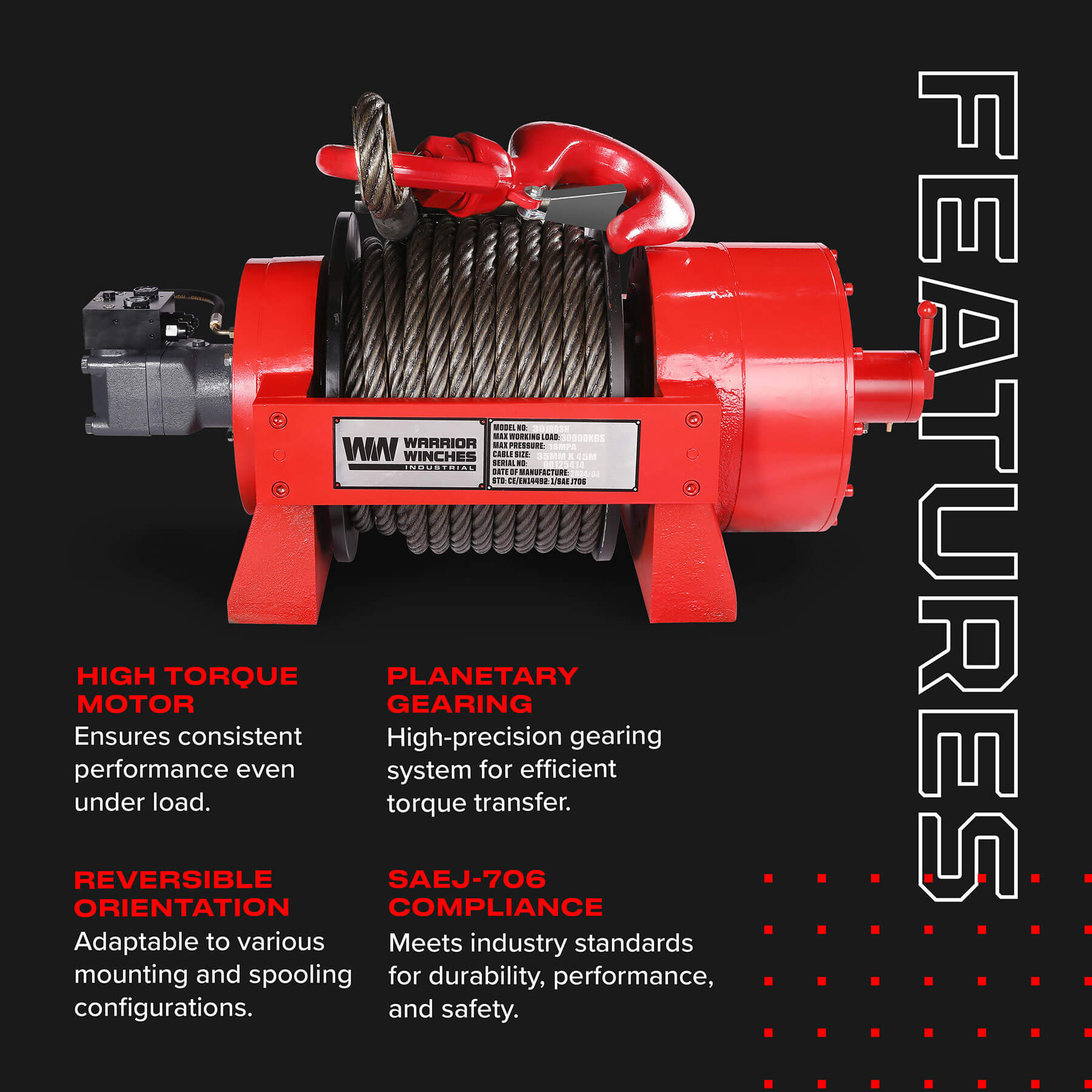

Durable and space-efficient, the JR series stands as a robust line of hydraulic winches meticulously engineered and proven for the most demanding tasks. These winches range in capacity from 13 tonnes to 30 tonnes, and they are carefully crafted to adhere to the SAEJ-706 Standard.

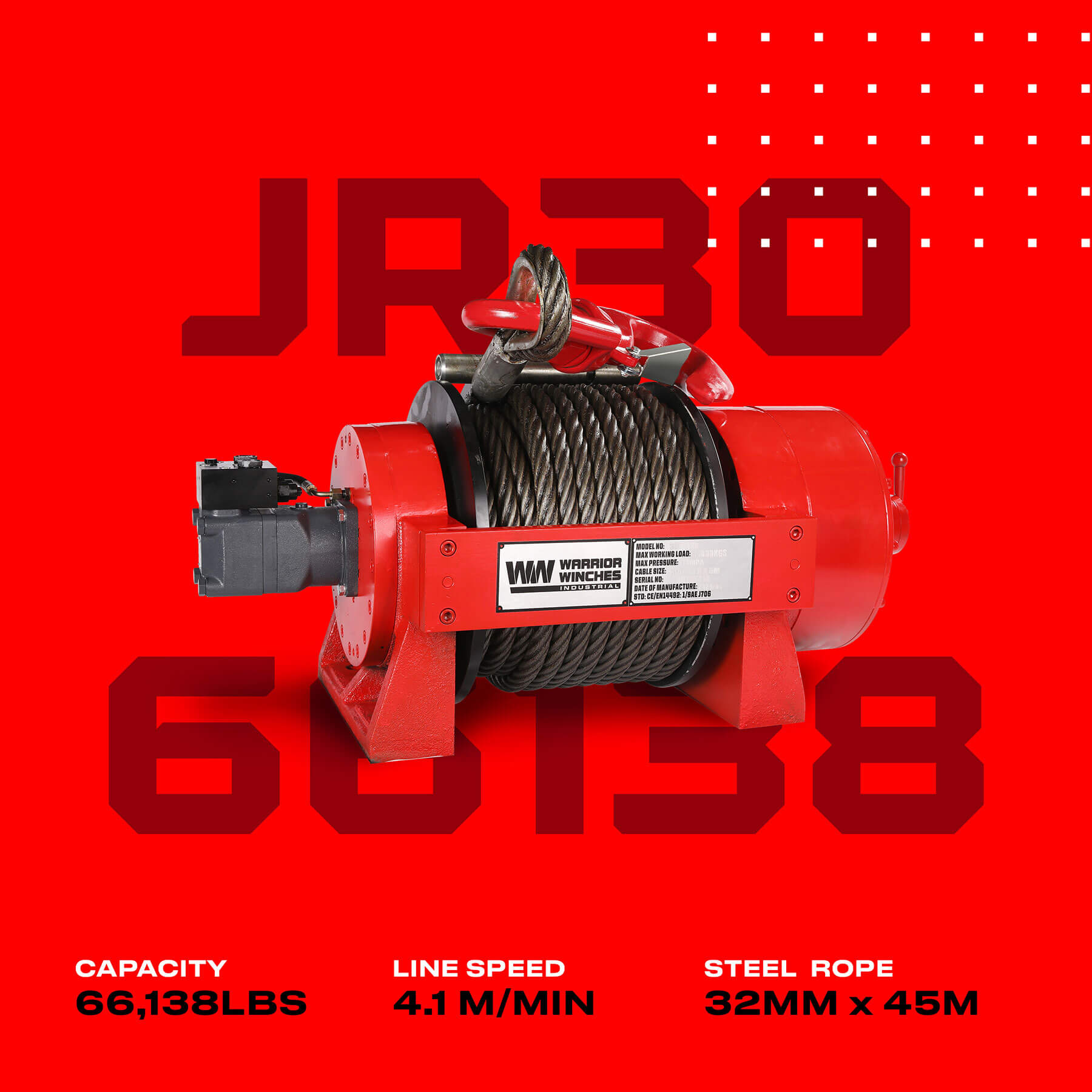

Rated Line Pull | 66000 lbs |
Gearing | 53:1 |
Clutch | Air Clutch |
Braking Action | Wet-type Hydraulic |
Drum Size (Dia x L) | Ø10.63 “ × 14.2 “ (Ø270mm×360 mm) |
Cable Material | Steel |
Cable – Dia x L | Ø1.26 “×147FT(Ø32mm×45m) |
Mounting Pattern | 24” × 6.7 × 12.2” 610mm ×170 × 310mm 8- M27 |

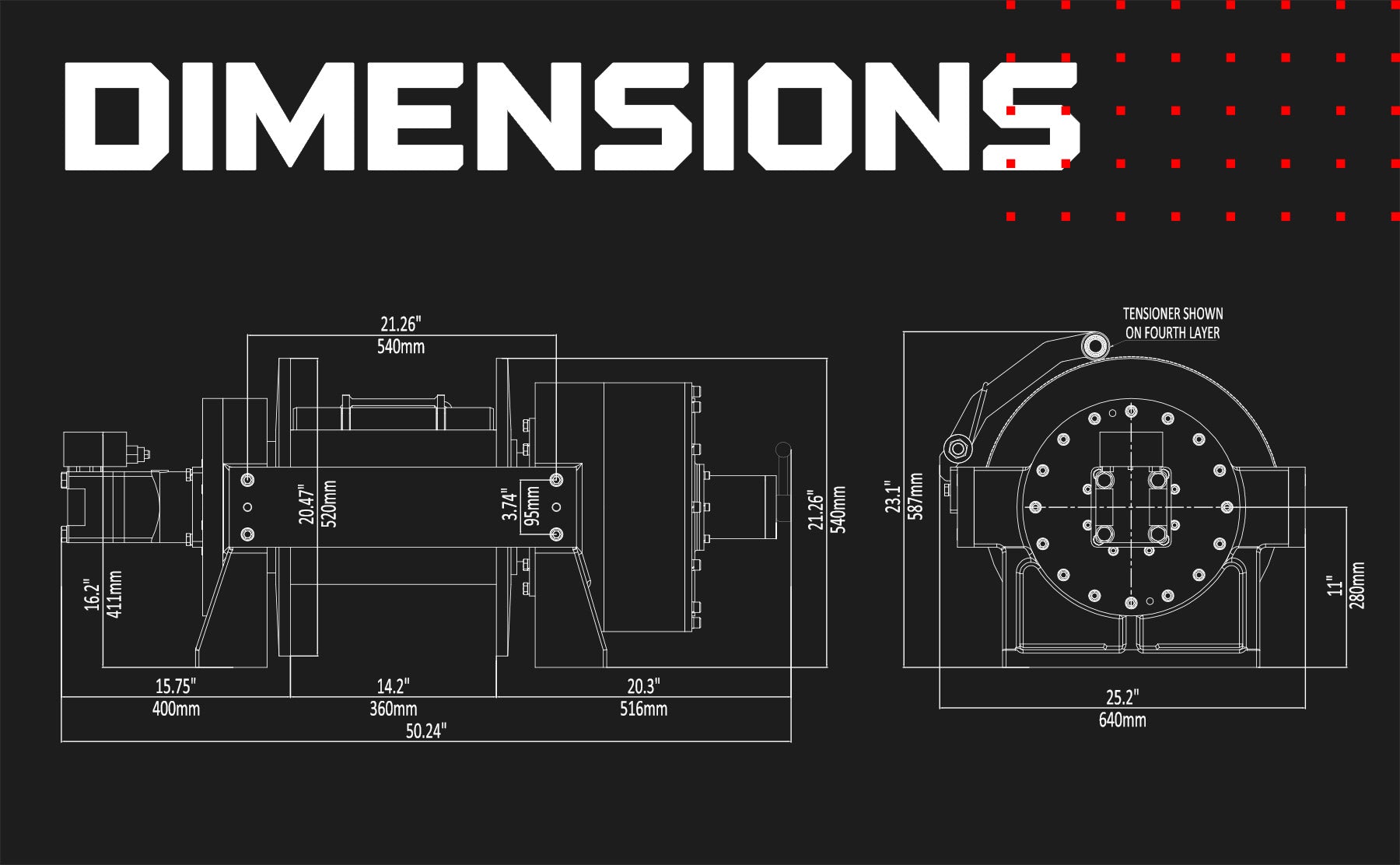

Dimensions | 50.24” × 25.2” × 21.3” 1276mm × 640mm × 540mm |
Weight | 2083 lbs (945 kg) |
Max Flow | 31.7 G/min (120 L/min) |
Max Pressure | 2600 psi (180 Bar) |
Certification | SAEJ-706 |
Line pull lbs (kgs) | Pressure Mpa(Psi) |
---|---|
0 | 7 (1015.3) |
44000 (20000) | 11 (1595.4) |
55000 (25000) | 14 (2030.5) |
66000 (30000) | 16 (2320.6) |
Flow G/min (L/min) | Line speed ft/min(m/min) |
---|---|
5.3 (20) | 2.0 (0.6) |
13.2 (50) | 5.2 (1.6) |
22.5 (85) | 9.8 (3.0)) |
31.7 (120) | 13.5 (4.1) |
Layer of wire rope | Rated line pull lbs(kgs) | Total rope on drum ft (m) |
---|---|---|
1 | 66000 (30000) | 27.9 (8.5) |
2 | 54572 (24754) | 61.7 (18.8) |
3 | 46450 (21070) | 101.7 (31) |
4 | 40432 (18340) | 147 (45) |
What's in the box:
- JR Hydraulic Winch
- Steel Rope and Heavy Duty Hook
- Manual/Air Clutch

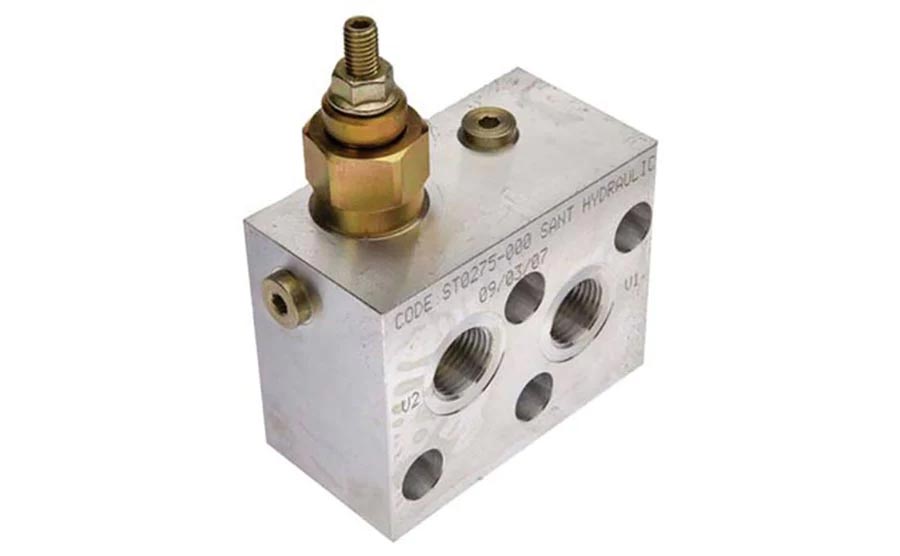

- Balance Valve

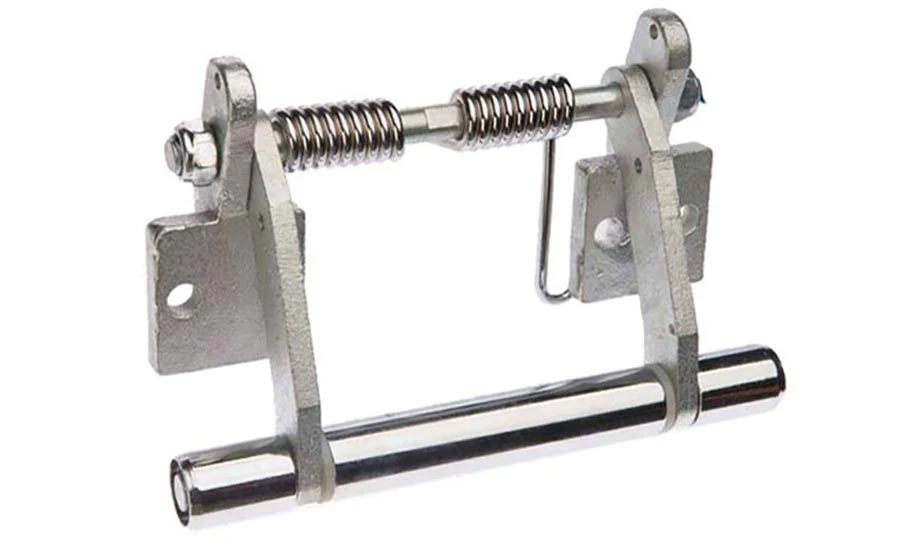

- Tensioner
- Operating Manual
