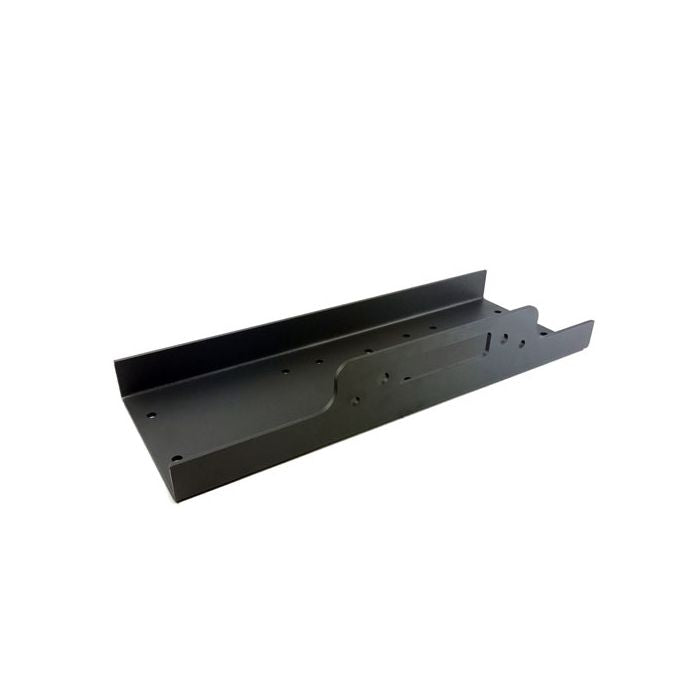

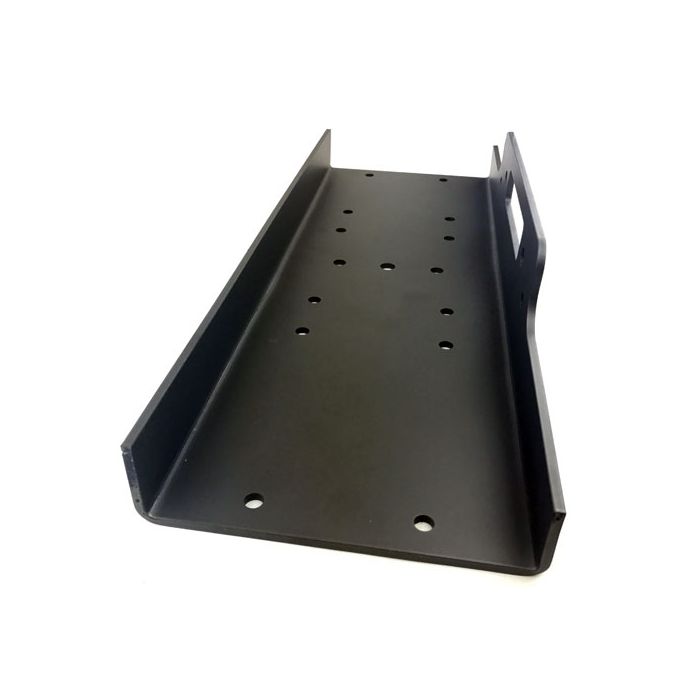

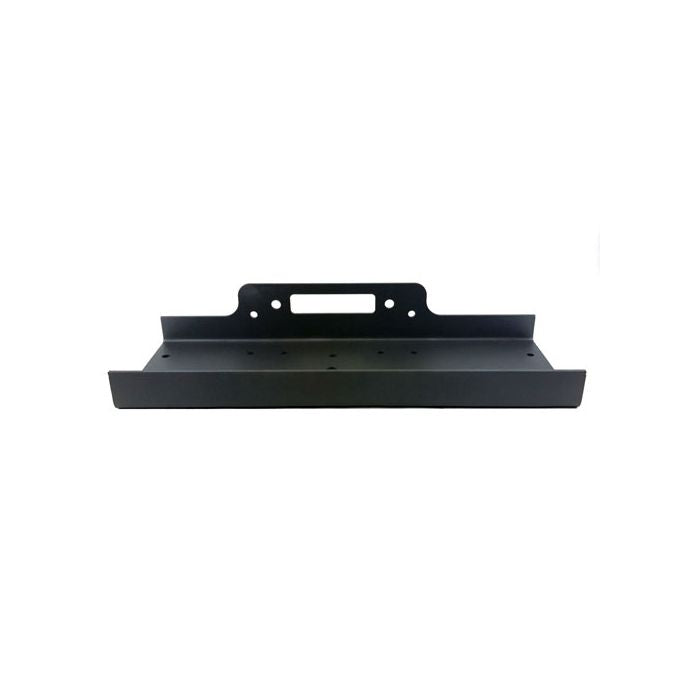

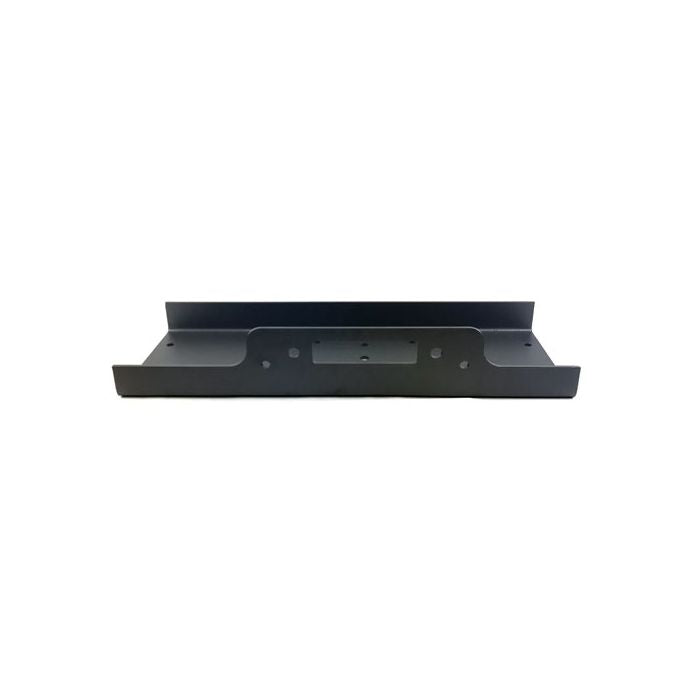

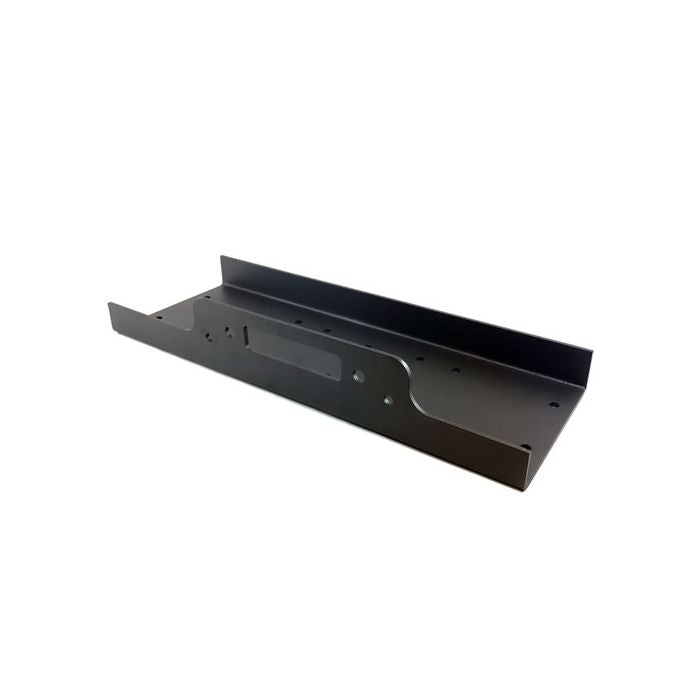

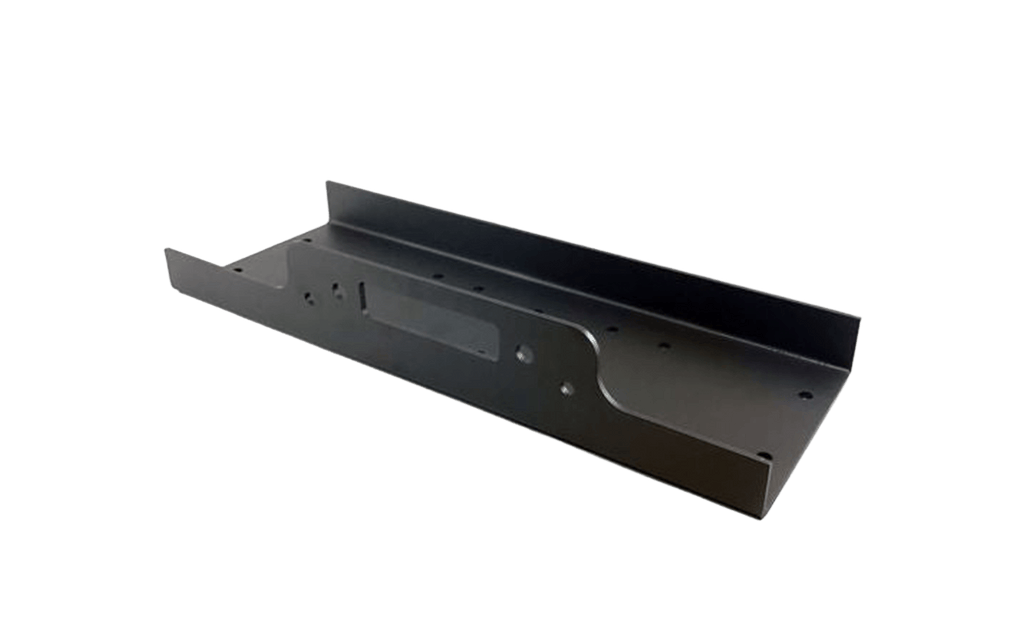

This plate is 600mm x 220mm with a 50mm fold to the rear edge and a 40mm fold to the front edge - increasing to 115mm including the fairlead mounting area.
Suits fairleads with hole centres at 180mm and is manufactured from 5mm steel before being finished in dark grey.
Specifically designed for the 9500 Short Drum with foot mounting bolt positions of 151mm x 114.3mm
- but you always have the option of drilling additional mounting holes if required.
