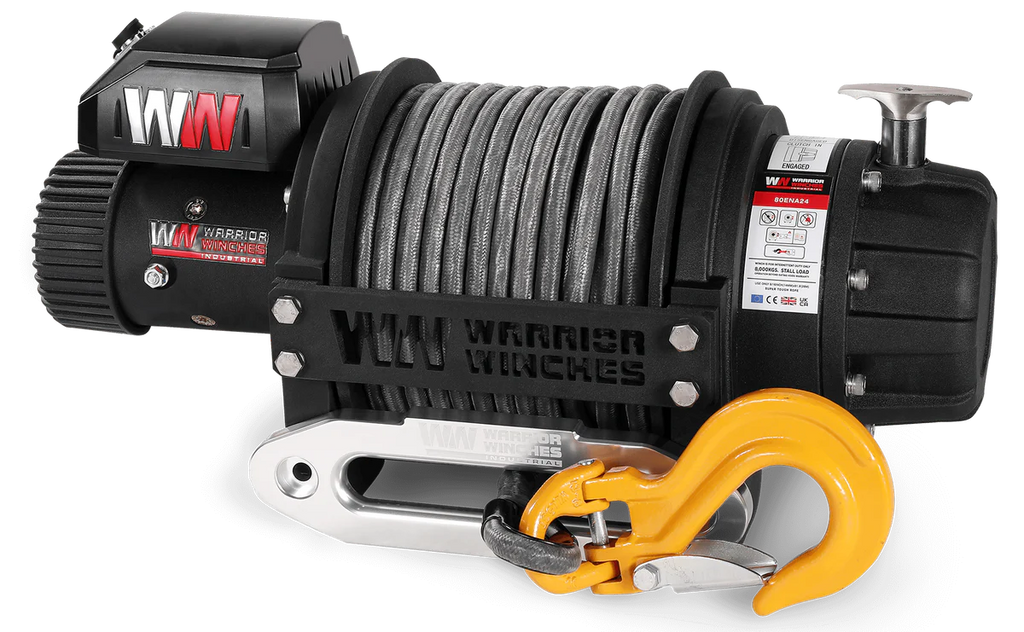

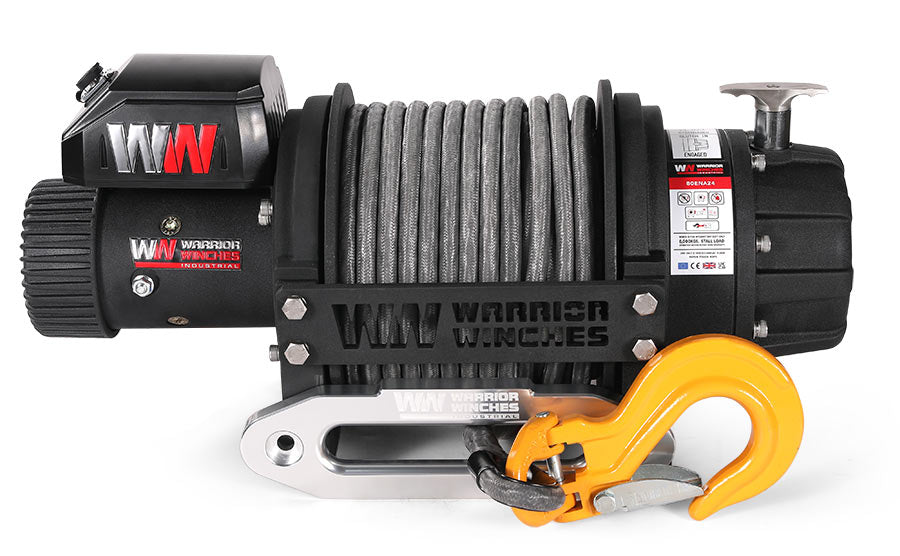

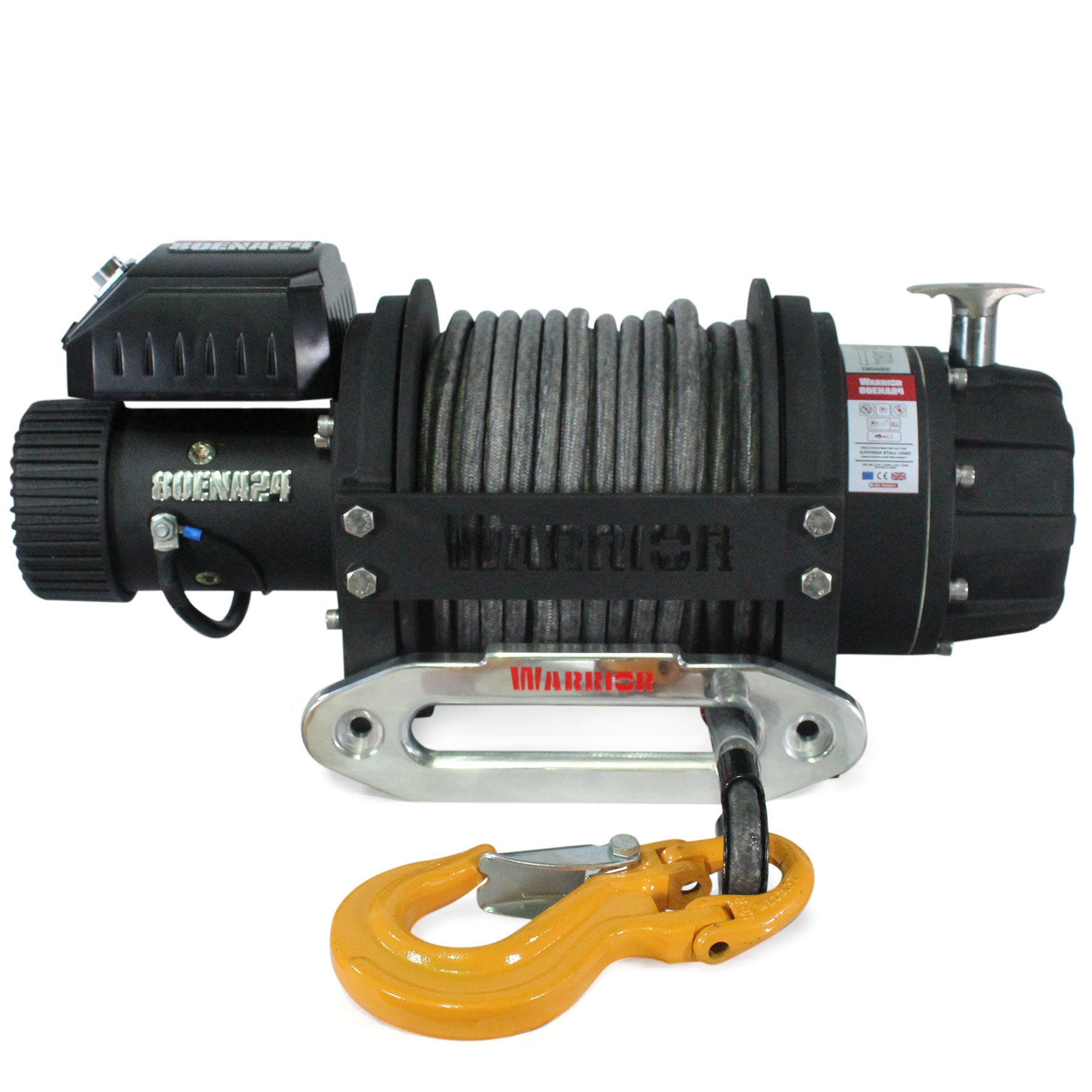

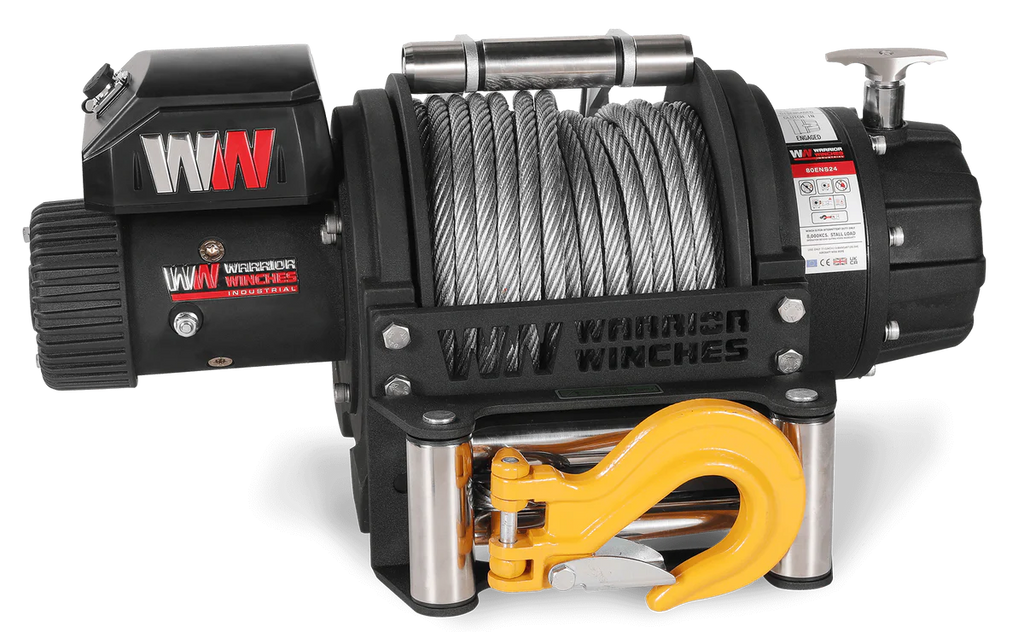

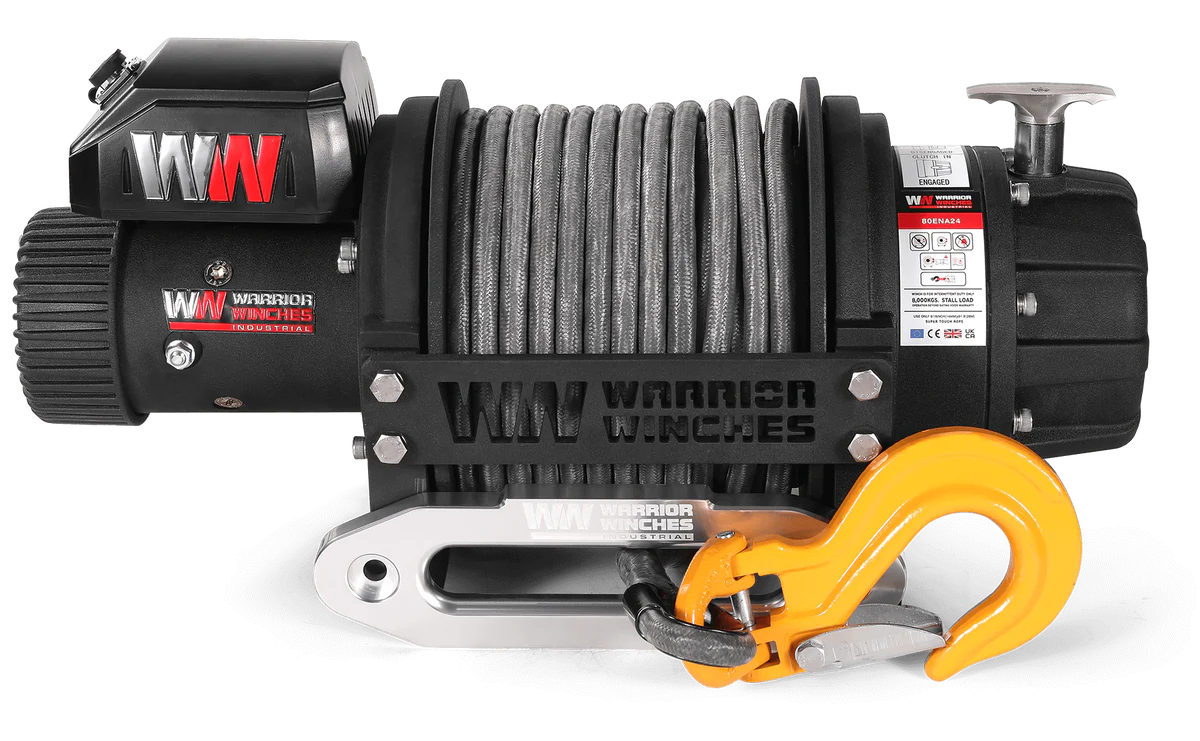

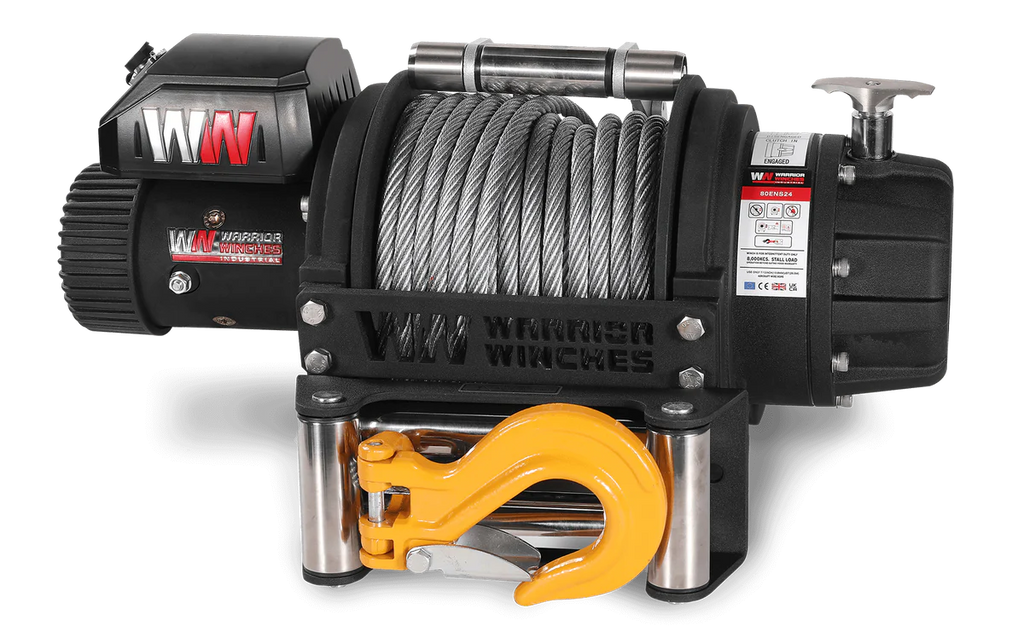

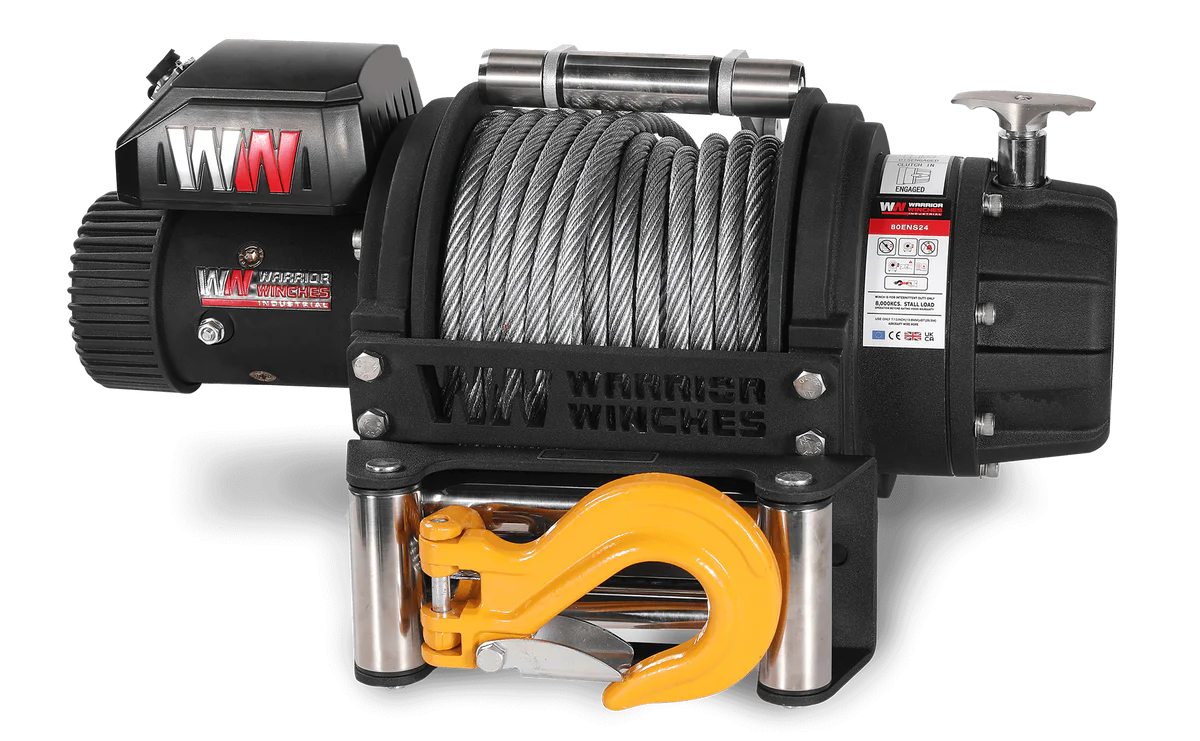

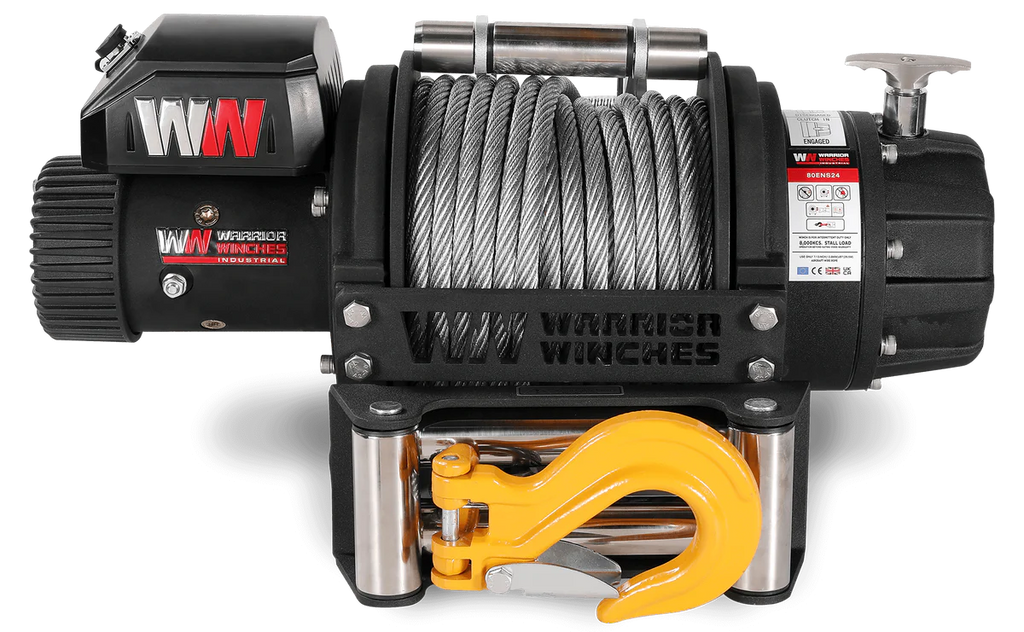

The latest in our EN range with a massive 8000kg or 17637lbs of pulling power – the professional design just got stronger. Conforms to part of BS EN 14492-1:2006+A1:2009 (Steel Cable Models Only)

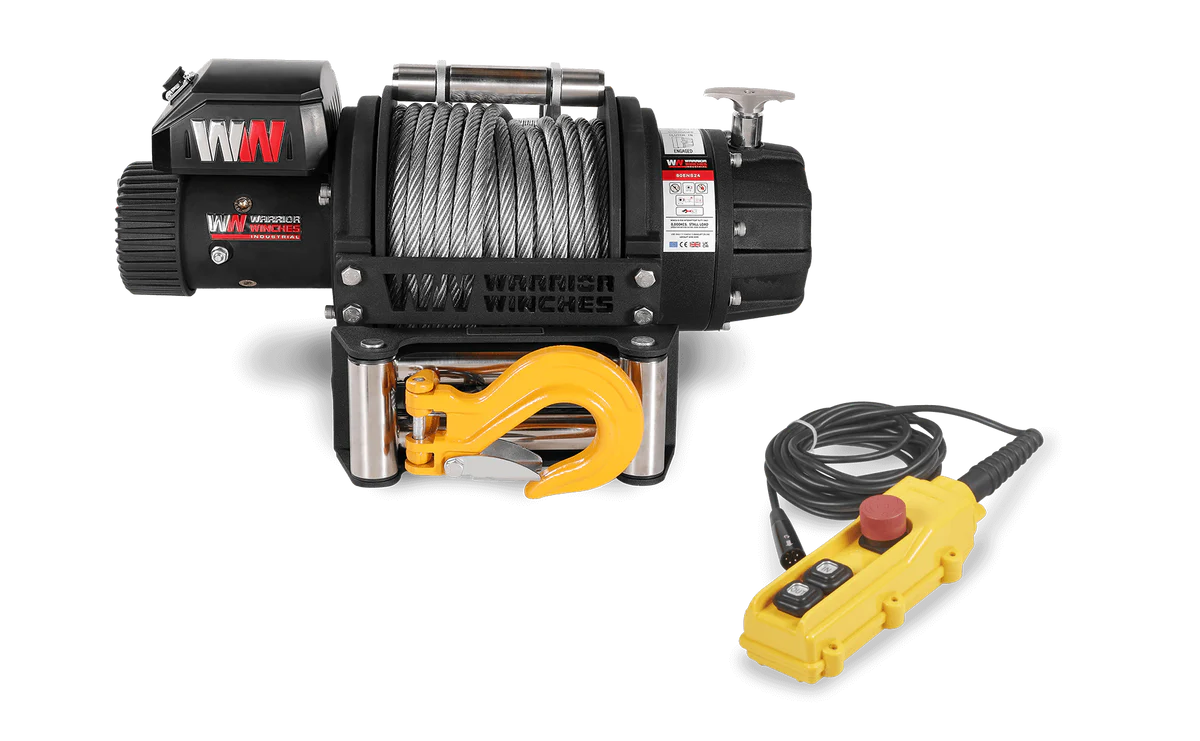

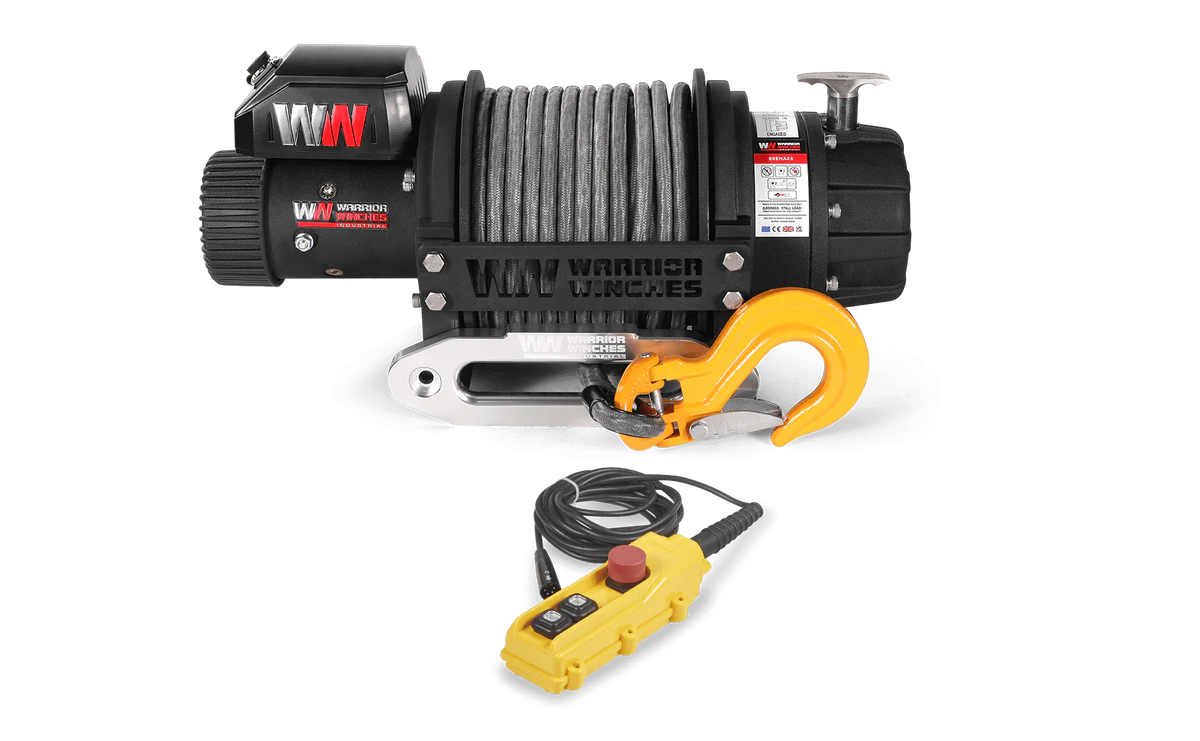

Built to get the job done with ease, it’s perfectly suited for both industrial and commercial applications, able to handle whatever you throw at it. And now with added smart features such as an emergency stop remote handset and overload protection – it just got even easier to work safer.
| Rated Line Pull | 17637 lbs |
| Motor Type | 24V: Input: 8.2 HP / 6.1 kW ; Output: 4.2HP / 3.1kW |
| Rated Volt | 24 |
| Gearing | 450:1 |
| Clutch | Manual |
| Braking Action | External Brake |
| Drum Size (Dia x L) | 138 x 196 mm |

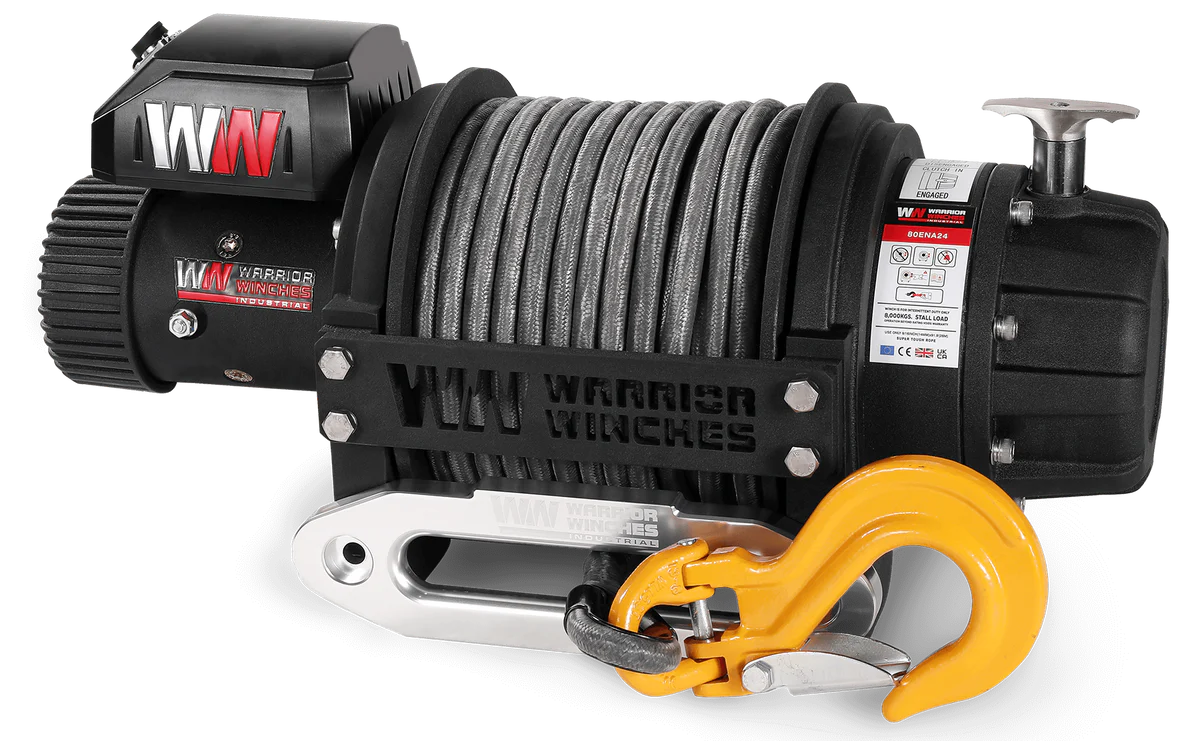

| Cable Material | Steel or Synthetic |
| Cable – Dia x L | Steel: 13.8mm x 26.5m Synth: 14mm x 28m Steel (Ext drum): 13.8mm x 40m |
| Mounting Pattern | 254mm×114.3 mm : 254mm×190.5mm mm |

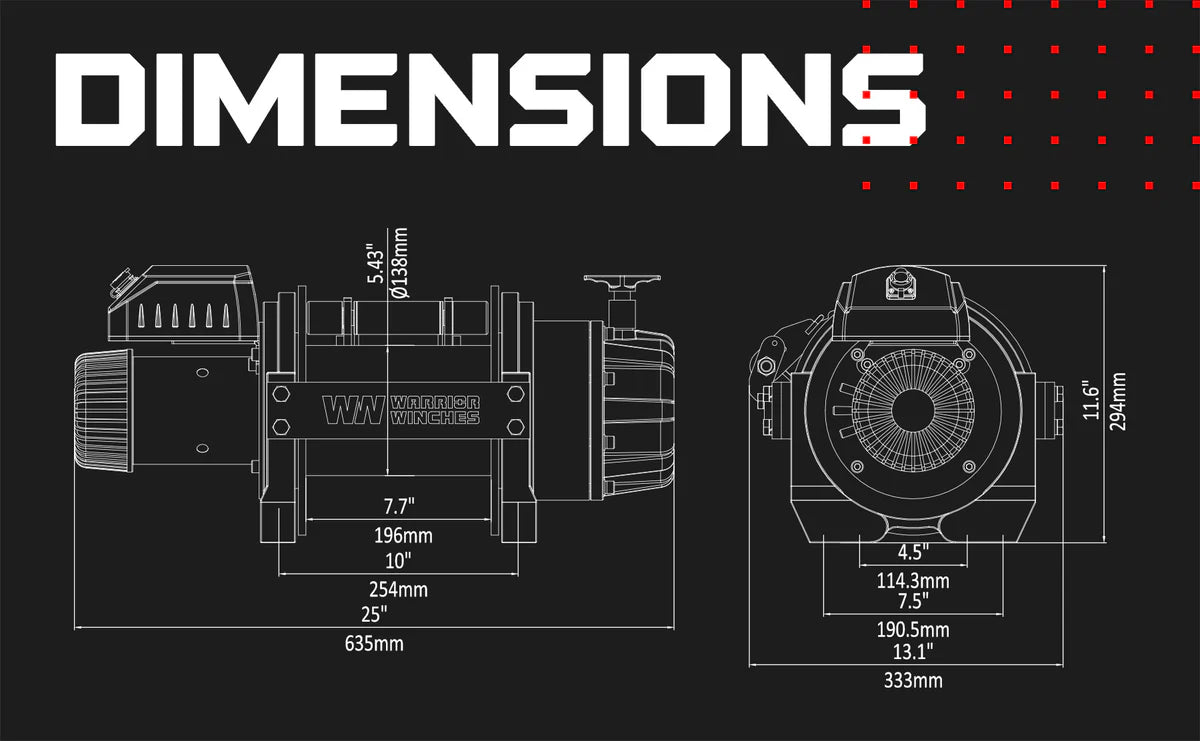

| Dimensions | 635 x 333 x 294 mm |
| Certification | CE, UKCA |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 17637 (8000) | 18.7 (5.7) |
| 2 | 14923 (6769) | 42.7 (13) |
| 3 | 12932 (5866) | 70.2 (21.4) |
| 4 | 11408 (5175) | 92 (28) |
| Line Pull lbs (kgs) | Line Speed 24v ft/min (m/min) | Amp Draw 24v |
|---|---|---|
| 0 | 33.8 (10.3) | 26 |
| 4409 (2000) | 11.5 (3.5) | 95 |
| 8818 (4000) | 8.5 (2.6) | 140 |
| 13228 (6000) | 6.6 (2.0) | 190 |
| 17637 (8000) | 5.9 (1.8) | 230 |
