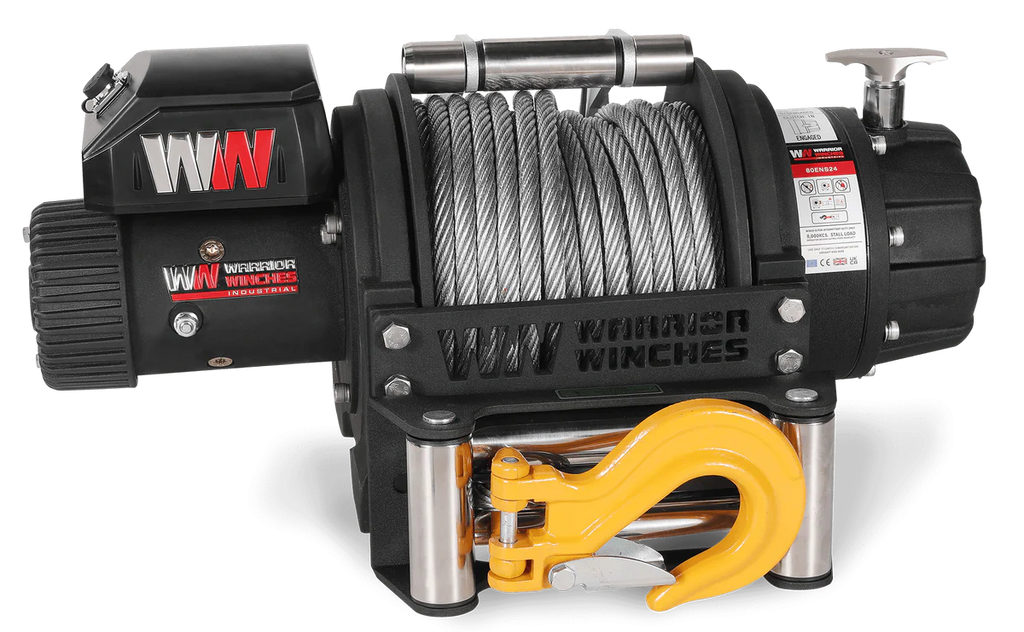

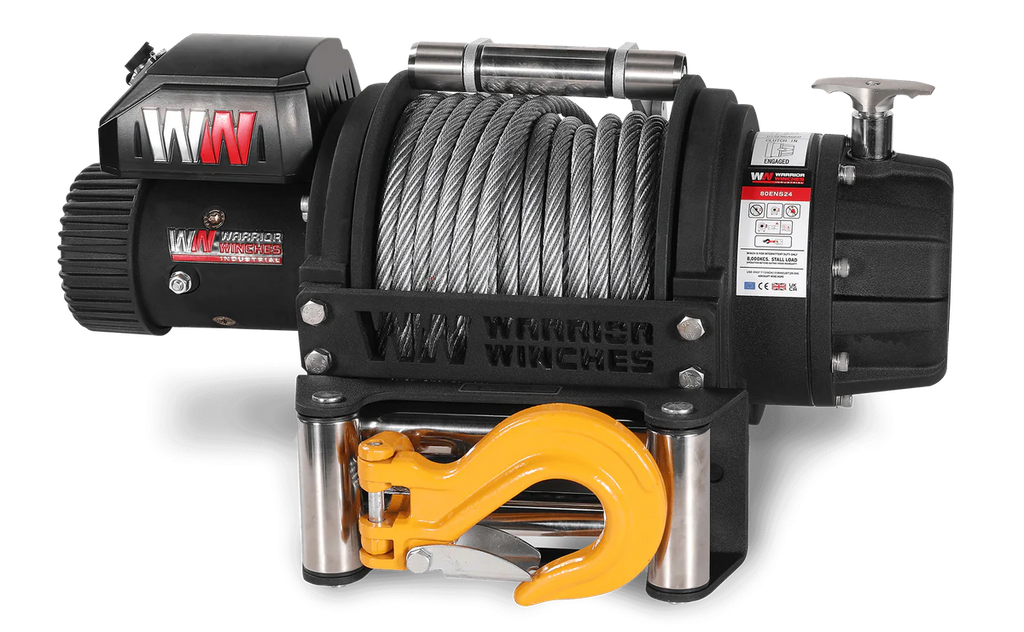

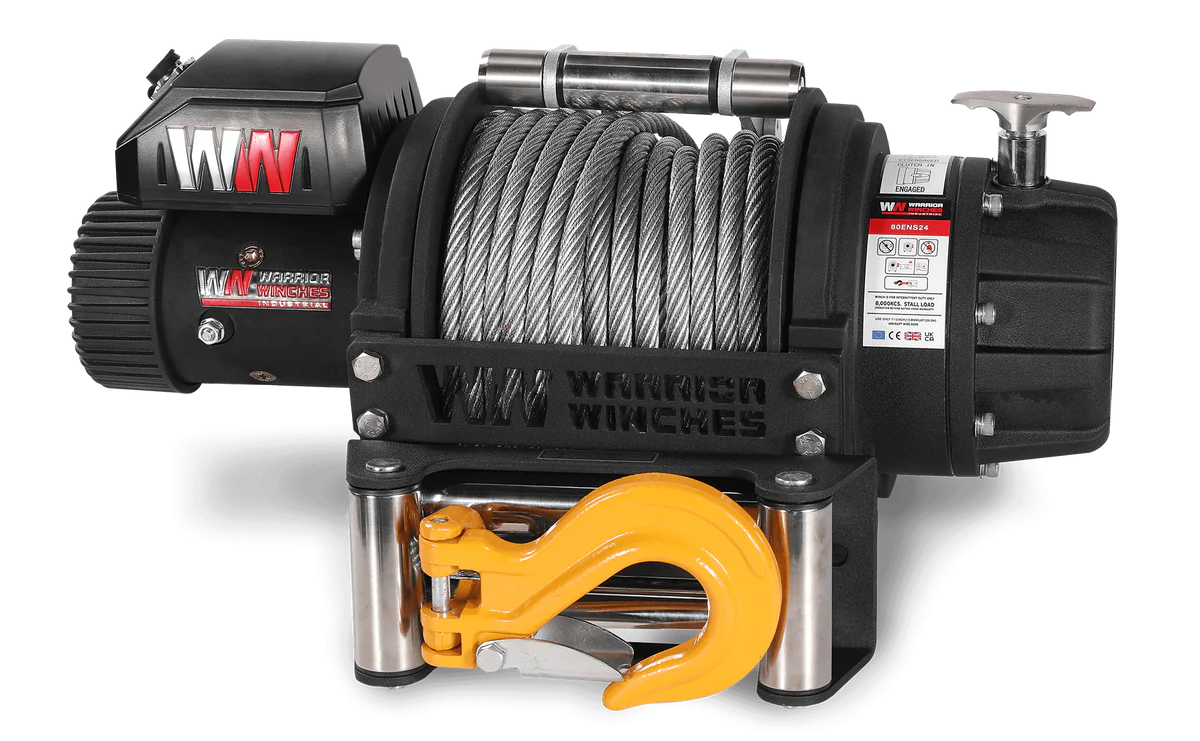

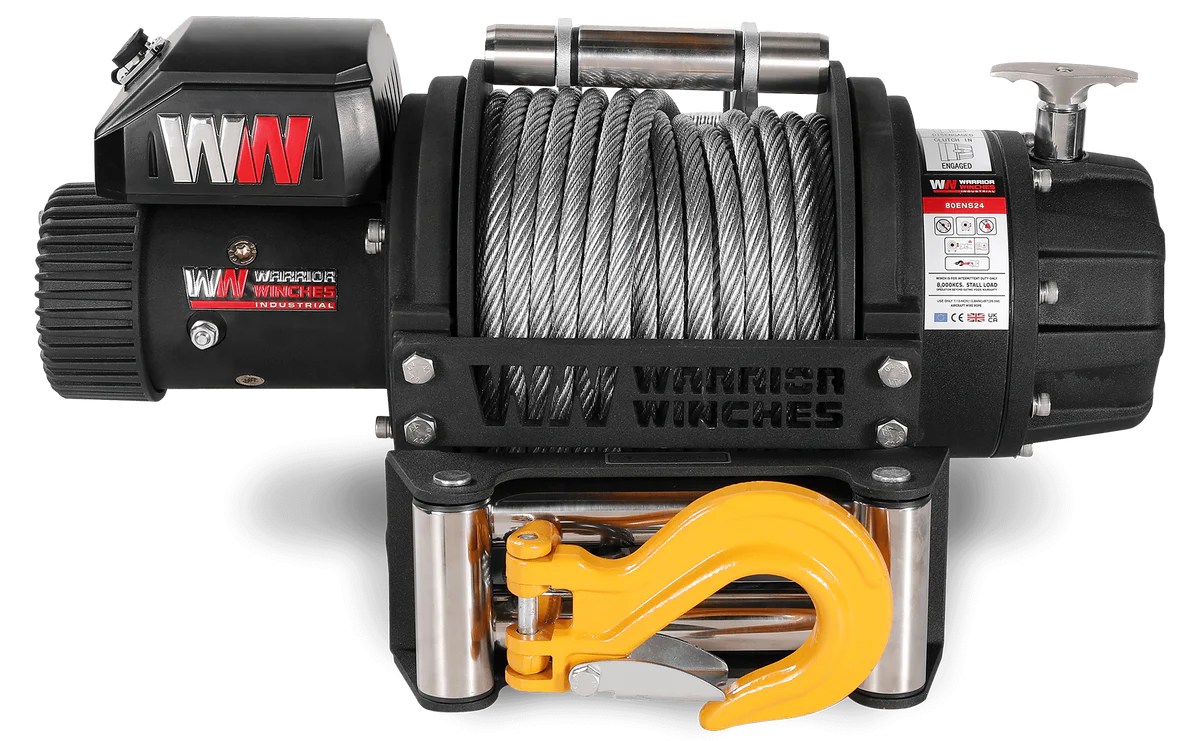

Warrior 8000EN Winch - Extended Drum
Warrior 8000EN Winch - Extended Drum
Warrior 8000EN Winch - Extended Drum
Roll over image to zoom in Click on image to zoom
Warrior 8000EN Winch - Extended DrumWarrior 8000EN Winch - Extended DrumWarrior 8000EN Winch - Extended Drum

Warrior 8000EN Winch - Extended Drum

 0 Reviews | Ask a Question SKU: 80LDS24
Price:
£1,925.99
In stock (Delivery in 1-2 working days)
Pay in 3 interest-free payments of £641.99 with Paypal Logo. Learn more

Features

  • PROFESSIONAL DESIGN – Built for the professional operator. Conforms to part of BS EN 14492-1:2006+A1:2009
  • MASSIVE POWER – Huge pulling power of 8000kg.
  • NEW MODEL – The extended drum model is now designed for commercial plant trailers.
  • DOUBLE CAPACITY – 40-meter rope allows operators to double pulling capacity to a massive 16Tonne. (35,274lb).
  • HARD-WEARING DESIGN – Features full sealing, stainless steel fairleads and fittings for long-lasting power.
  • SMART FEATURES – Comes with an emergency stop remote handset and overload protection for smart usage

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The latest in our EN range with a massive 8000kg or 17637lbs of pulling power – the professional design just got stronger. Conforms to part of BS EN 14492-1:2006+A1:2009

And now, as an extended drum model designed for commercial plant trailers, the 40m rope even allows you to double the pulling capacity. Reaching up to a massive 16-tonne capacity – the Warrior EN range really is unbeatable.

Built to get the job done with ease, it’s perfectly suited for both industrial and commercial applications, able to handle whatever you throw at it. And now with added smart features such as an emergency stop remote handset and overload protection – it just got even easier to work safer.

Rated Line Pull17637 lbs
Motor Type24V: Input: 8.2 HP / 6.1 kW ; Output: 4.2HP / 3.1kW
Rated Volt24
Gearing450:1
ClutchManual
Braking ActionExternal Brake

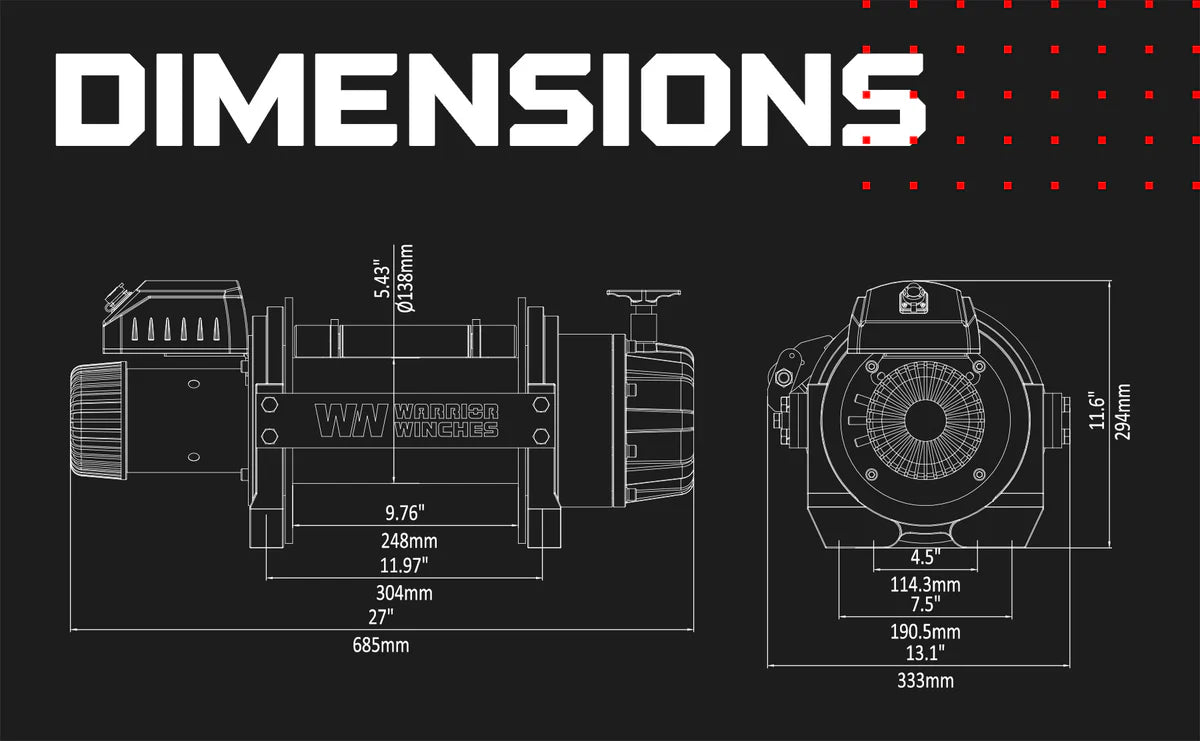

Drum Size (Dia x L)138 x 196 mm
Cable MaterialSteel
Cable – Dia x LSteel (Ext drum): 13.8mm x 40m
Mounting Pattern254mm×114.3 mm : 254mm×190.5mm mm
Dimensions635 x 333 x 294 mm
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 17637 (8000) 18.7 (5.7)
2 14923 (6769) 42.7 (13)
3 12932 (5866) 70.2 (21.4)
4 11408 (5175) 92 (28)
Line Pull
lbs (kgs)		 Line Speed 24v
ft/min (m/min)		 Amp Draw
24v
0 33.8 (10.3) 26
4409 (2000) 11.5 (3.5) 95
8818 (4000) 8.5 (2.6) 140
13228 (6000) 6.6 (2.0) 190
17637 (8000) 5.9 (1.8) 230

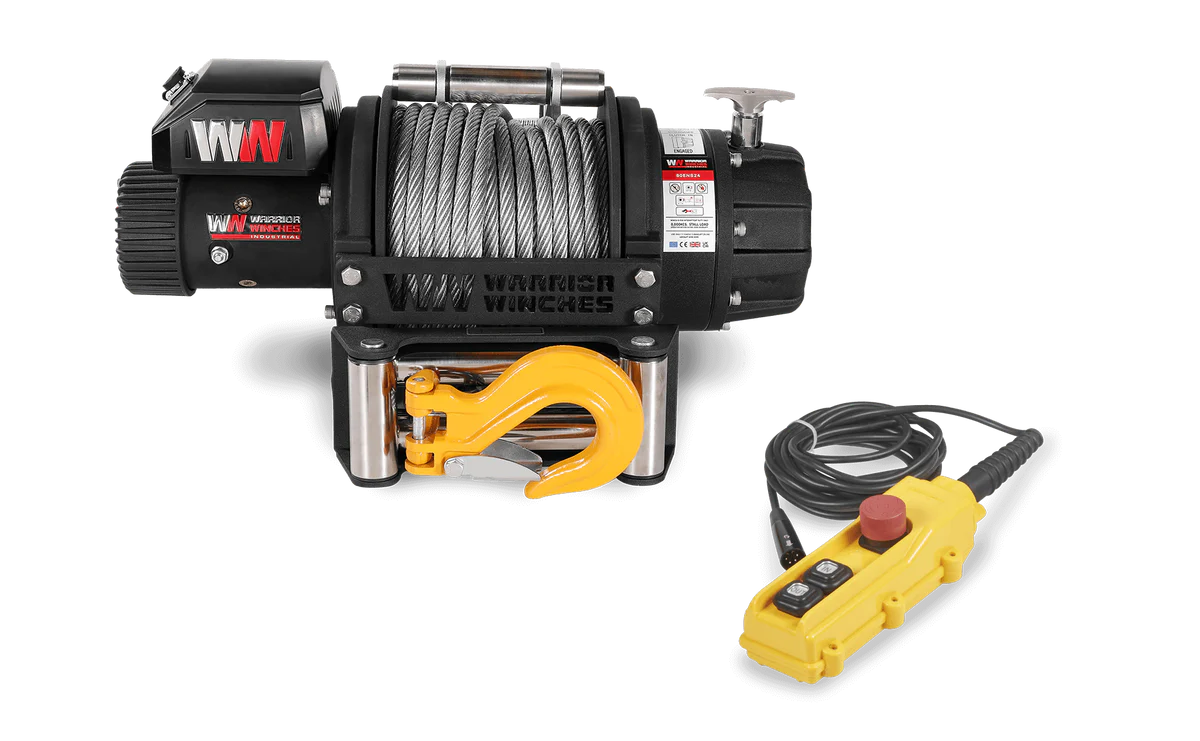

What's in the box:

  • 3.8m Remote Handset
  • Overload Protection
  • Hook
  • Heavy Duty Stainless Steel Roller Fairlead
  • Steel Rope
  • Heavy Duty Battery Leads
  • Stainless Steel Mounting Hardware
User Manual Download
Brochure Download
