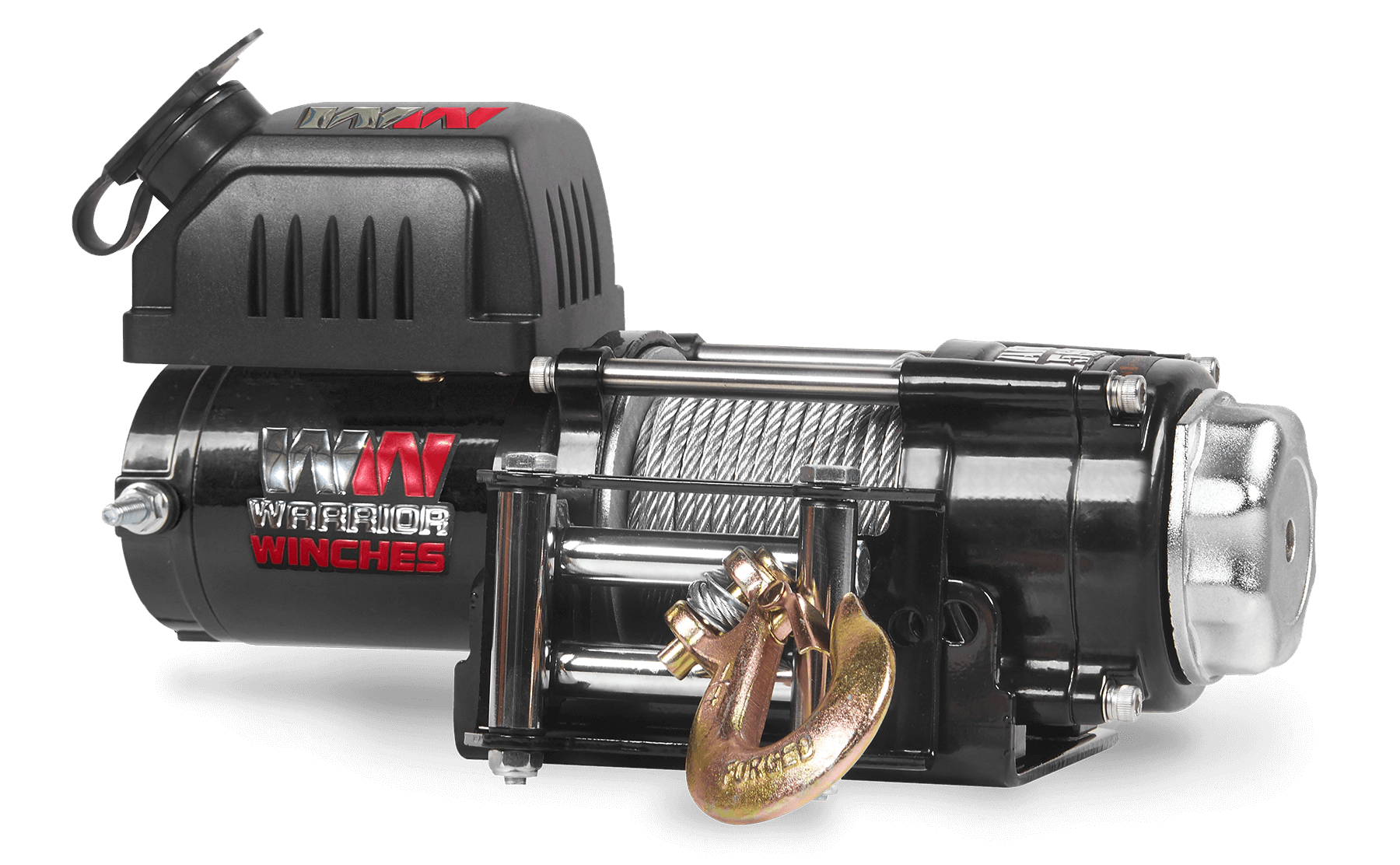

Warrior Ninja 2500lb Winch - 12v Steel Rope

| Ask a Question SKU: 25SPS12

Price:
Sale price£142.99
In stock (Delivery in 1-2 working days)
You may also like:

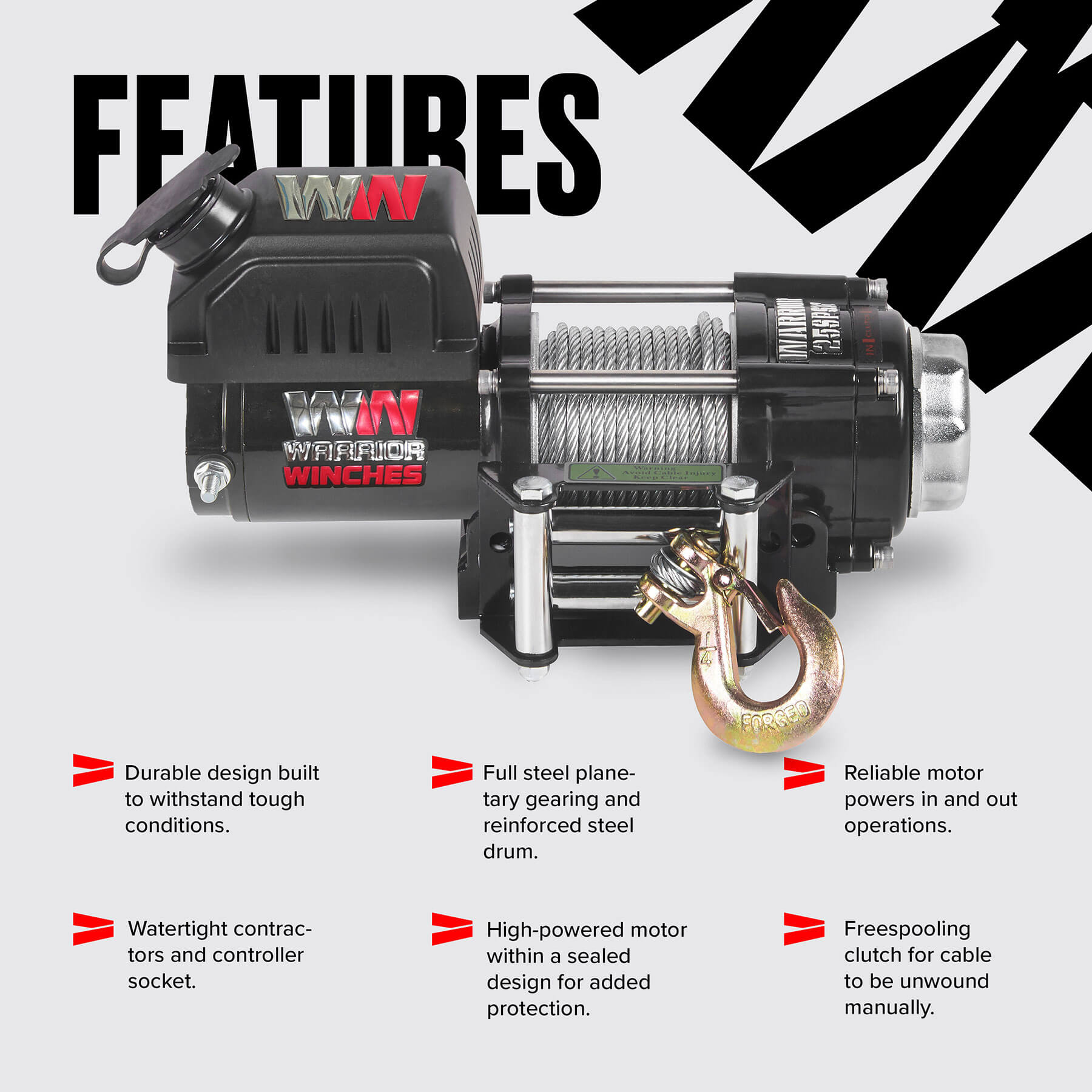

Features

  • NEWLY UPGRADED – The Warrior Ninja 2500 is an upgrade from the popular C2500A model.
  • POWERFUL + PROTECTED – High-powered motor sealed for protection.
  • HEAVY DUTY – Features full steel planetary gearing and a strengthened steel drum.
  • ALL WEATHER – With watertight contactors and controller socket.
  • LINE CAPACITY – 2500LB OR 1134KG capacity.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

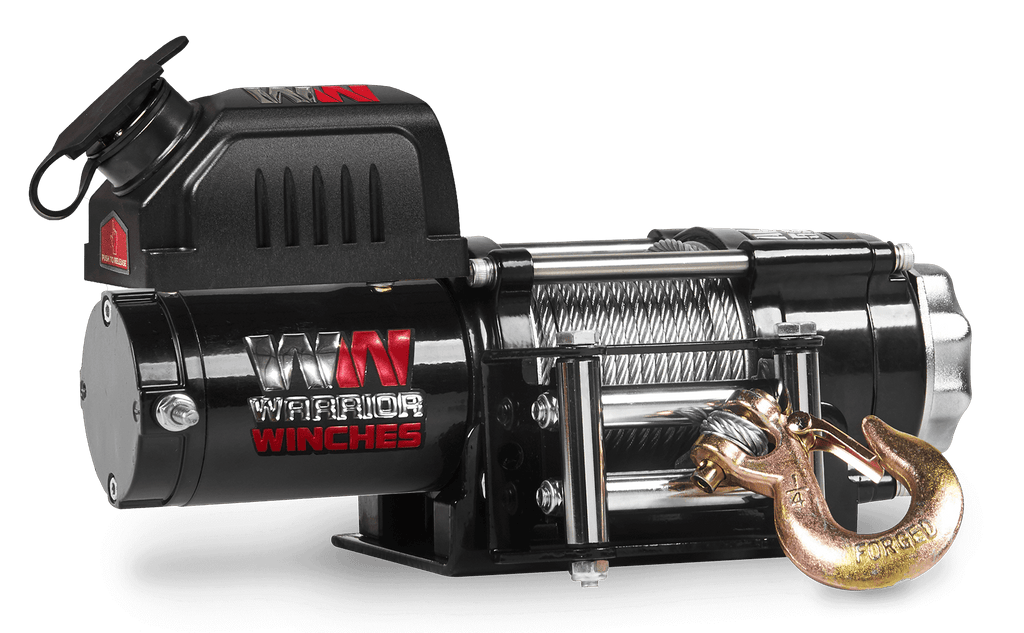

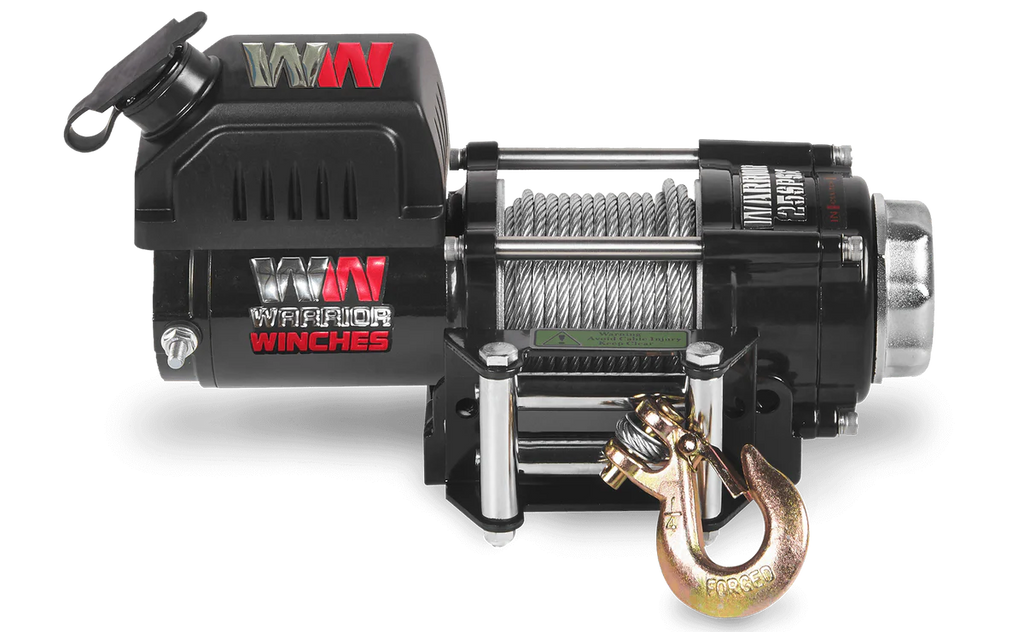

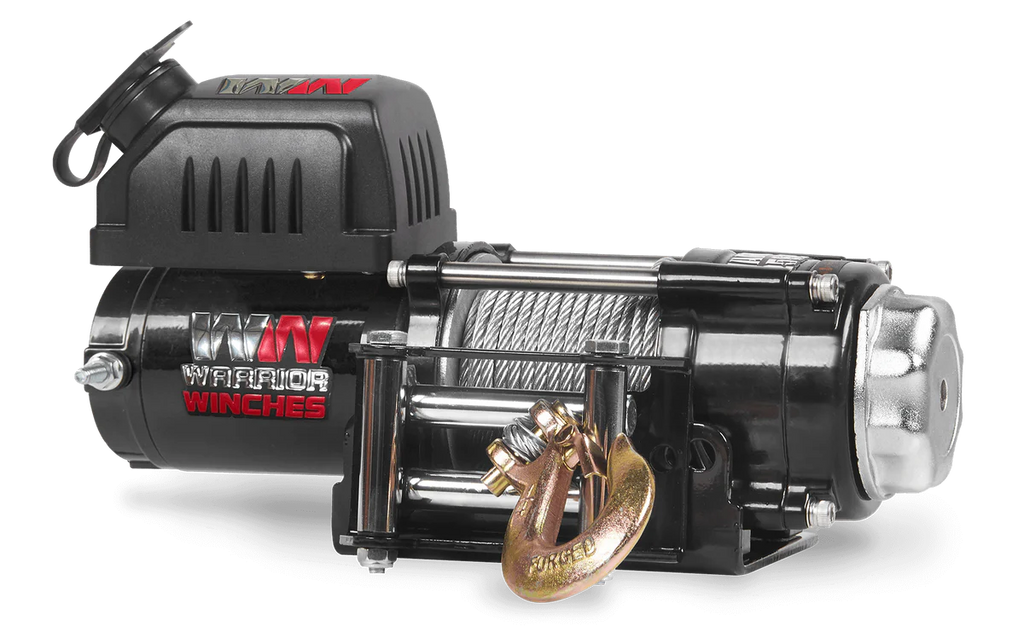

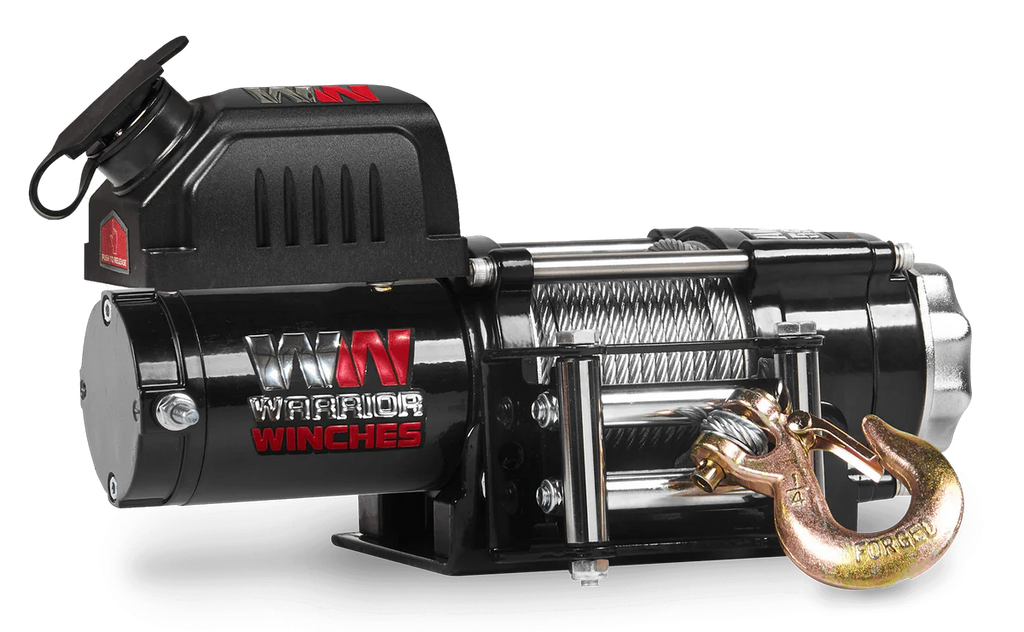

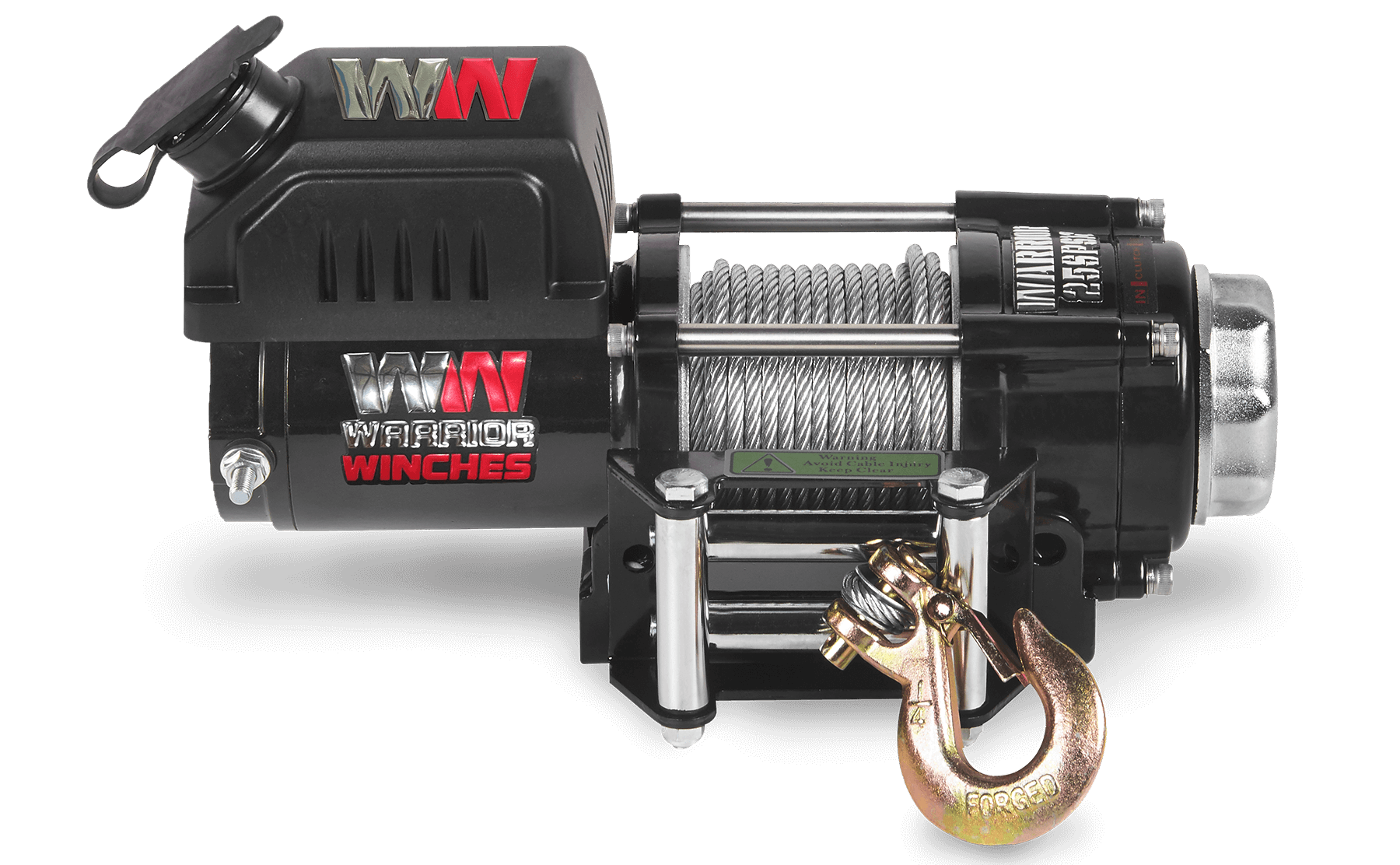

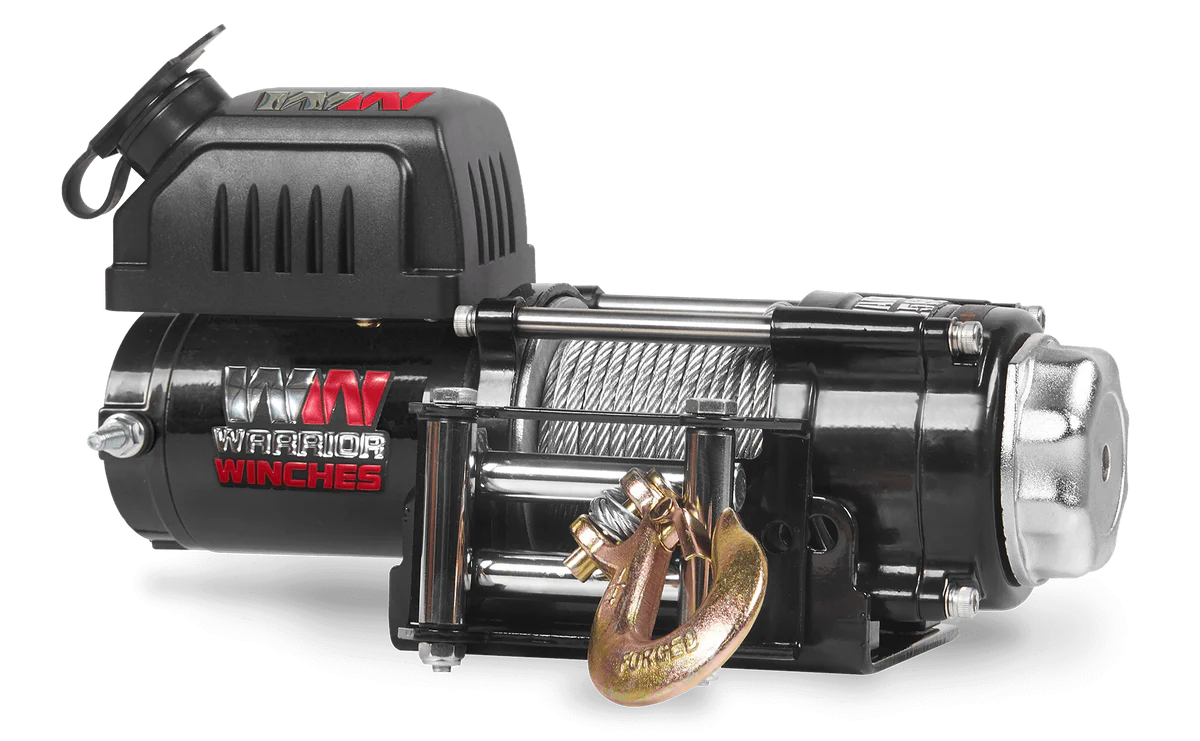

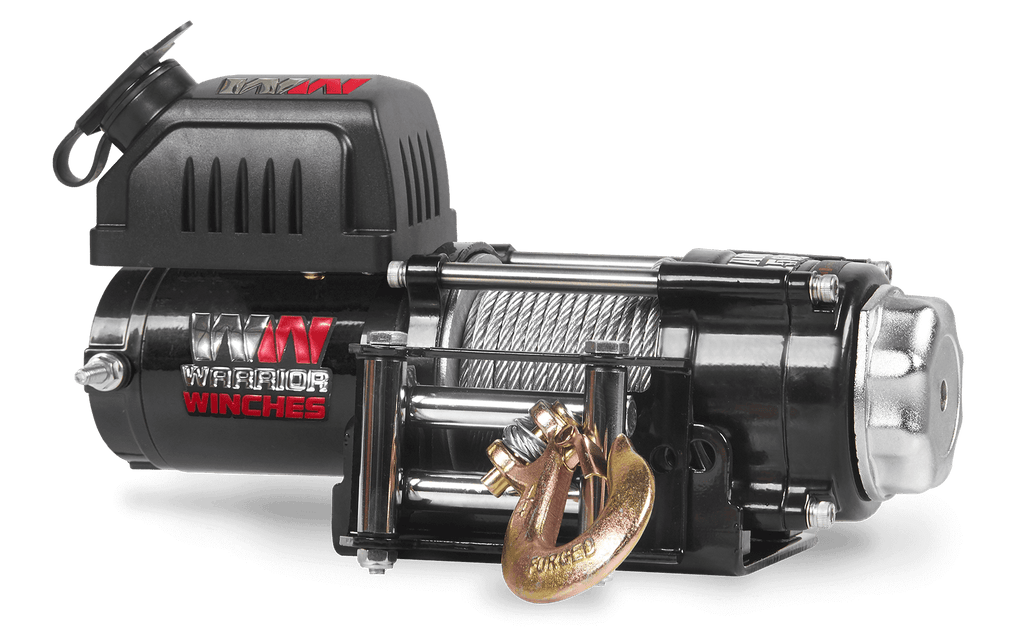

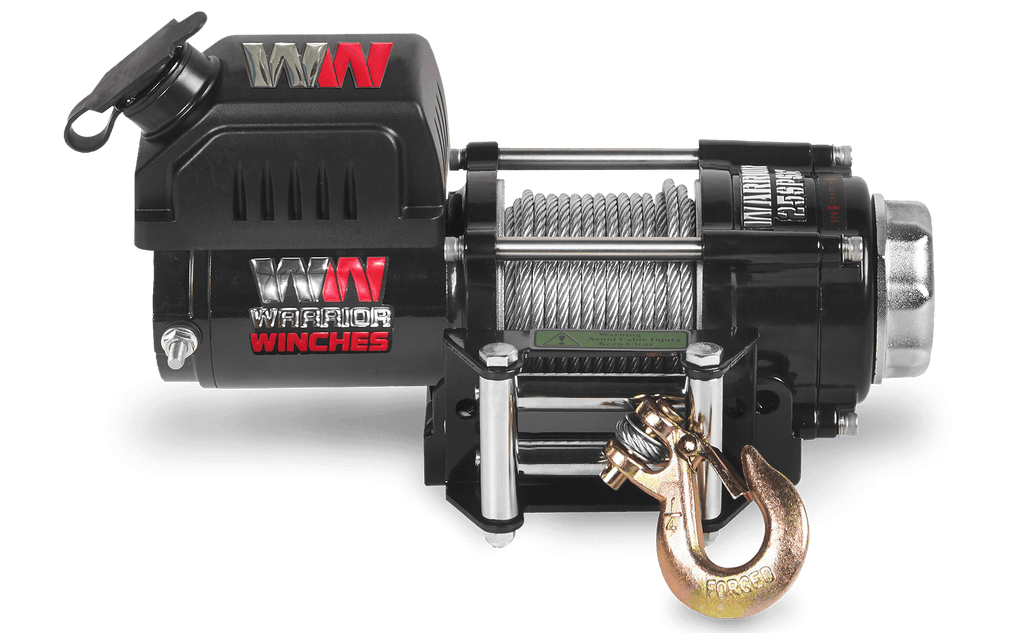

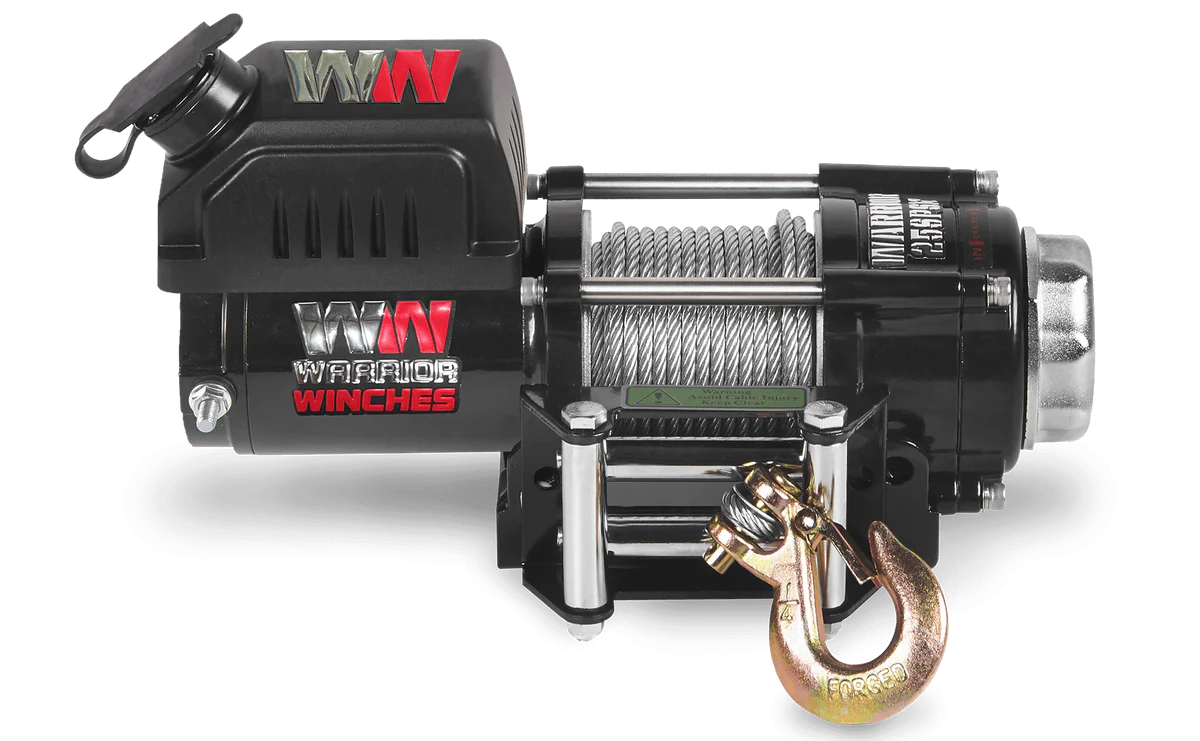

Warrior Ninja 2500lb Winch - 12v with Steel Rope

Recently upgraded, the Warrior Ninja 2500 is a levelled-up version of the extremely popular C2500A model. With no rivals on the market and no comparisons in strength, the Ninja is a truly outstanding offering thanks to its unique freespooling clutch system.

Built to last, the Ninja is packed with life-lengthening, strengthening features such as full steel planetary gearing, chip-resistant paint and a strengthened steel drum. Also protected for all weather, both the controller socket and contactors are watertight. Powered by a sealed high-power motor and allowing you the choice of steel or synthetic rope without any compromise on strength, you can rely on this heavy-duty winch.

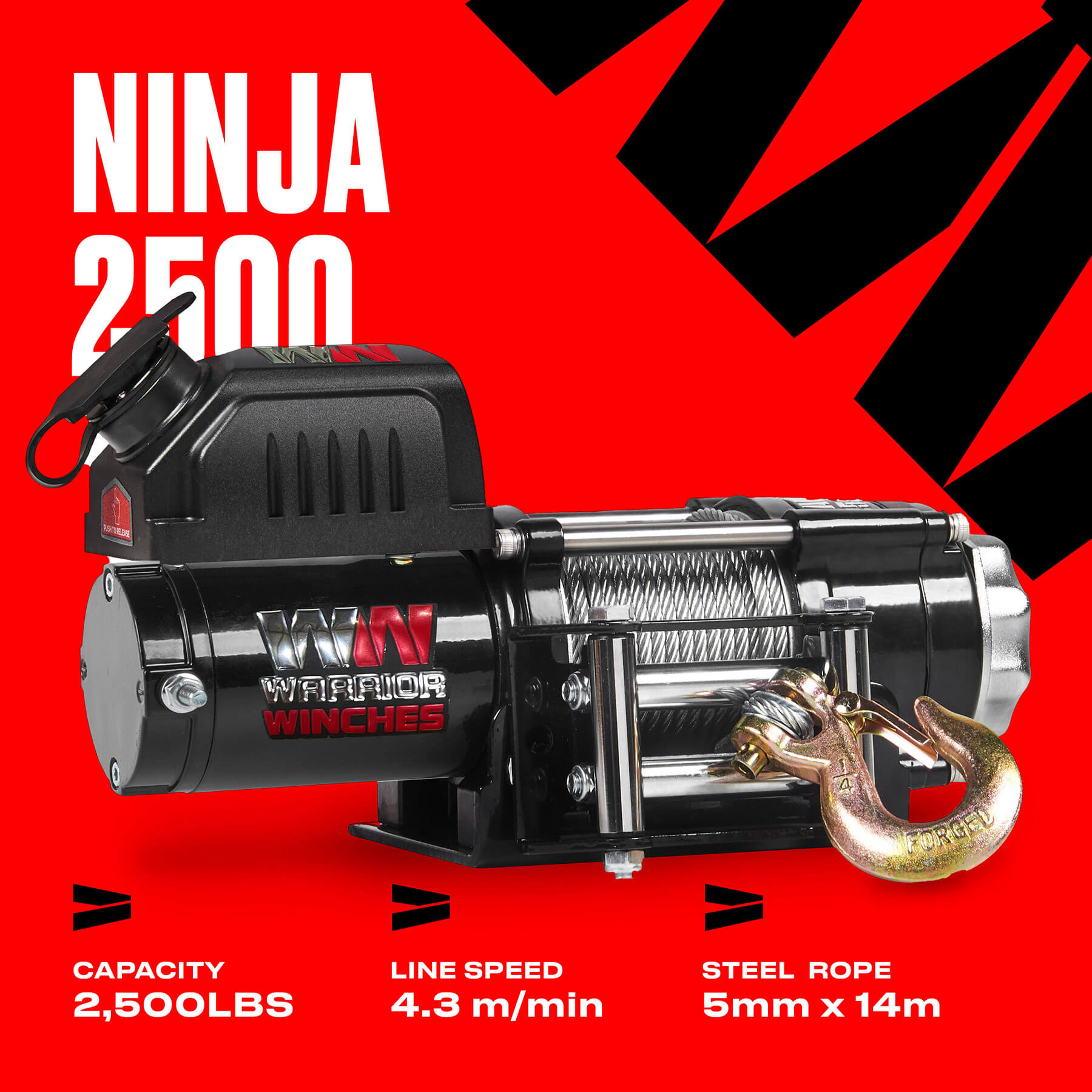

With a line capacity of 2500lb or 1134kg, and a pull of 1.9m per minute at full load – you can get the job done with ease. Unbeatable on pulling power, you can also get a handlebar control as an optional extra for ATV application.


Standard Features:

  • Line Capacity: 2,500lb (1134kg)

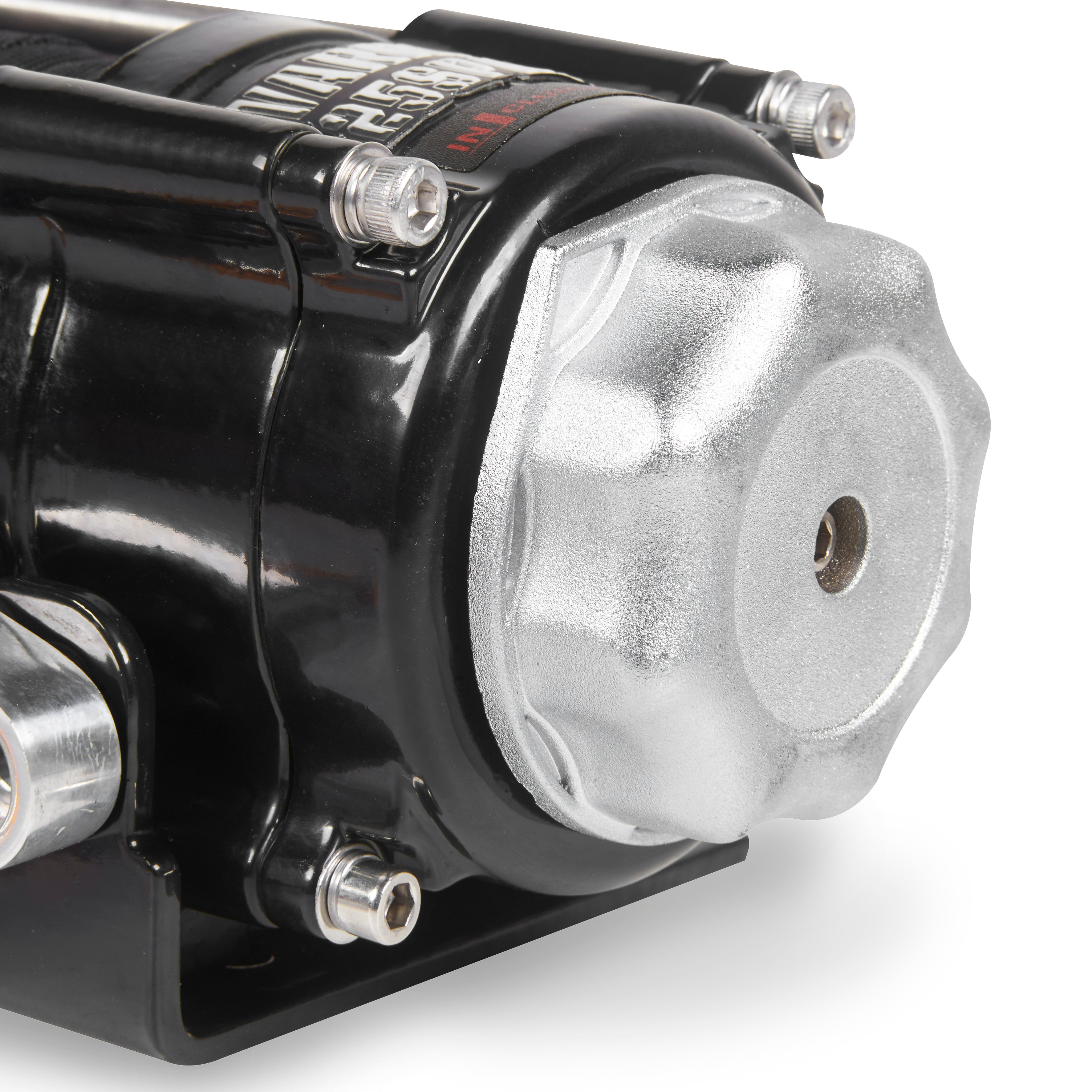

  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Warranty: 12 Month return to base warranty

Accessories:

  •  Wired Hand Control: 3m Wired Hand Control
  • Wireless Control: Available as optional extra
  • Mounting Plate: Included
  • Mounting Bolts: Included for Standard installations
  • 1.5m Heavy Duty Battery Cables (May need extending dependant on application)
  • 2t Hook Type Pulley Block
  •  Instruction Manual

Other Information:

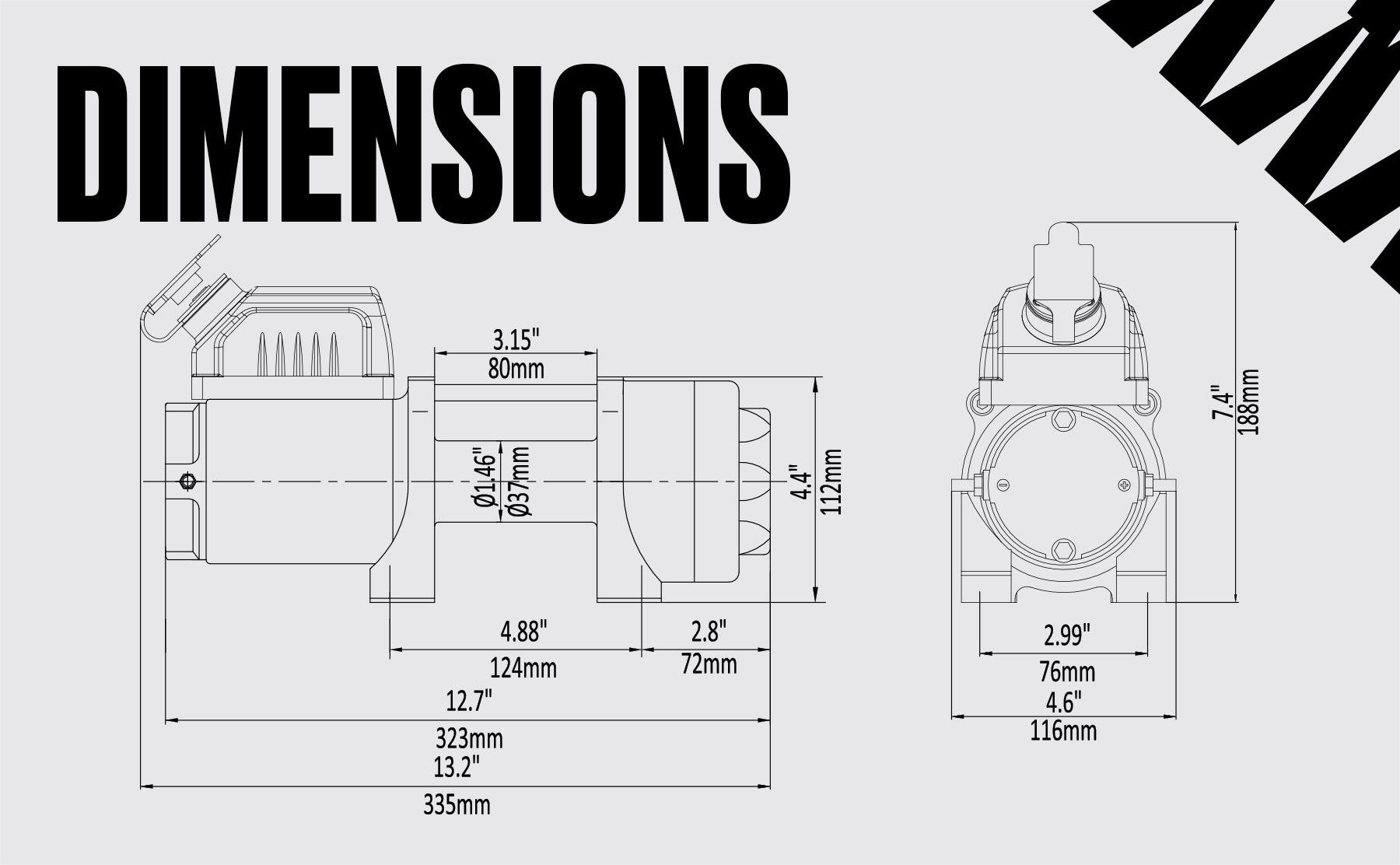

  • Dimensions: 335mm L x 113mm D x 165mm H
  • Mounting Bolt Pattern: 79.5mm
  • Approx. Shipping Weight: 7kg
  • Line Pull- No Load: 3.2 m/min (45 Amps)
  • Line Pull - Full Load:  1.9 m/min (60 Amps)






Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull2500 lbs
Motor Type12V: Input: 2.6hp / 1.9 kW; Output: 1.1hp / 0.8 kW
24V: Input: 3.2hp / 2.4 kW; Output: 1.2hp / 0.9 kW
Gearing170:1
ClutchManual
Braking ActionDynamic
Drum Size (Dia x L)37 x 80 mm
Cable MaterialSteel
Cable – Dia x LSteel: 4.8mm x 14m
Mounting Pattern124 x 76 mm 2-M8 mm
Dimensions335 x 113 x 188 mm
Weight 9.3kg
Warranty3 Years
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 2500 (1134)
2 2033 (922)
3 1713 (777)
4 1480 (671)
5 1303 (591)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 10.5 (3.2) 45 25
500 (227) 9.6 (2.9) 65 35
1500 (680) 7.7 (2.4) 120 65
2500 (1134) 6.2 (1.9) 6 100

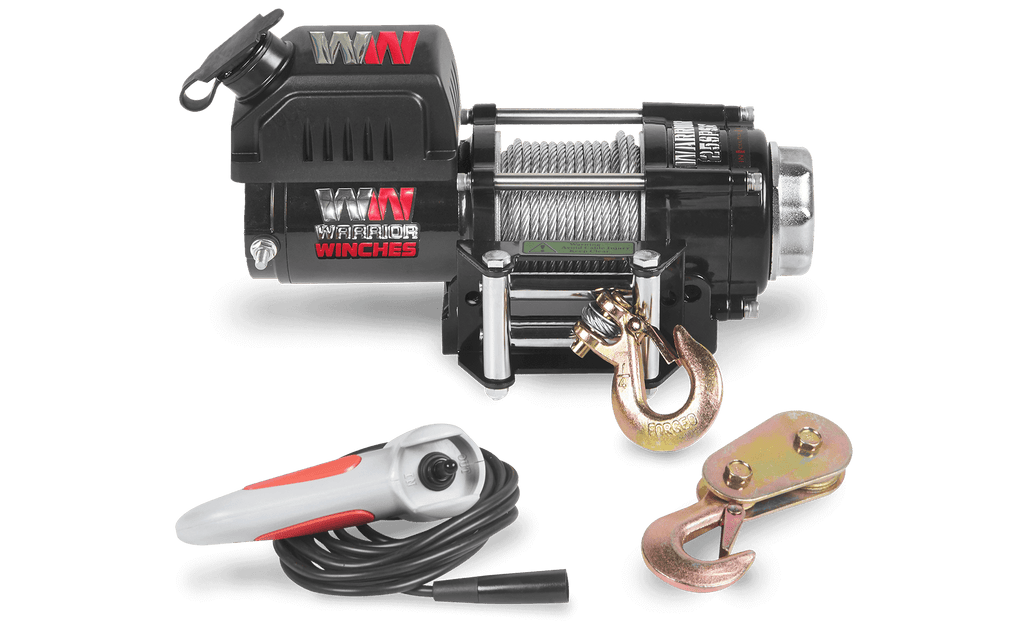

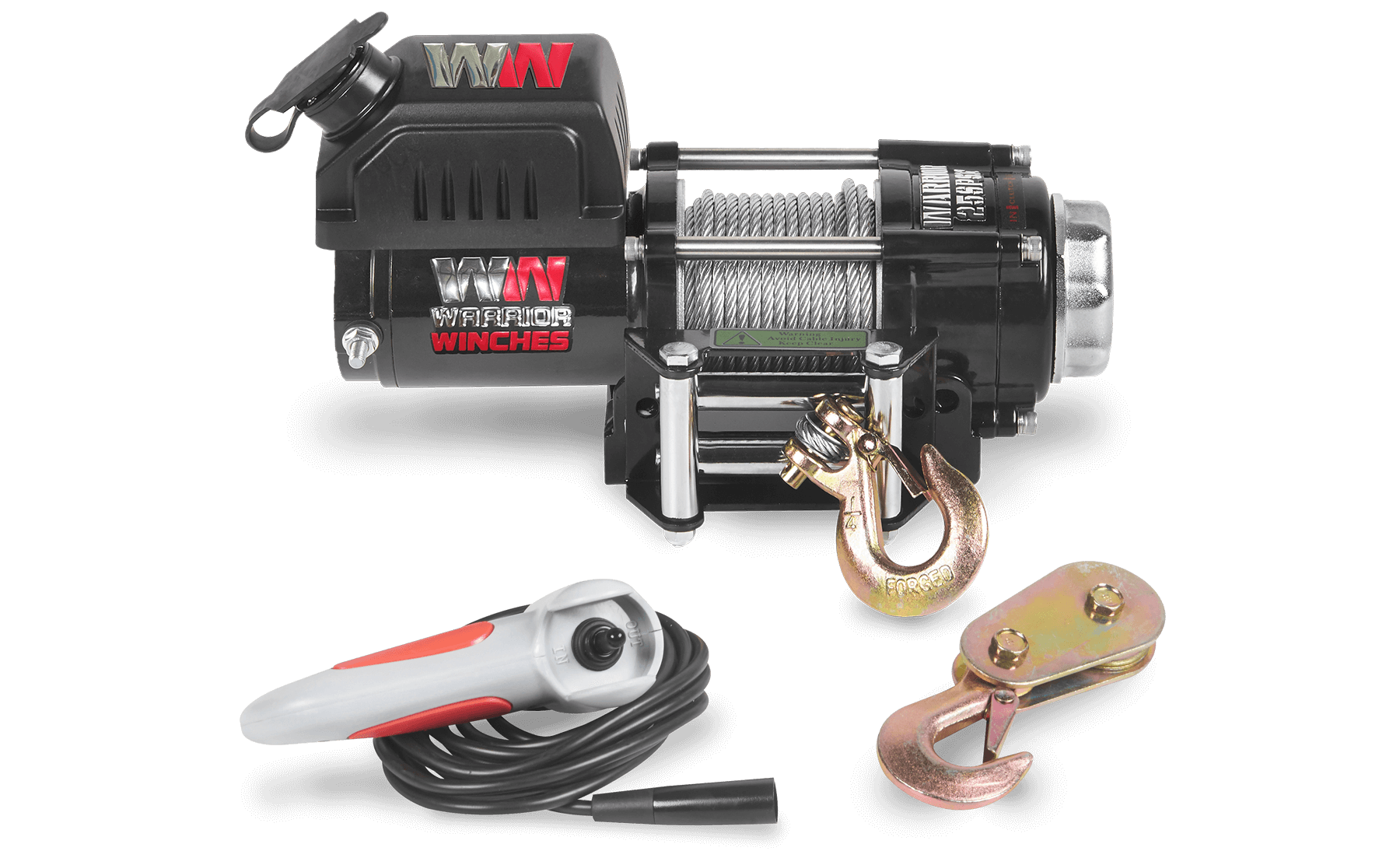

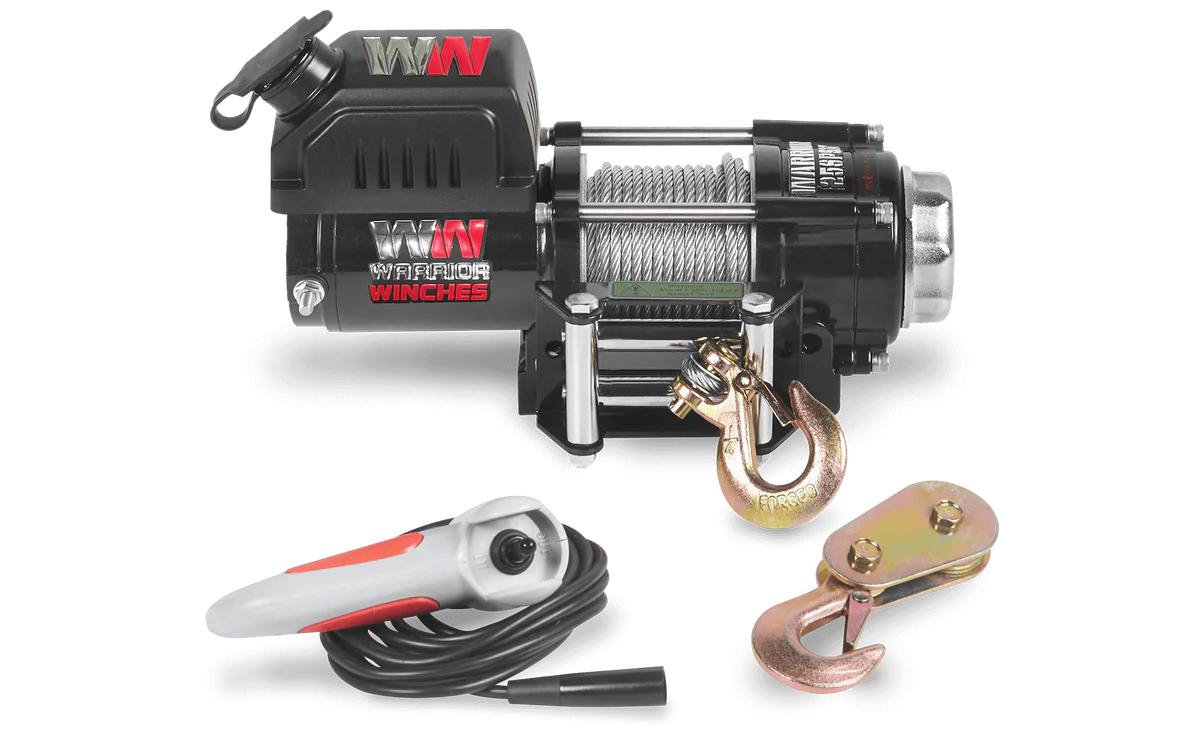

What's in the box:

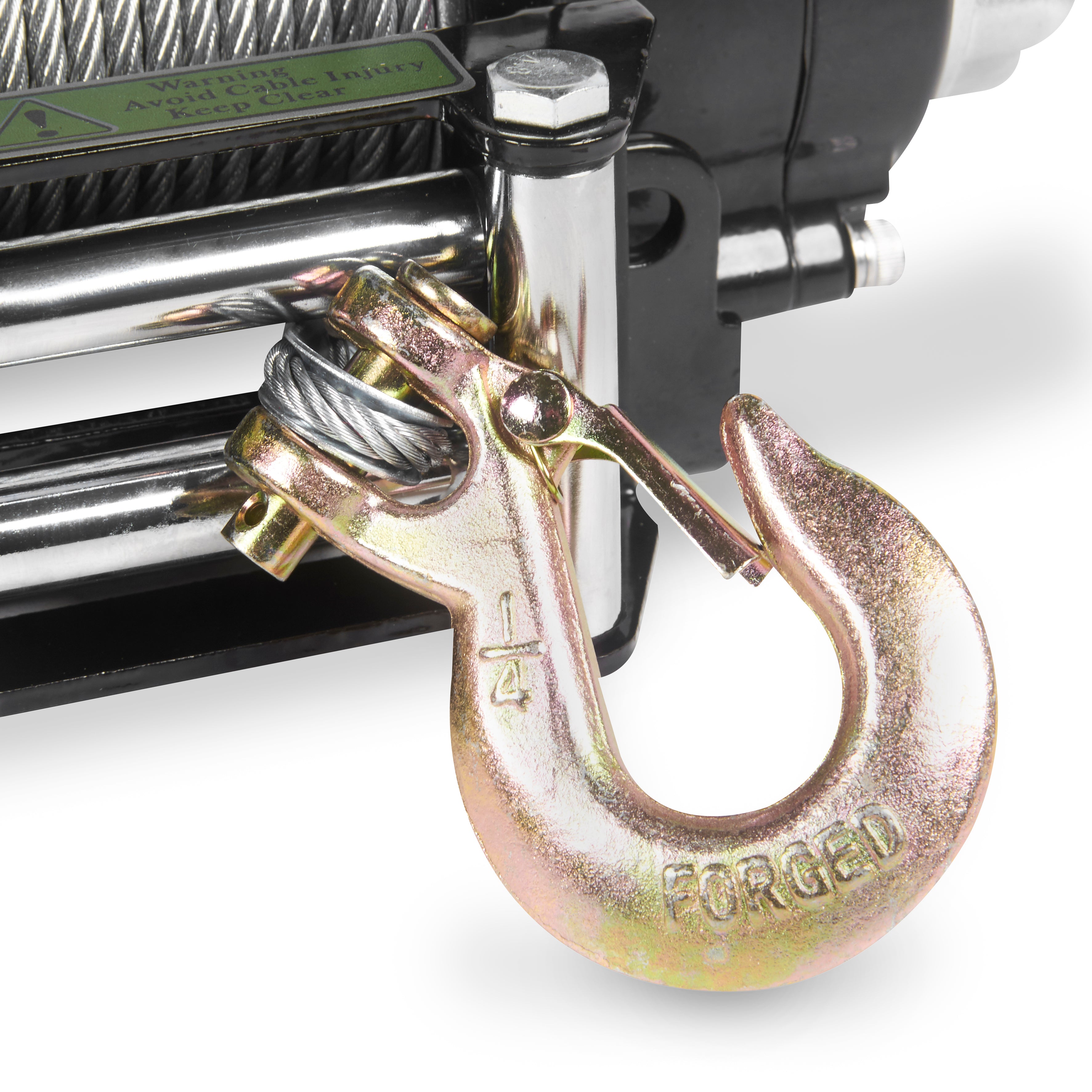

  • 1/4 Hook
  • 2 Tonne Pulley Block
  • 3.8m Ninja Wired Remote Handset

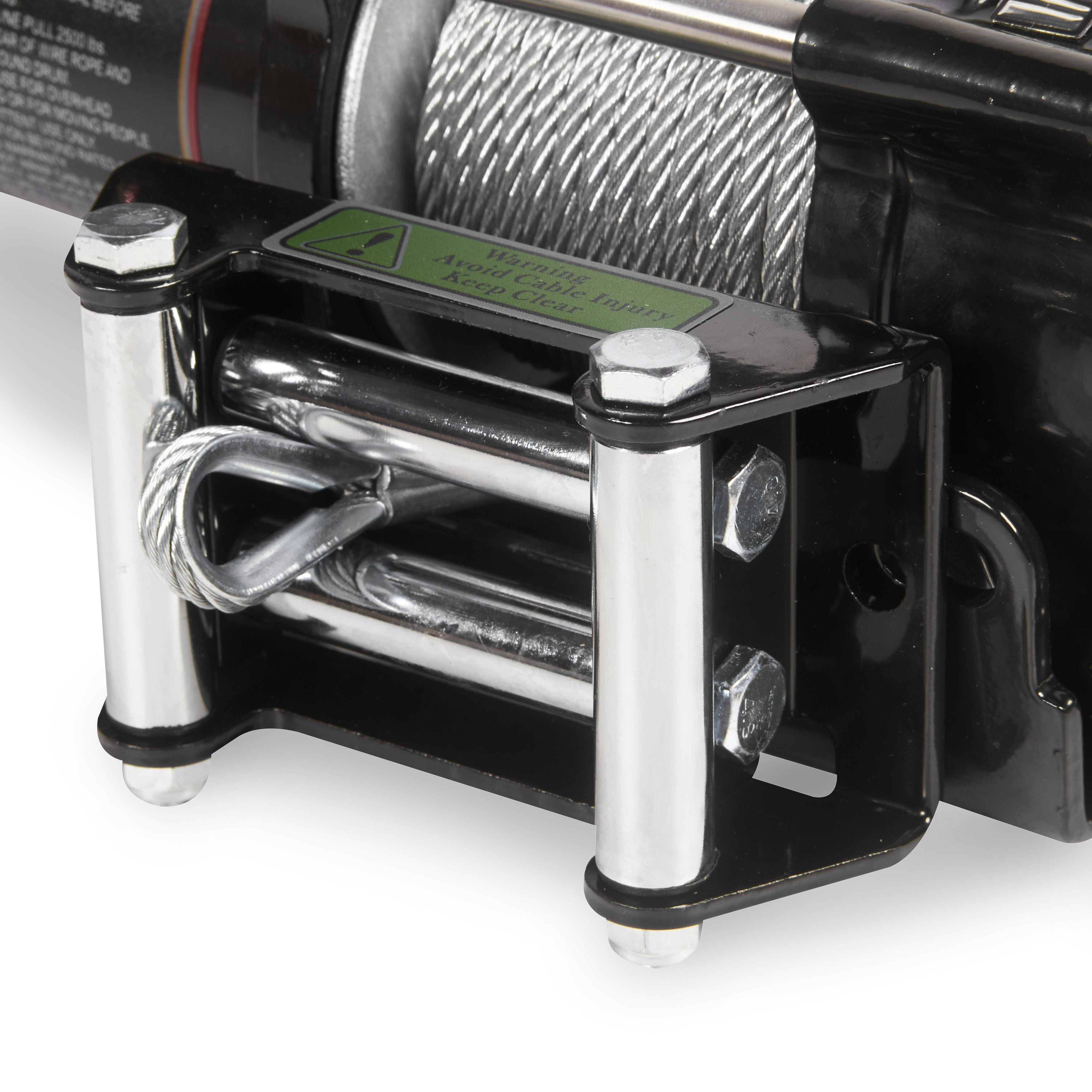

  • Heavy Duty Roller Fairlead
  • Wire Rope
  • Mounting Tray
  • Mounting Hardware
  • Heavy Duty Battery Leads
