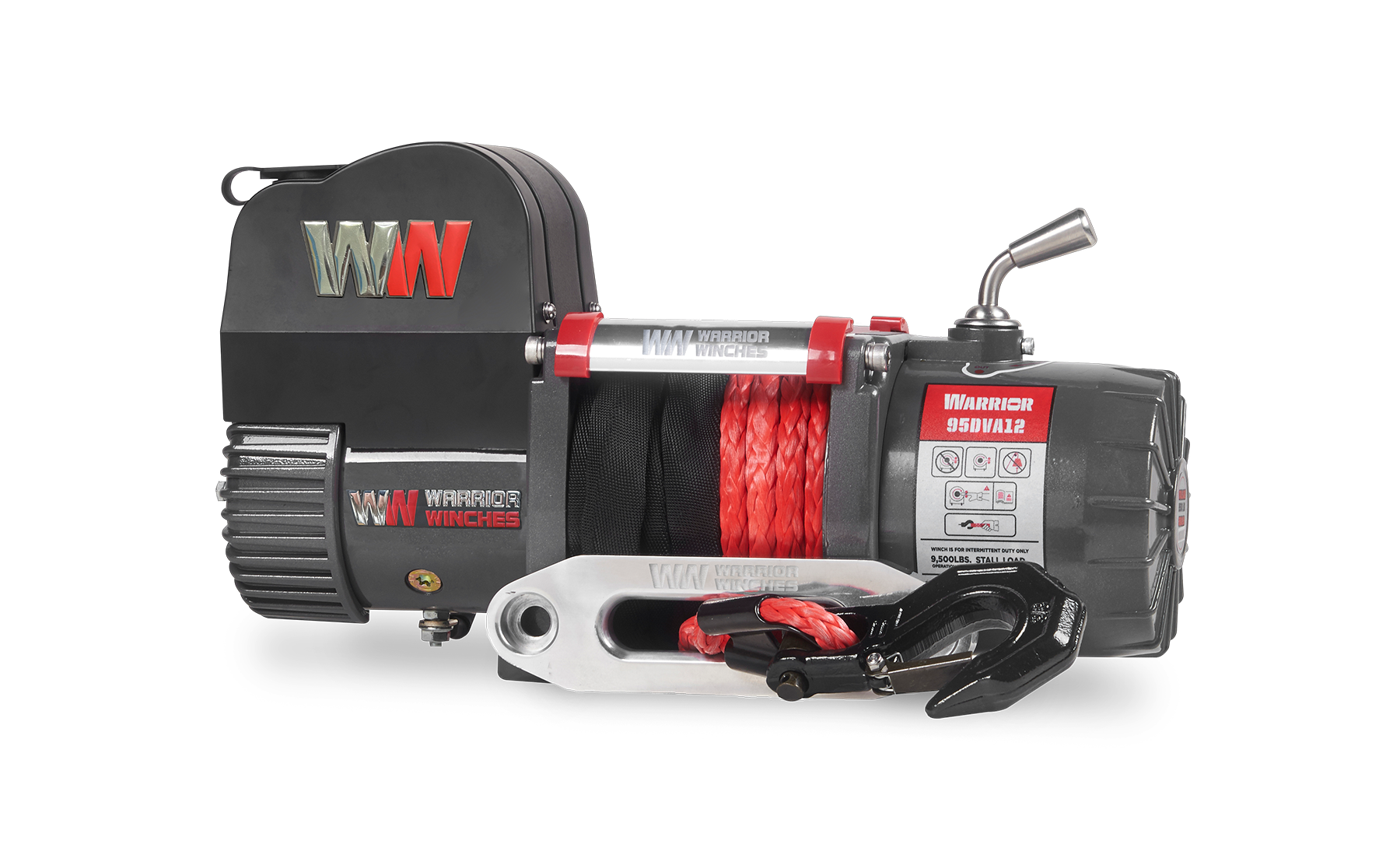

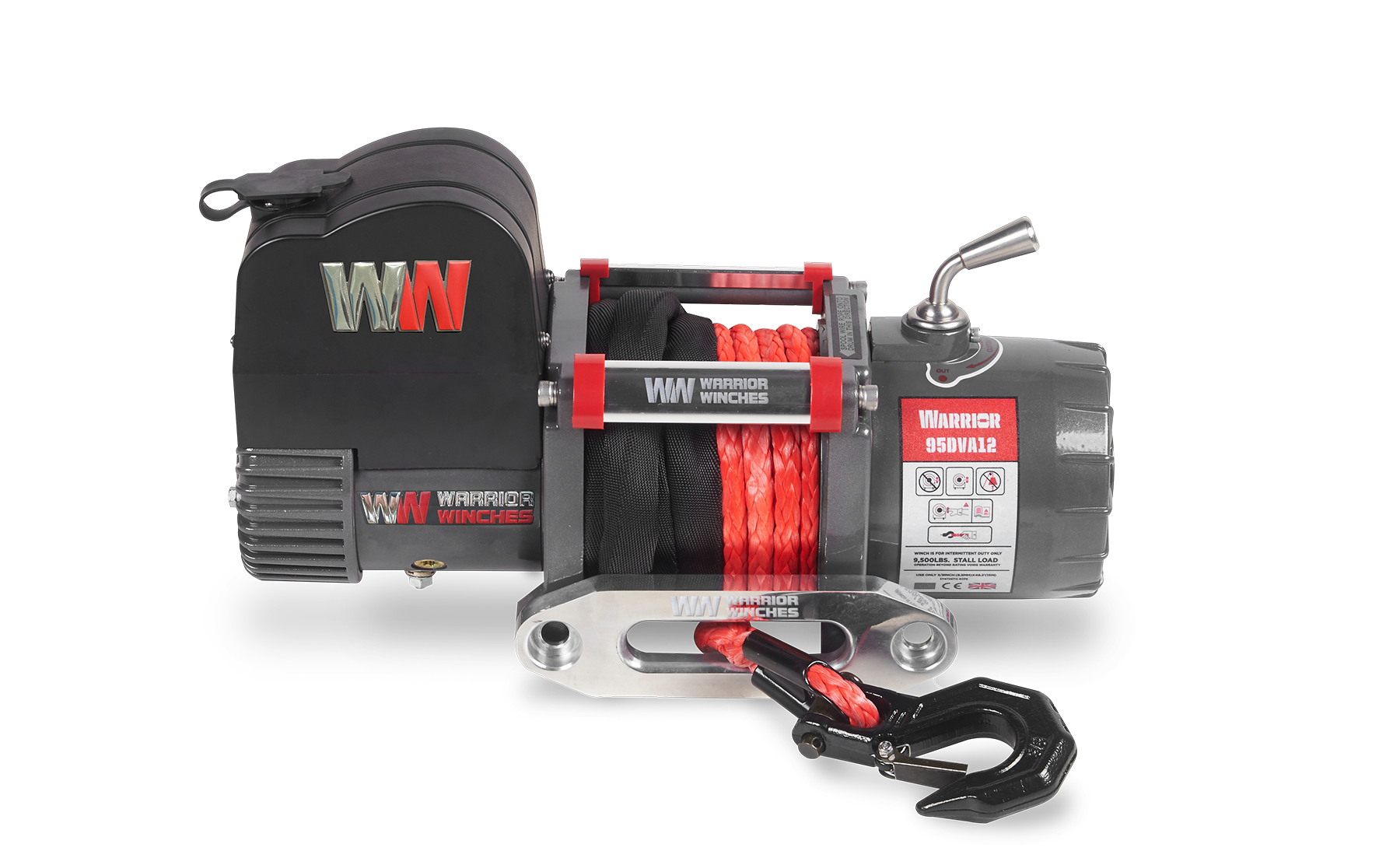

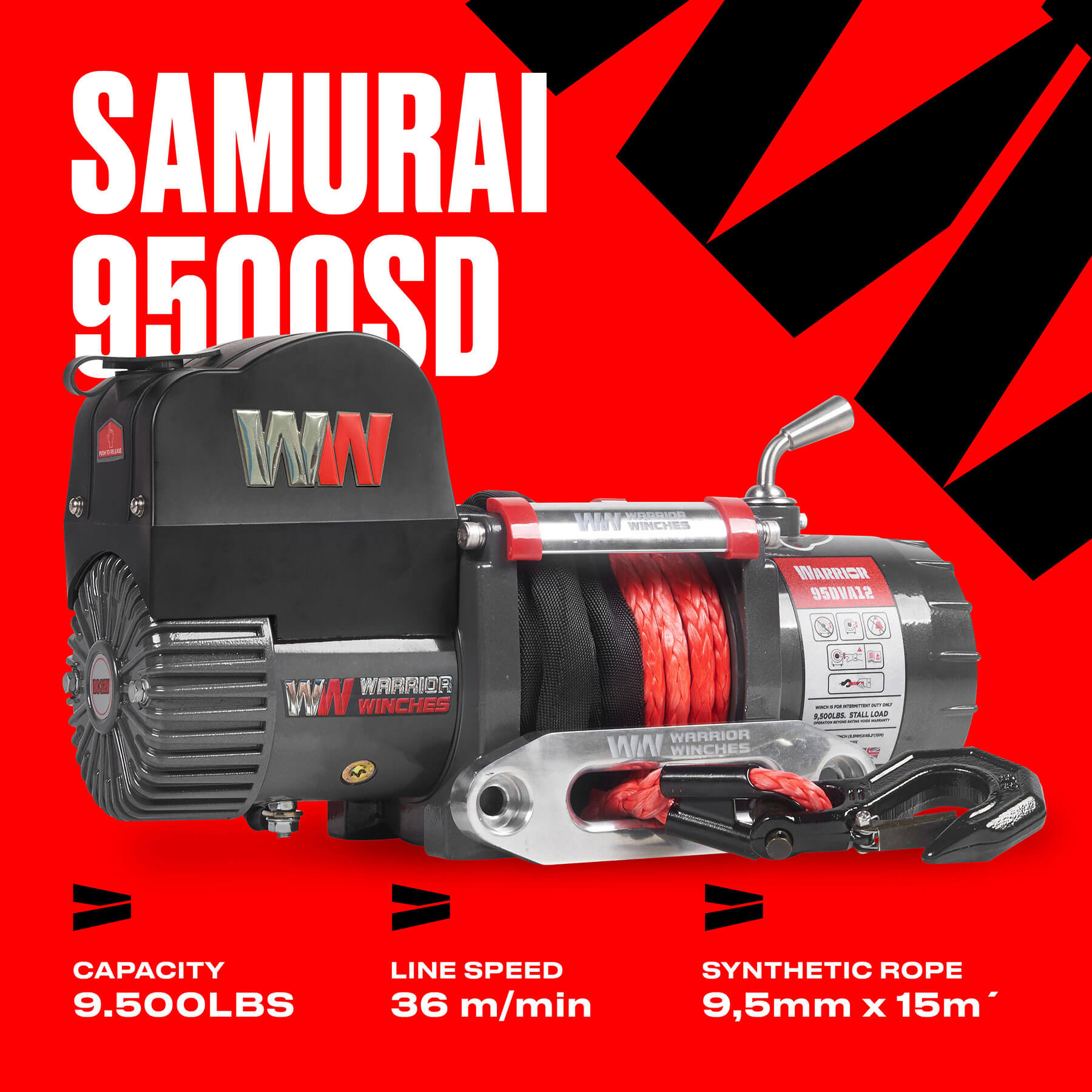

Warrior Samurai V2 9500lb Short Drum Next Generation Winch
The Warrior Samurai just got even better. Taking their premium offering and making it more compact for space saving and easier transportation, the Warrior Samurai V2 next-generation winch is now available with a short drum.
The short drum winch is the preferred choice of the British Military on their specialist vehicles currently serving in action – so you know you can rely on its power. Keeping the same high speculation in a compact package, this winch has a line capacity of 9500LB or 4500KG to get the job done with ease.

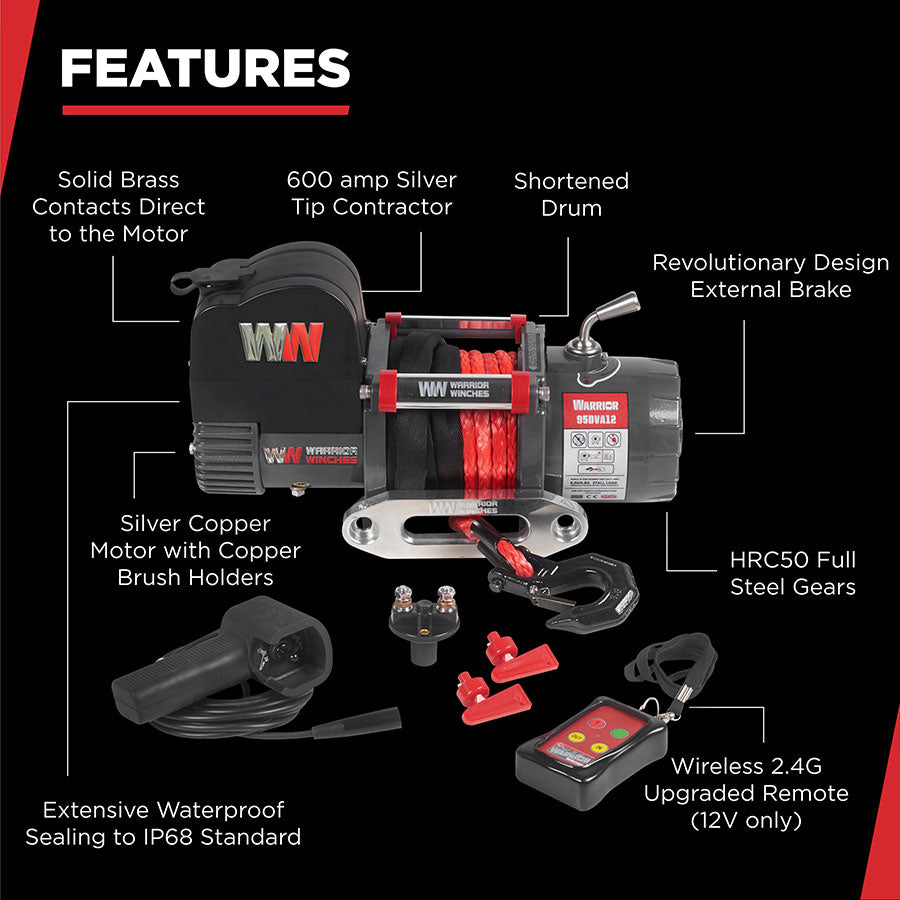

As well as its strength, this upgraded Warrior winch features a high-quality wound motor with brass contacts going direct to the motor for efficient running. Also boasting a heavy-duty waterproof solenoid, double sealed drum, and full steel planetary gearing that runs quietly to keep the peace.
But the stand-out feature is the addition of a revolutionary new external braking system. Unlike standard winch brakes, the V2 Samurai brake is at the end of the gearbox rather than inside the drum. Making it even faster with a lower amp draw and higher capacity for load holding and lowering – the benefits are numerous. Also reducing heat build-up around the drum, making it extra safe to use with synthetic rope.
With a line pull of 2.2 m/min (320 Amps) at full load, you can get the job done quickly and easily. Backed up with a limited lifetime warranty and 3 years of electrical cover; trust in Warrior power.

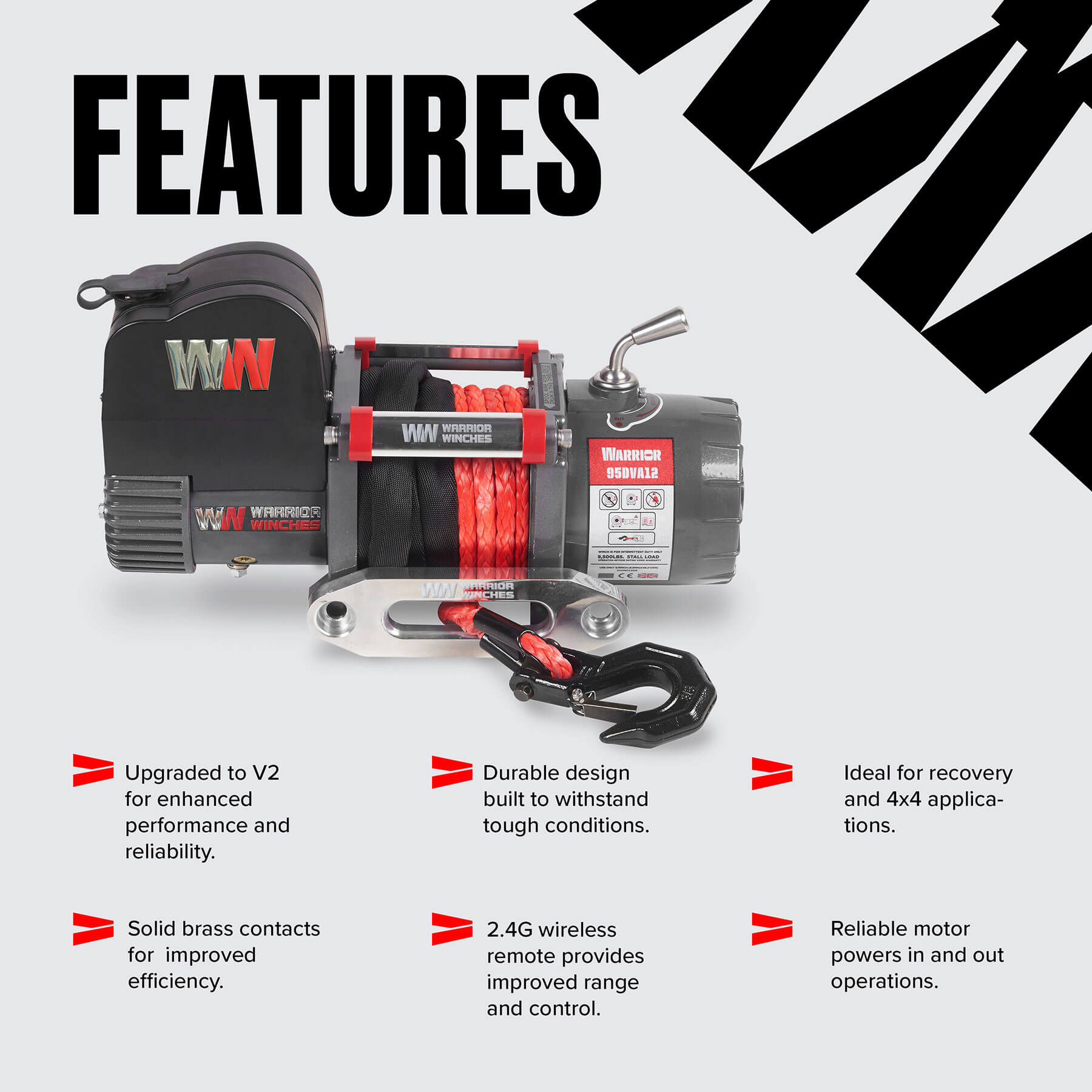

Standard Features:
♦ Line Capacity: 9,500lb (4,500kg)
♦ Motor: Series Wound Motor - Powers In and Out
♦ Gearbox: Freespooling Clutch - Allows cable to be unwound manually
♦ Warranty: Limited Lifetime Warranty with 3 Year Electrical Cover

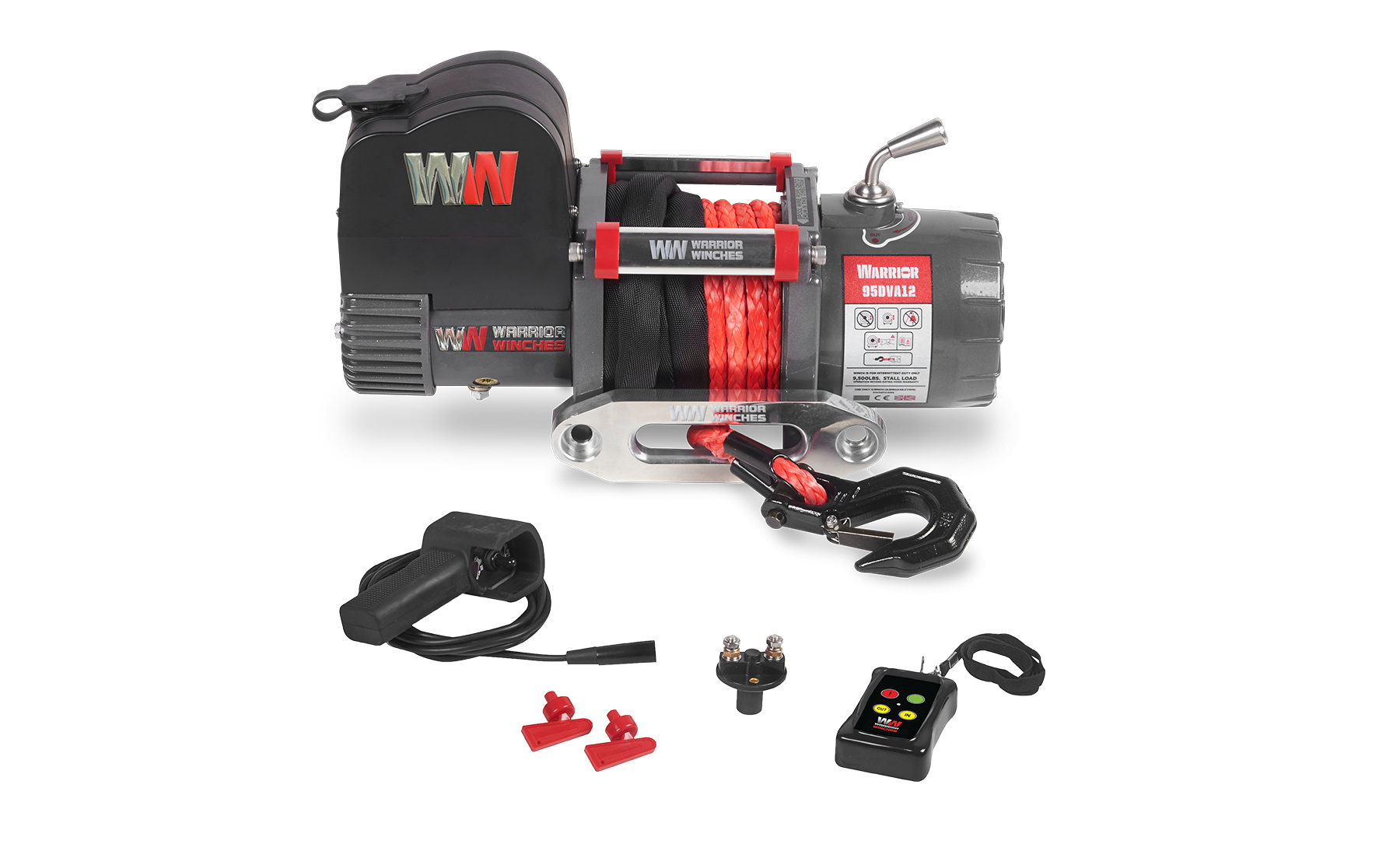

Accessories:
♦ Wired Hand Control: 3.8m Wired Hand Control
♦ Wireless Control - 12V MODEL ONLY: Pre-Installed Heavy Duty Wireless Control with Lanyard (See note below)
♦ Mounting Plate: Available as optional extra
♦ Mounting Bolts: Included for Standard installations
♦ 1.5m Heavy Duty Battery Cables (May need extending dependent on application)
♦ Battery Isolation Switch (Failure to fit will invalidate warranty)
♦ Instruction Manual
Other Information:

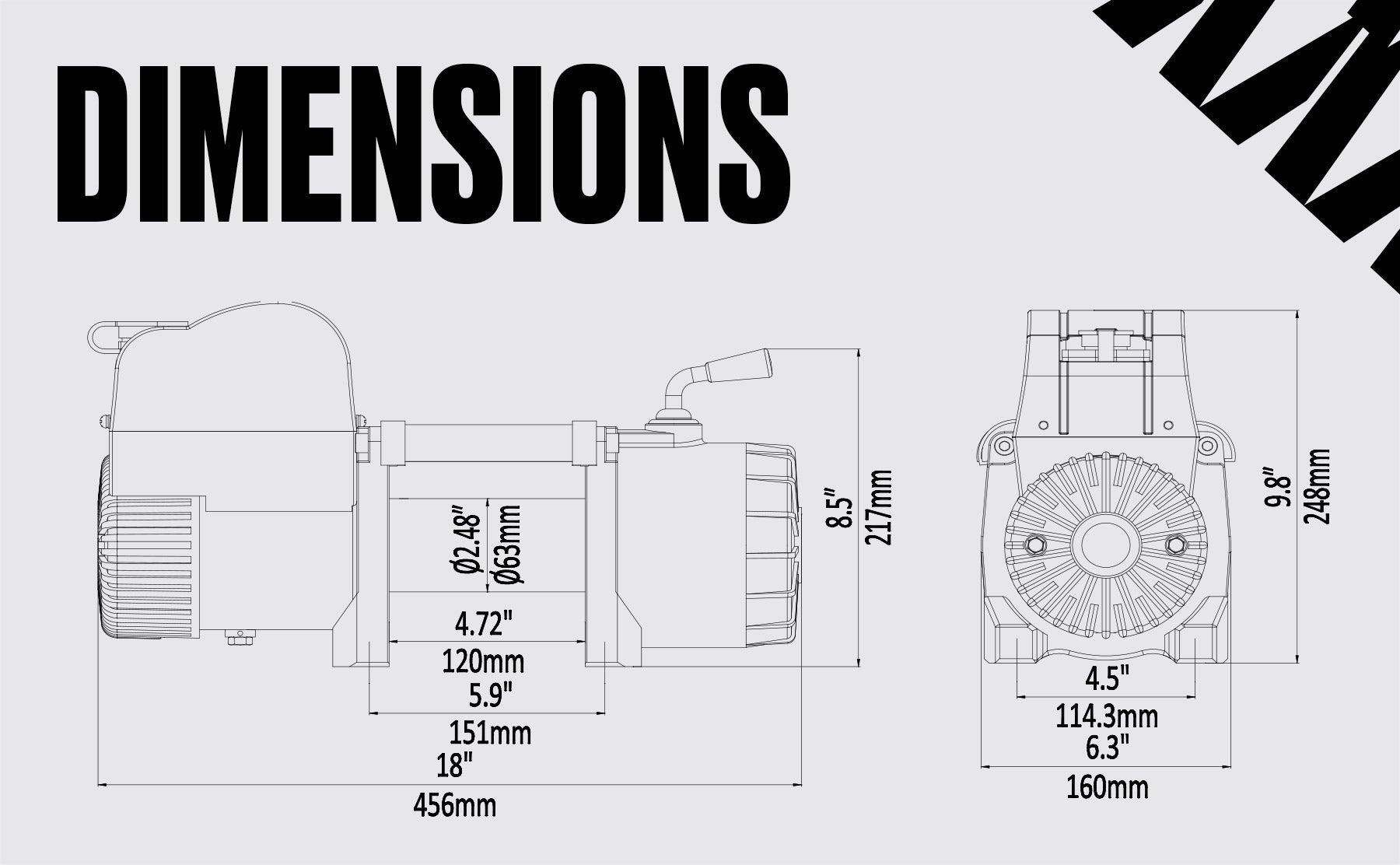

♦ Dimensions: 456mm L x 160mm D x 248mm H
♦ Mounting Bolt Pattern: 254mm x 114.3mm

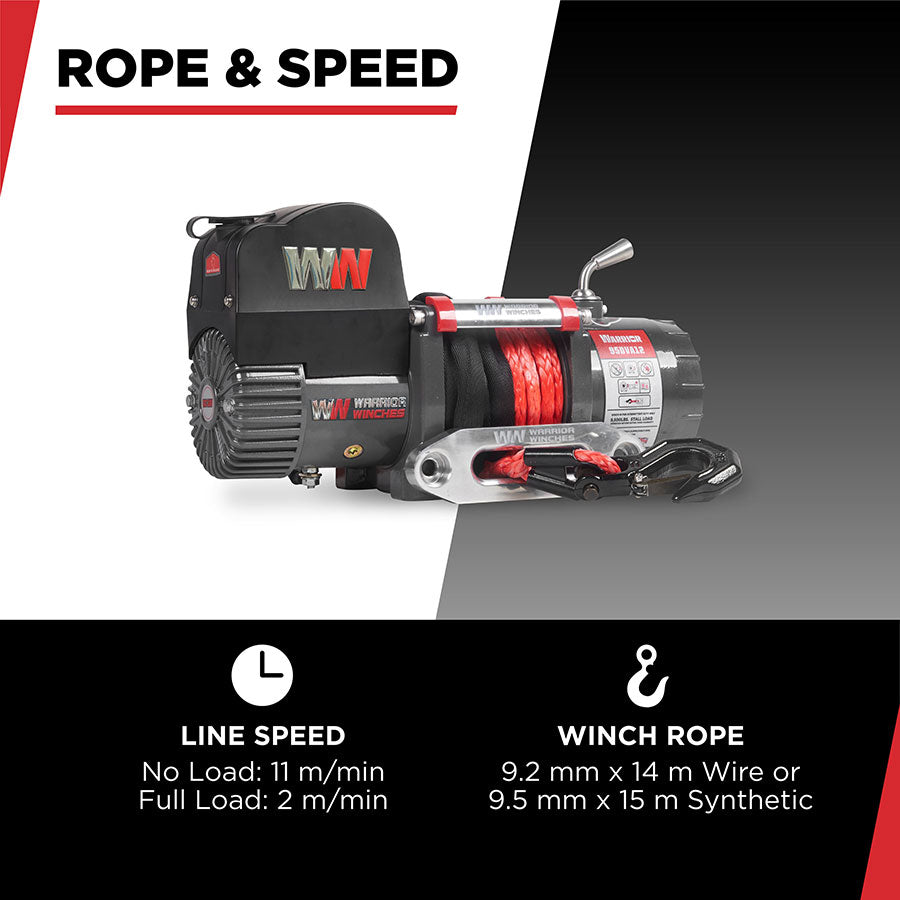

♦ Line Pull - No Load: 10.2 m/min (50 Amps)
♦ Line Pull - Full Load: 2.2 m/min (320 Amps)
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
