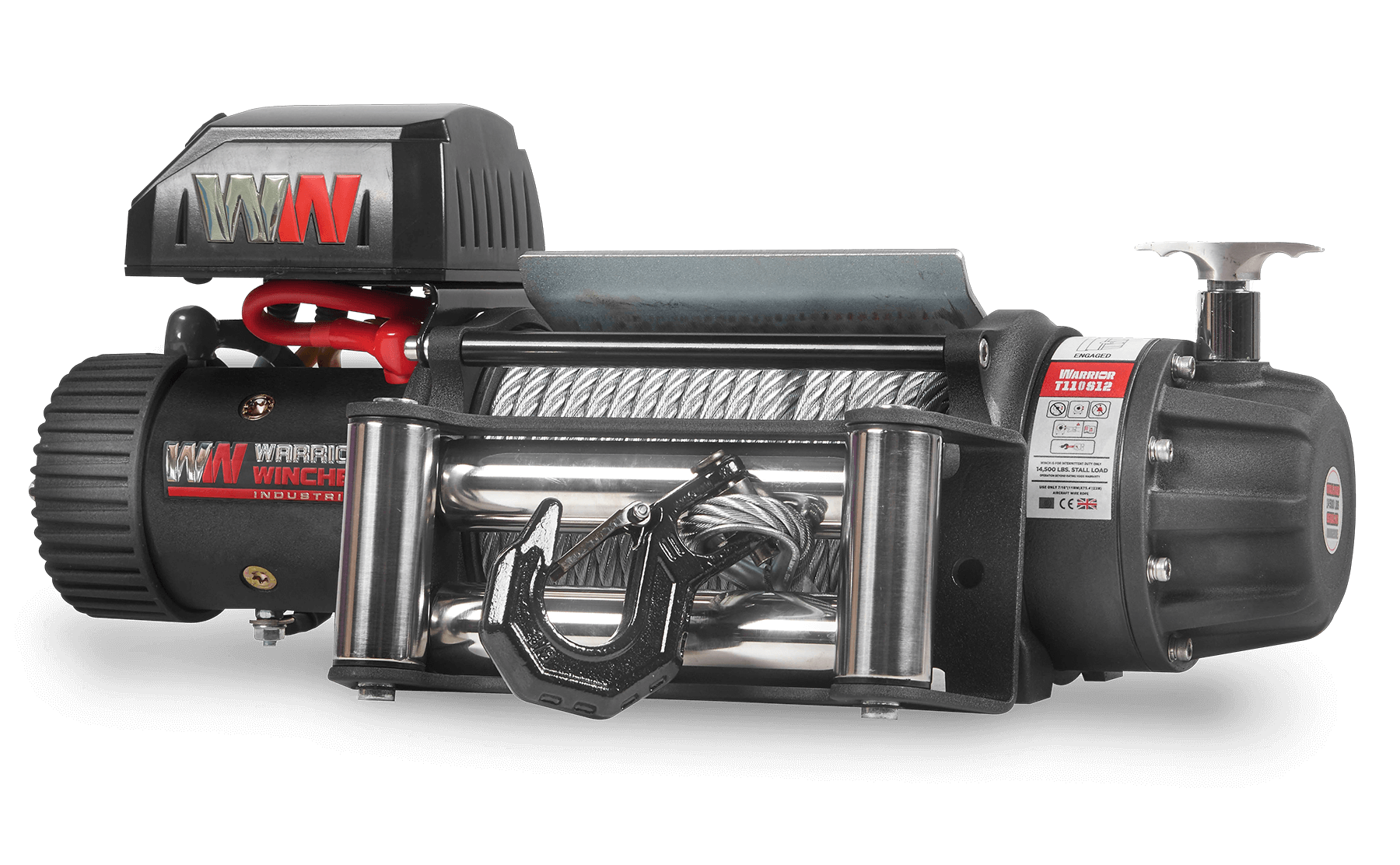

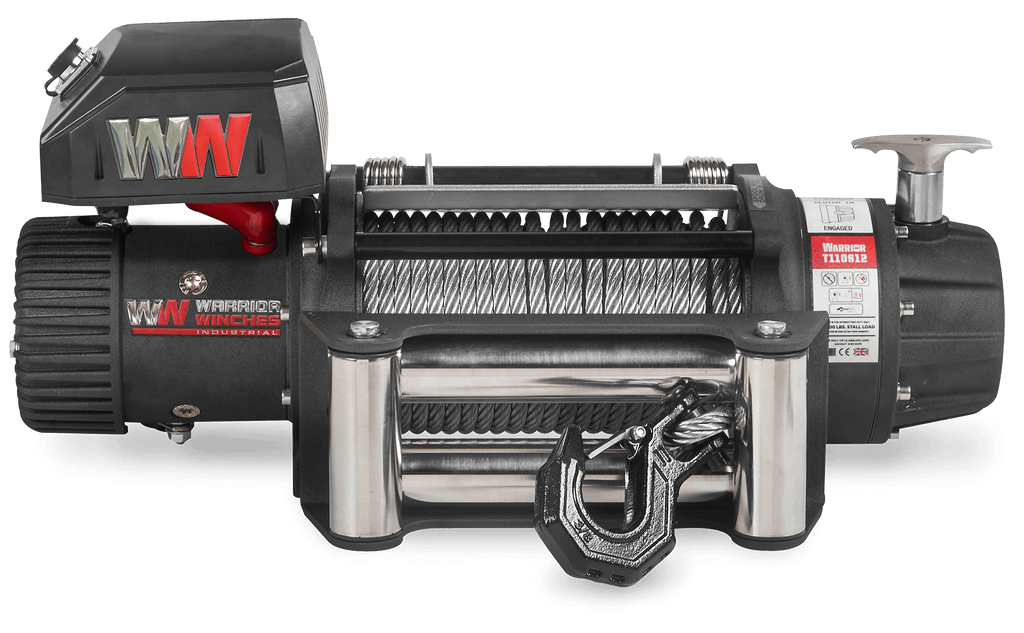

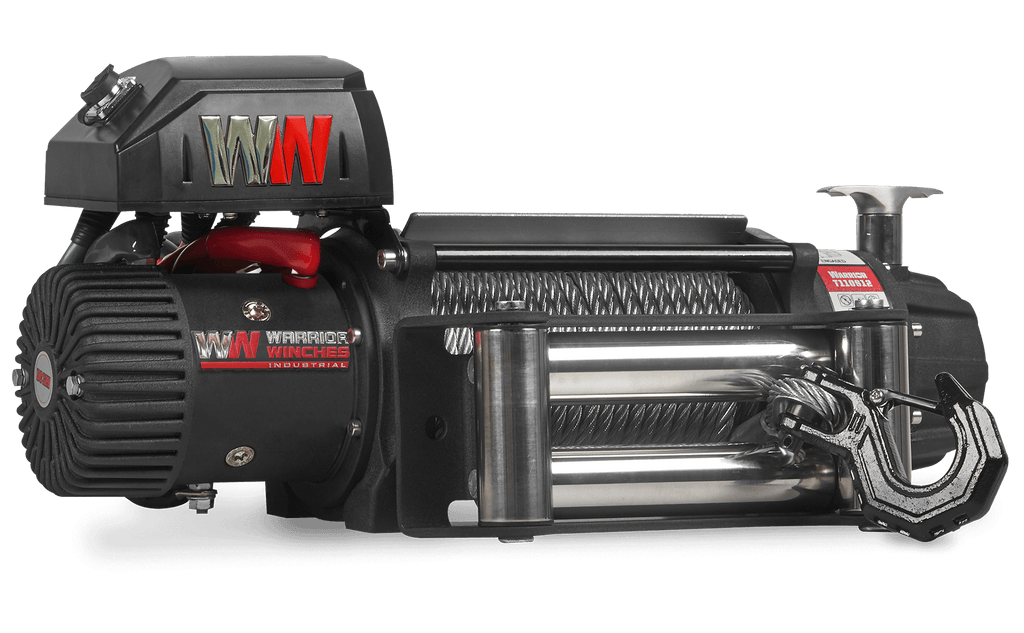

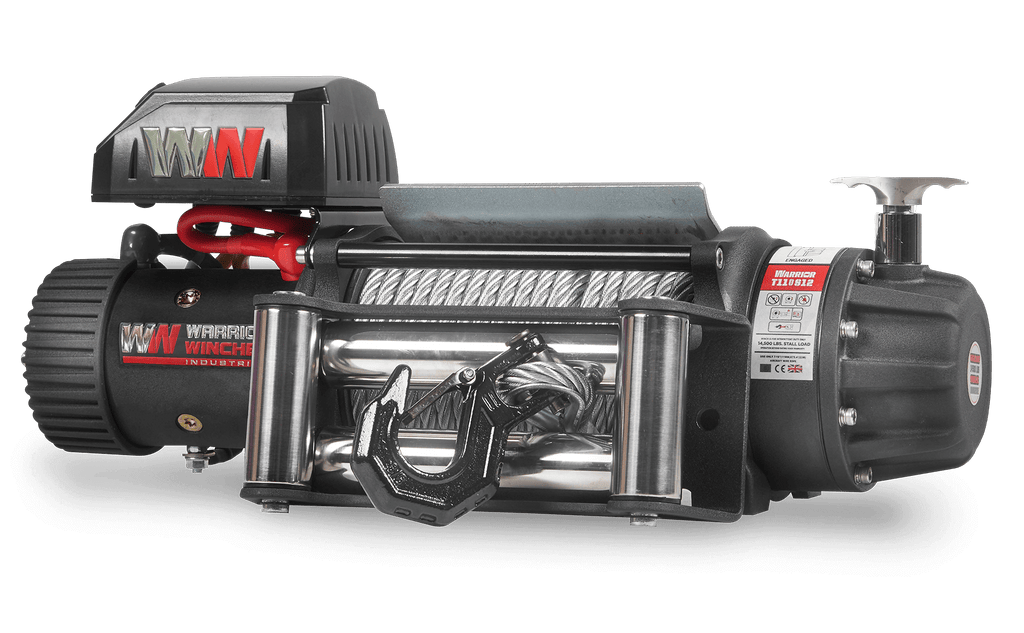

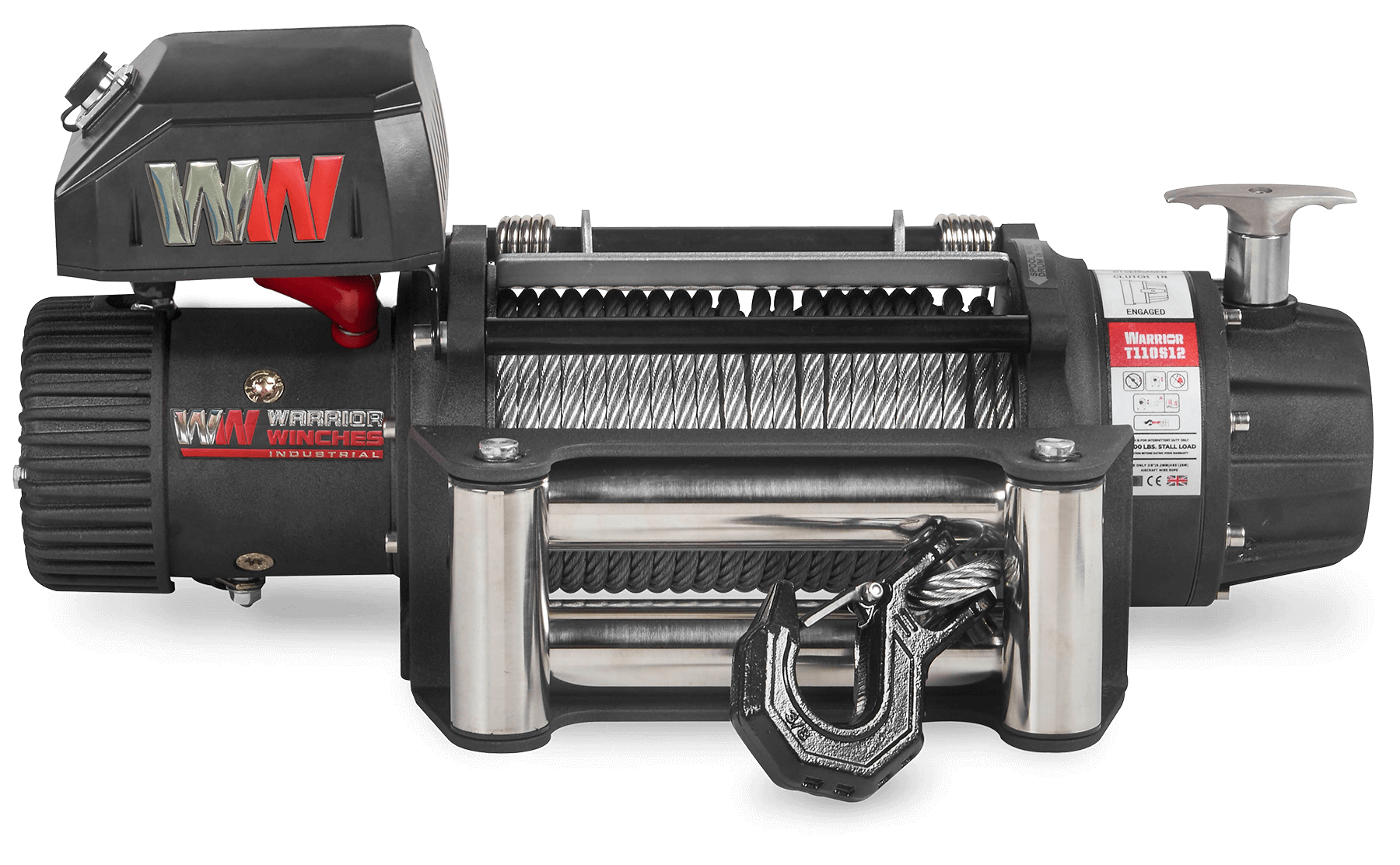

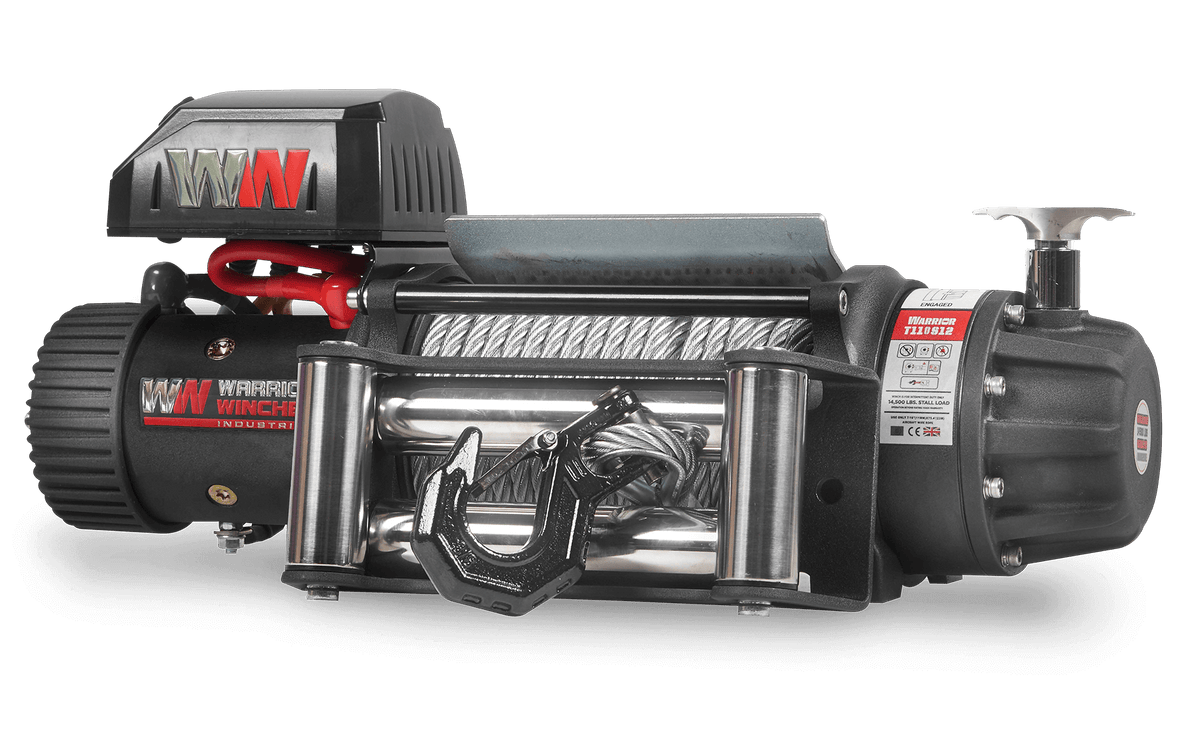

Warrior T1000-100 10000lb Severe Duty Winch - 12v Steel Rope


Price:
Sale price£965.99
In stock (Delivery in 1-2 working days)
You may also like:

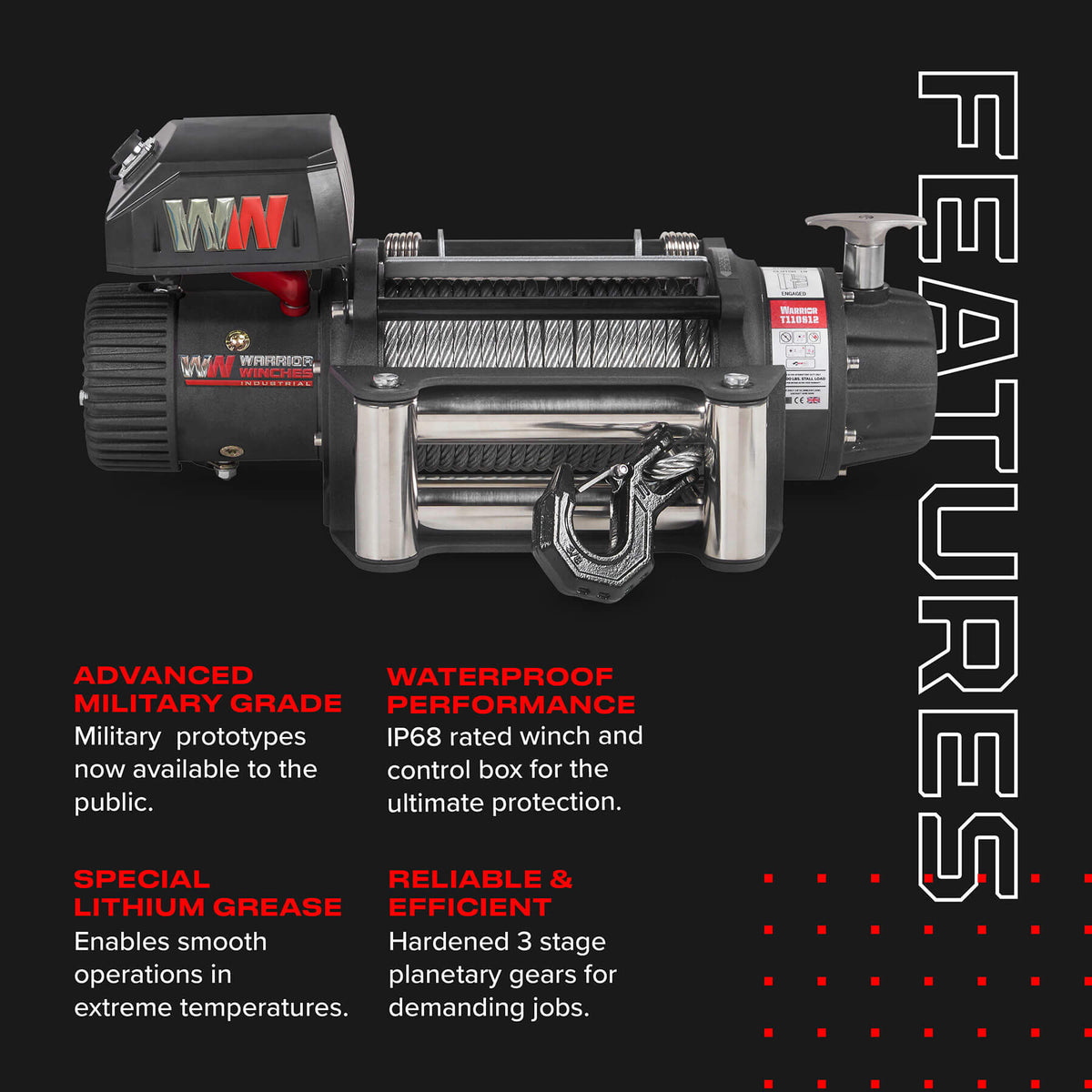

Features

  • MILITARY QUALITY – IP68 Rated Military Grade winch & control box.
  • REVOLUTIONARY DESIGN – Features an external brake for added safety.
  • HARD-WEARING – Special lithium grease ensure operation in extreme temperatures while the powder coating protects against corrosion.
  • STEEL STRENGTH – Complete with stainless steel fittings as standard.
  • EFFICIENT POWER – Hardened 3-stage planetary gears ensure reliability.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Originally designed as prototypes for military application – the T100 range of Severe Duty Warrior winches are in the highest class of reliable power. Able to perform in even the most severe climates and harshest environments – it’s power even the army would trust in. After countless successful operations in the field, the T100 range is now available for general use.

With a line capacity of a huge 10000lb – it’ll get any job done with ease, ideal for industrial or commercial applications that require a battle-ready unit.

Hard-wearing is an understatement here. Special Lithium Grease ensures operation in extreme temperatures while the powder coating and stainless-steel features defy corrosion for long-lasting power. Also benefitting from a truly revolutionary design – the external brake is protected from overheating for reliability in harsh climates.

Undoubtedly one of the most advanced and durable machines on the market – why settle for less than the best?

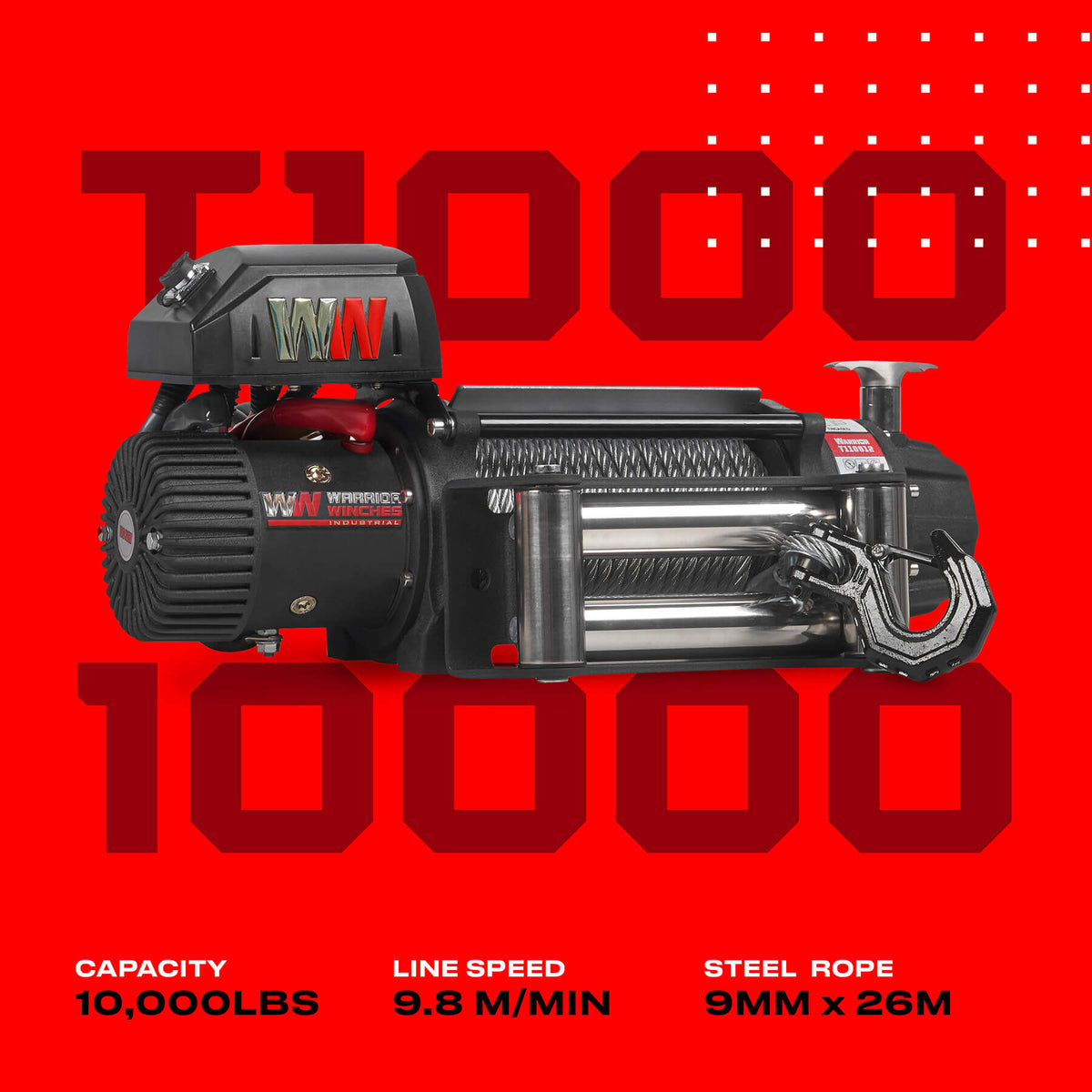

Rated Line Pull10000 lbs
Motor Type12V: Input: 6.2hp / 4.6 kW; Output: 2.8hp / 2.1 kW
Rated Volt12
Gearing228:1
ClutchManual
Braking ActionExternal Brake

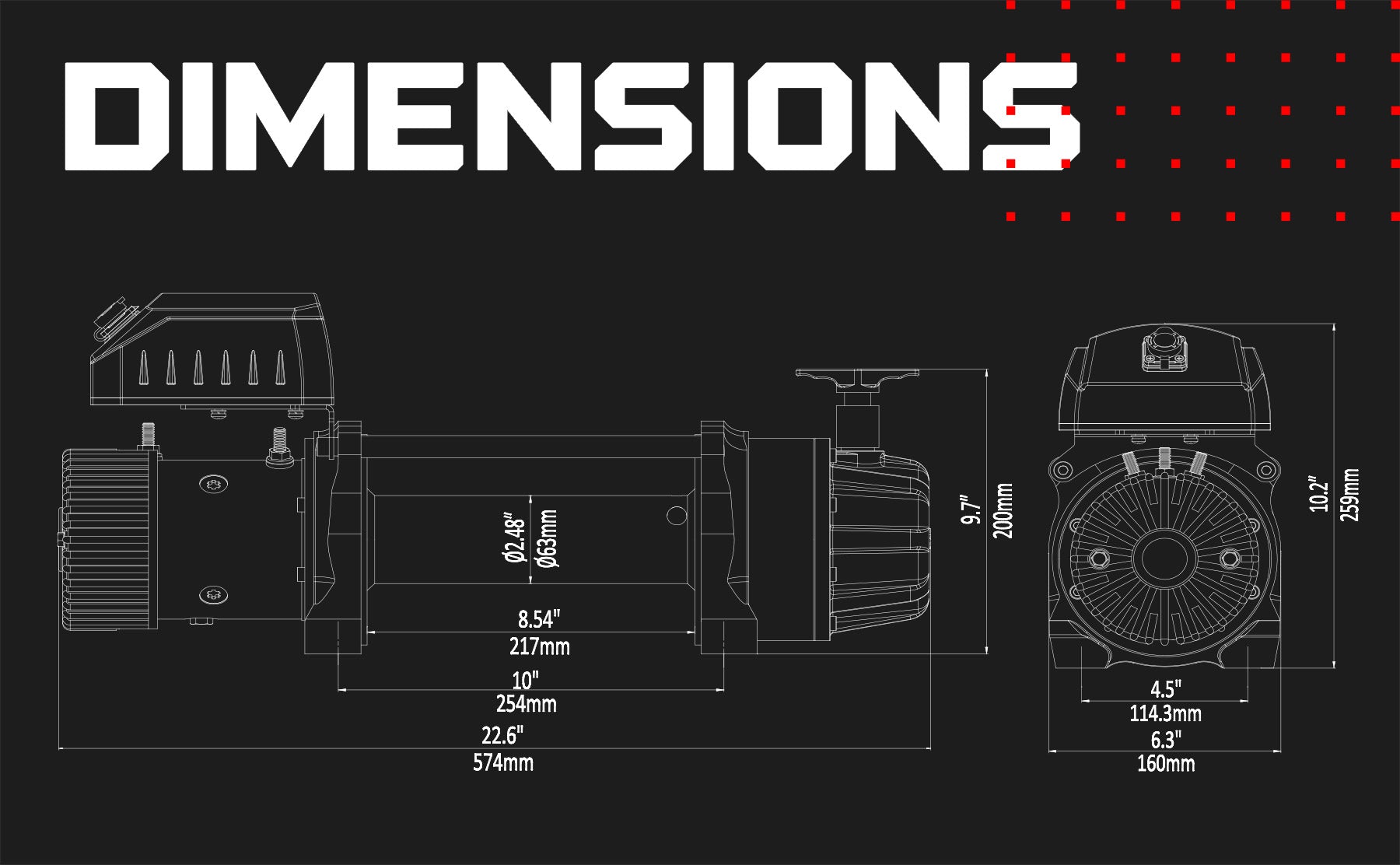

Drum Size (Dia x L)63 x 217 mm
Cable MaterialSteel
Cable – Dia x LSteel: 9mm x 26m
Mounting Pattern254mm × 114.3 mm mm
Dimensions574 x 160 x 259 mm
Weight 82.7kg
Warranty3 Years
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 10000 (4536) 16.1 (4.9)
2 7980 (3620) 36.4 (11.1)
3 6640 (3012) 61.0 (18.6)
4 5680 (2576) 82.0 (25.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 32.2 (9.8) 34.4 (10.5) 65 45
3000 (1361) 14.8 (4.5) 16.4 (5.0) 140 85
6000 (2722) 10.5 (3.2) 12.5 (3.8) 260 140
8000 (3629) 7.5 (2.3) 9.8 (3.0) 320 175
10000 (4536) 5.2 (1.6) 7.5 (2.3) 380 210

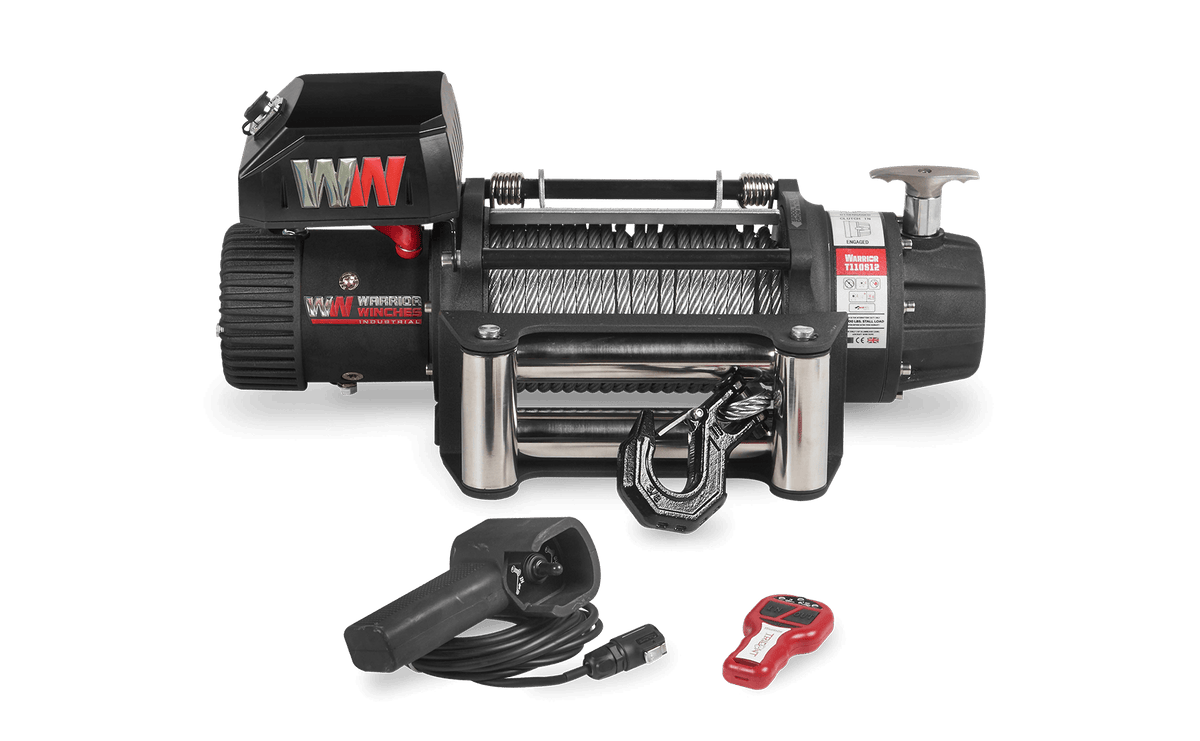

What's in the box:

  • Trident 2.4G Wireless Remote
  • Heavy Duty Wired Remote Control
  • Hook
  • Steel Rope
  • Heavy Duty Stainless Steel Roller Fairlead
  • Stainless Steel Mounting Hardware
User Manual Download
Brochure Download
