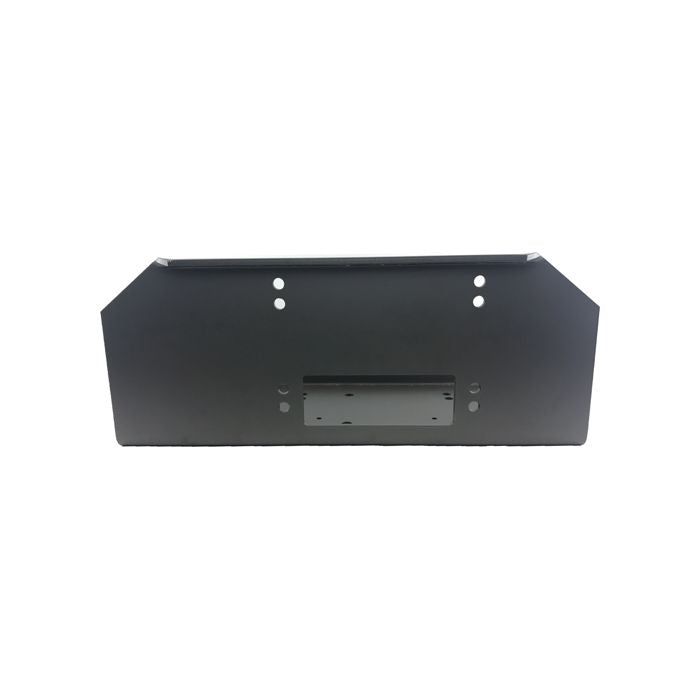

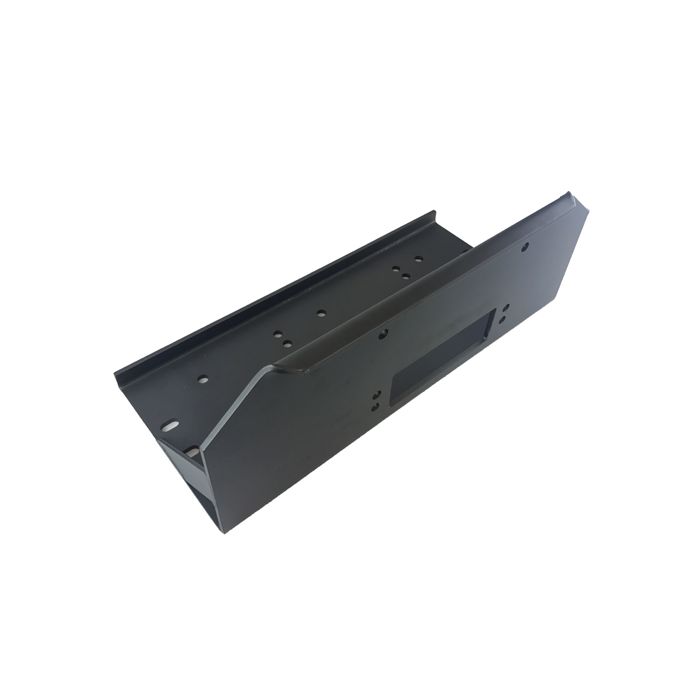

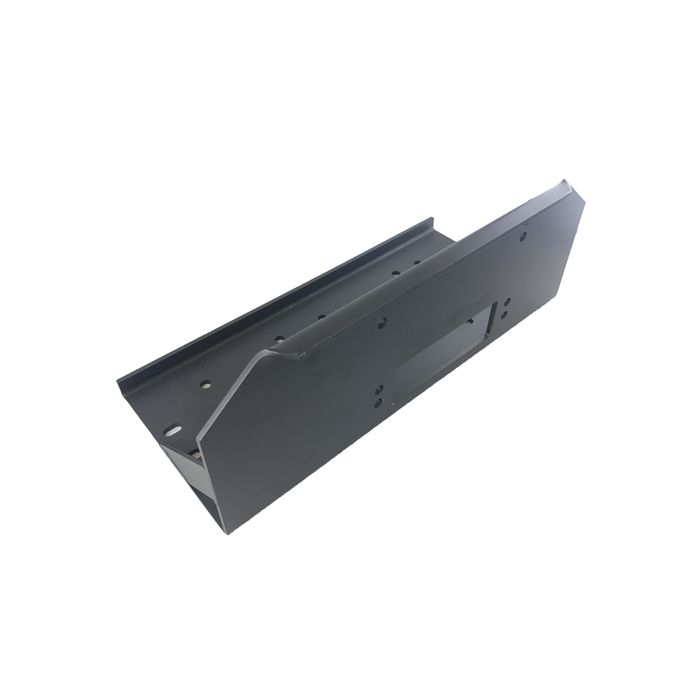

This heavy duty winch mounting plate is perfect for use with the Warrior Samurai 17500 electric winch, but is also designed to be used with other winches of up to 22,000lb, Please see below for fitment options.
Finished in a durable black powder coat, it is predrilled for most standard winches and can be modified to suit your own requirements when installing.
There is a return fold on the front leading edge of the plate which is drilled and slotted to mount the fairlead too along with holes for front mounted winches.
Fitment variations
♦ Foot forward mounting for the Samurai 17500 model rated at 18,000lbs
♦ Foot down mounting rated at 22,000lbs
Dimensions:
♦ Front mounting pattern - 254mm x 114.3mm & 254mm x 165.1mm
♦ Bottom mounting pattern - 254mm x 114.3mm & 254mm x 165.1mm
♦ Overall = 640mm x 285mm x 260mm
♦ Material Thickness = 7mm
♦ Fairlead hole Centres = 255mm
Please cross reference the mounting pattern of your winch with the above dimensions
