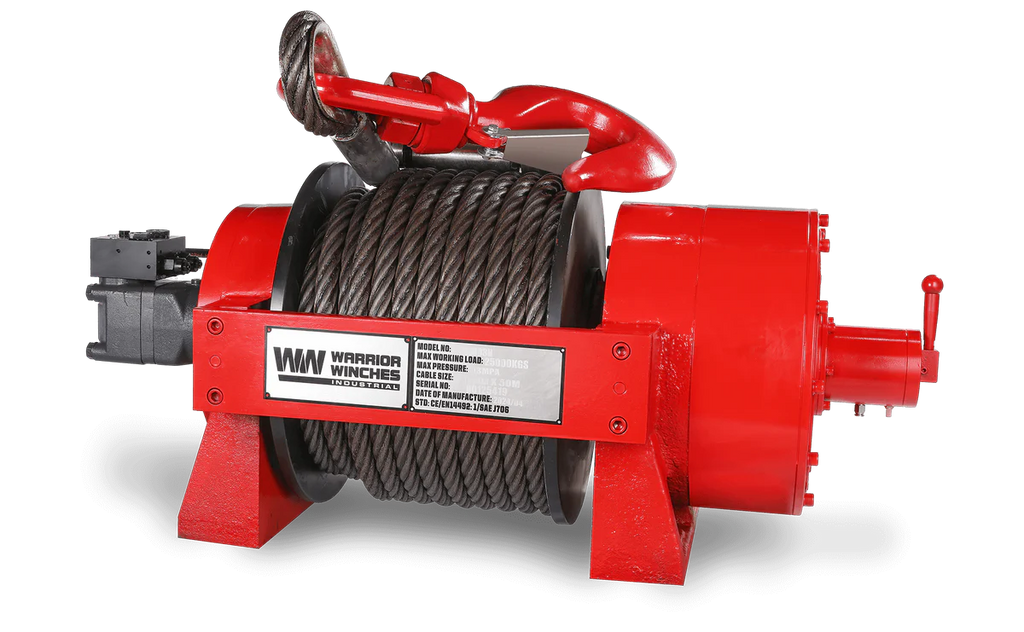

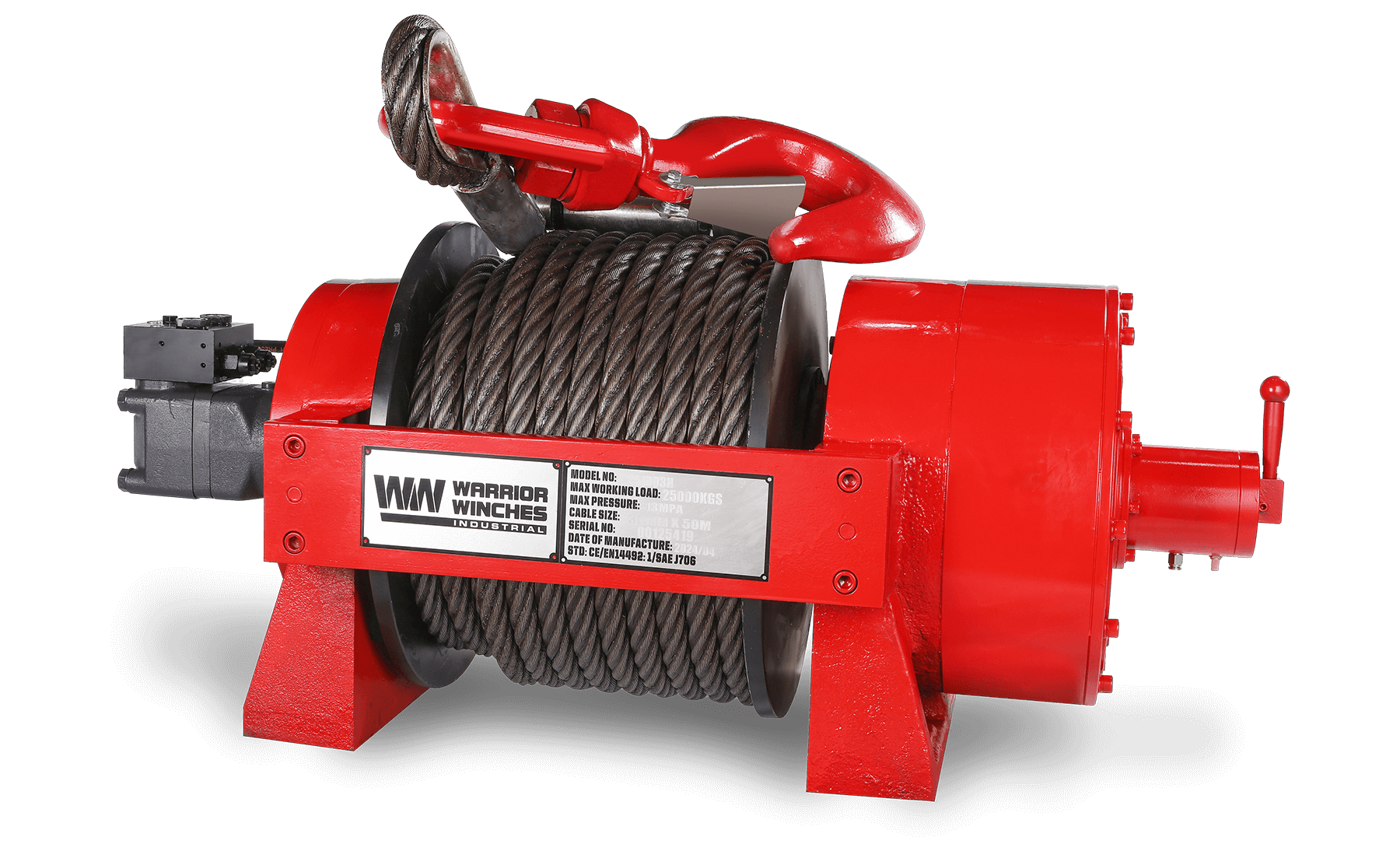

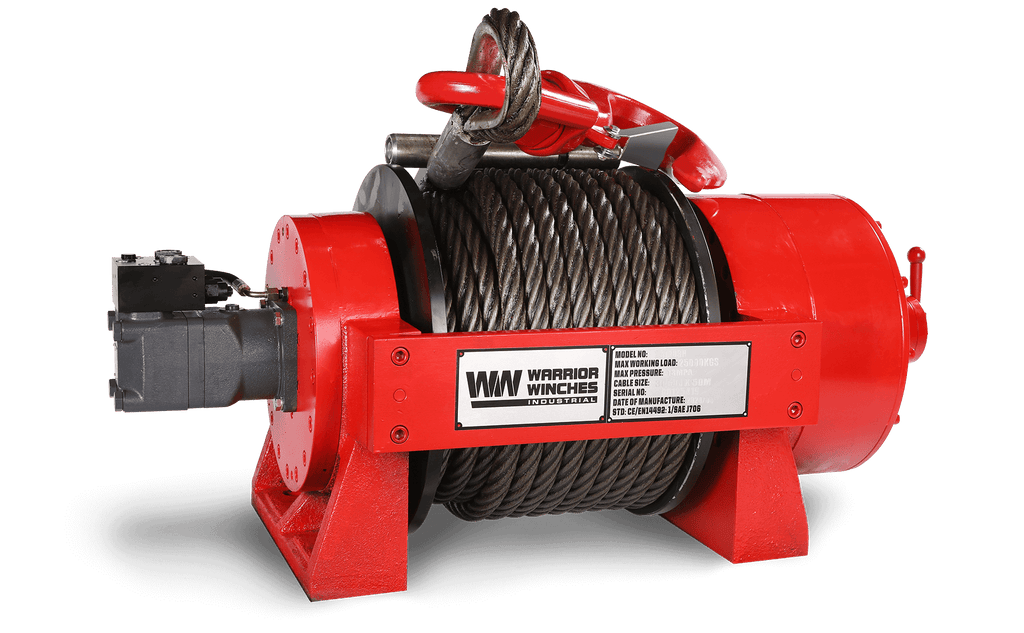

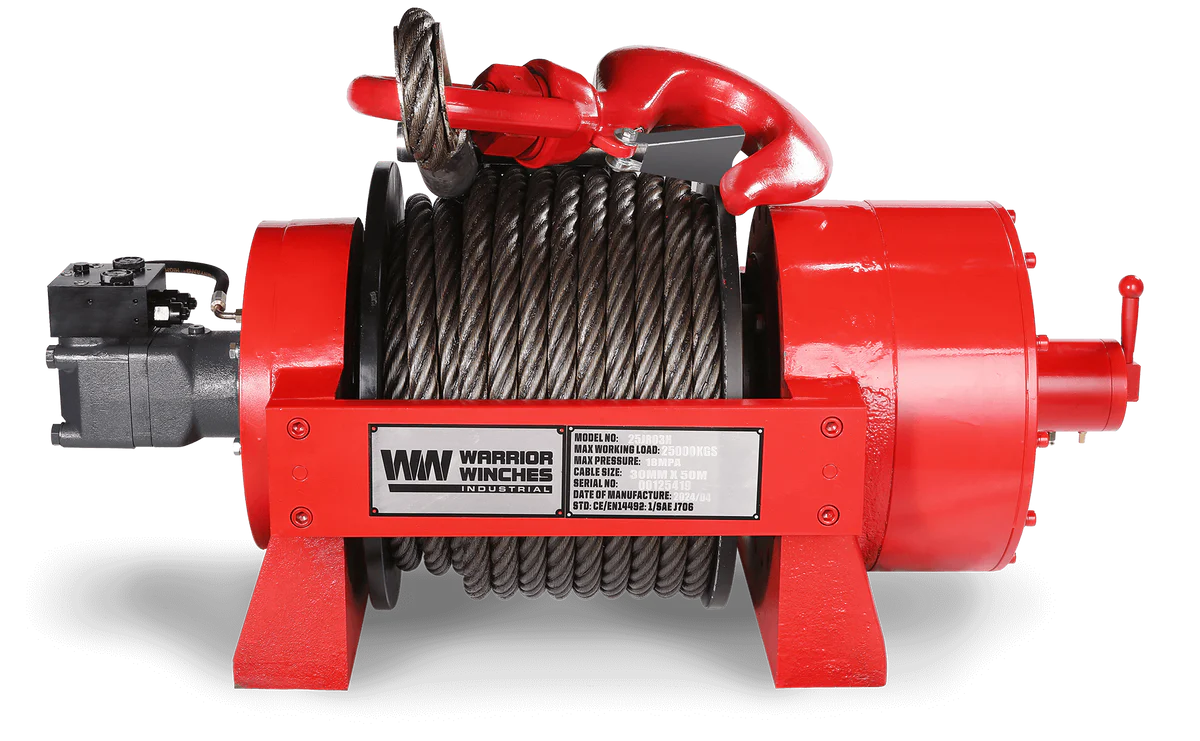

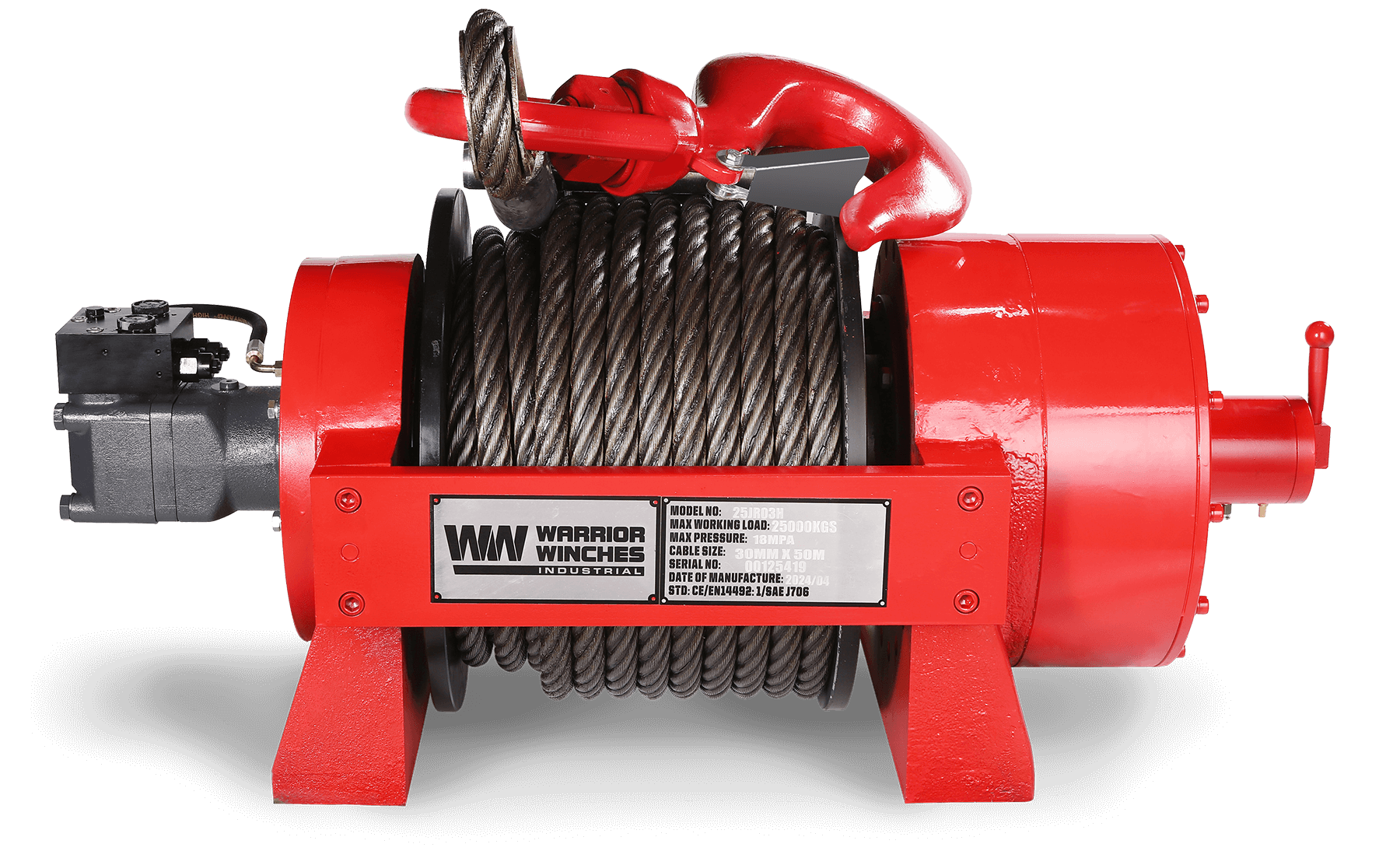

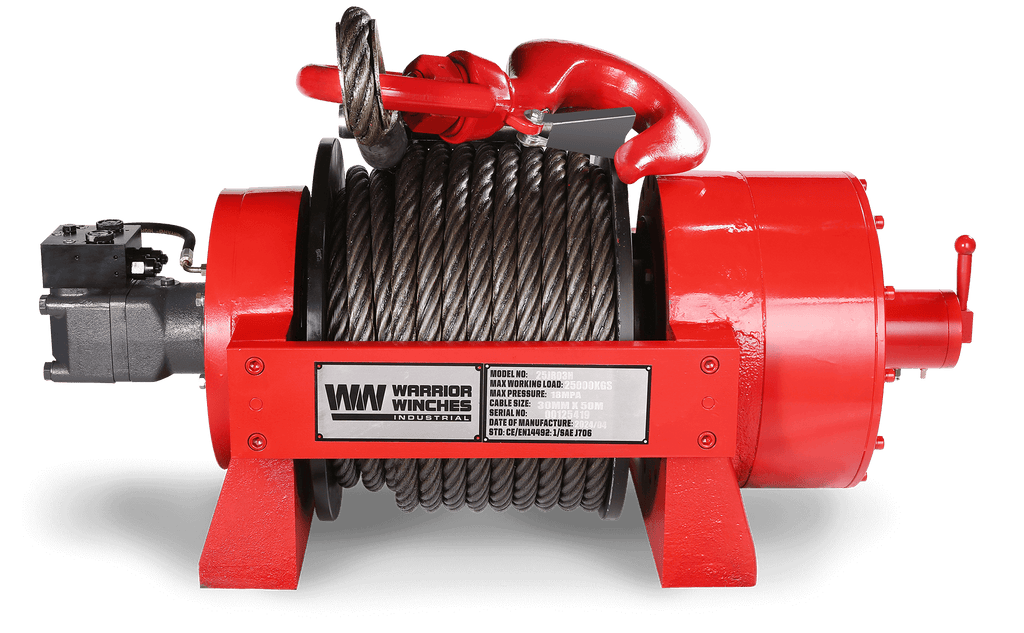

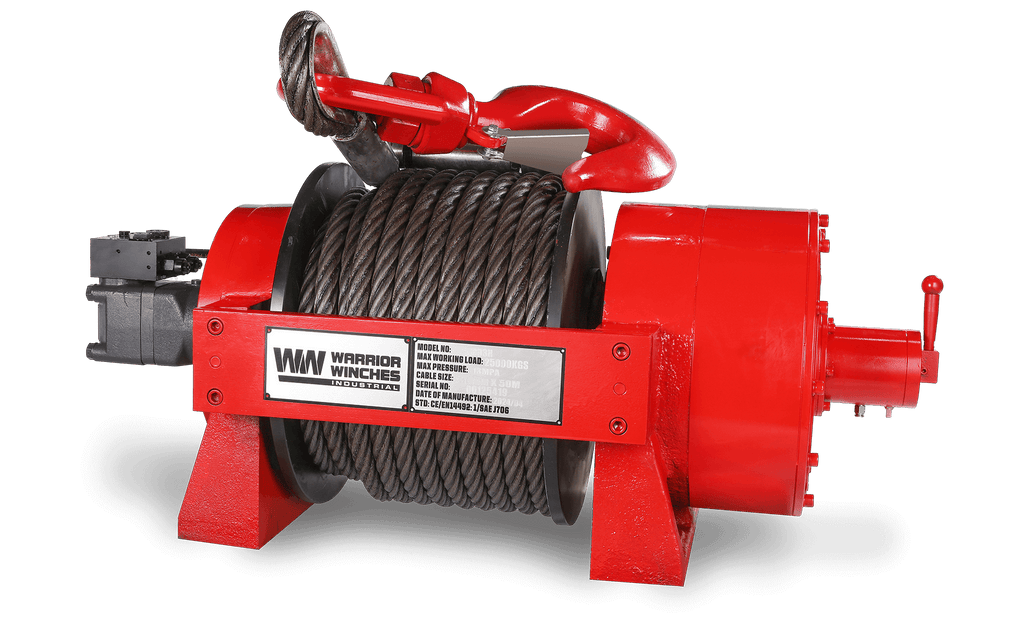

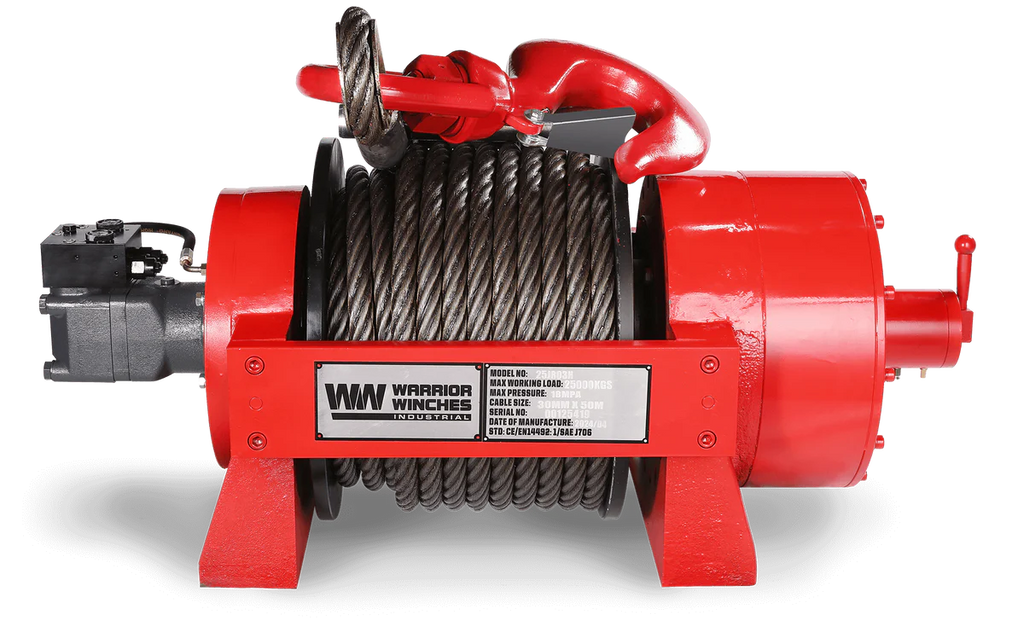

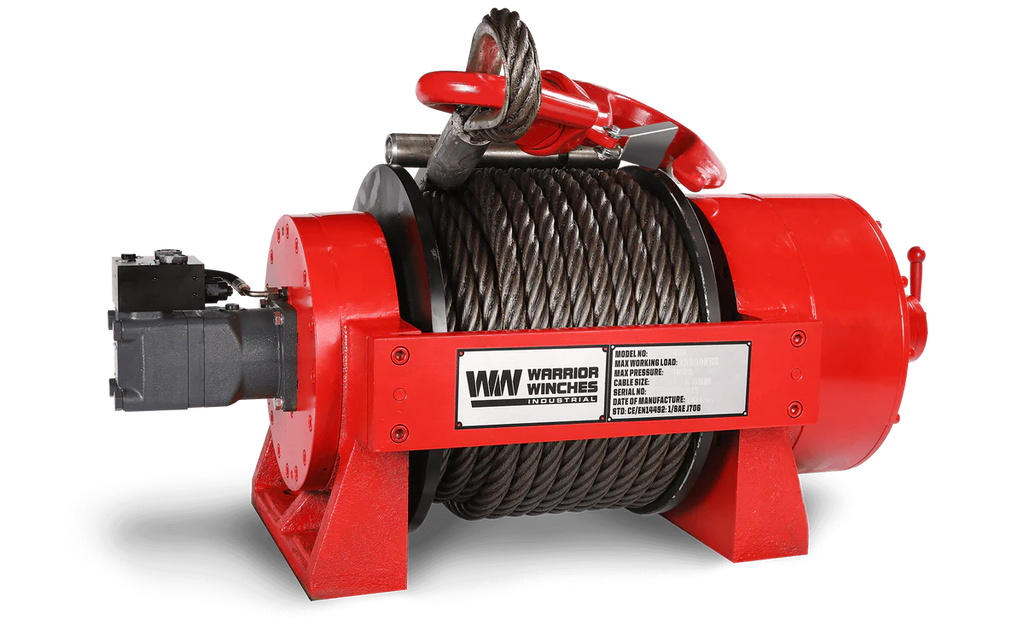

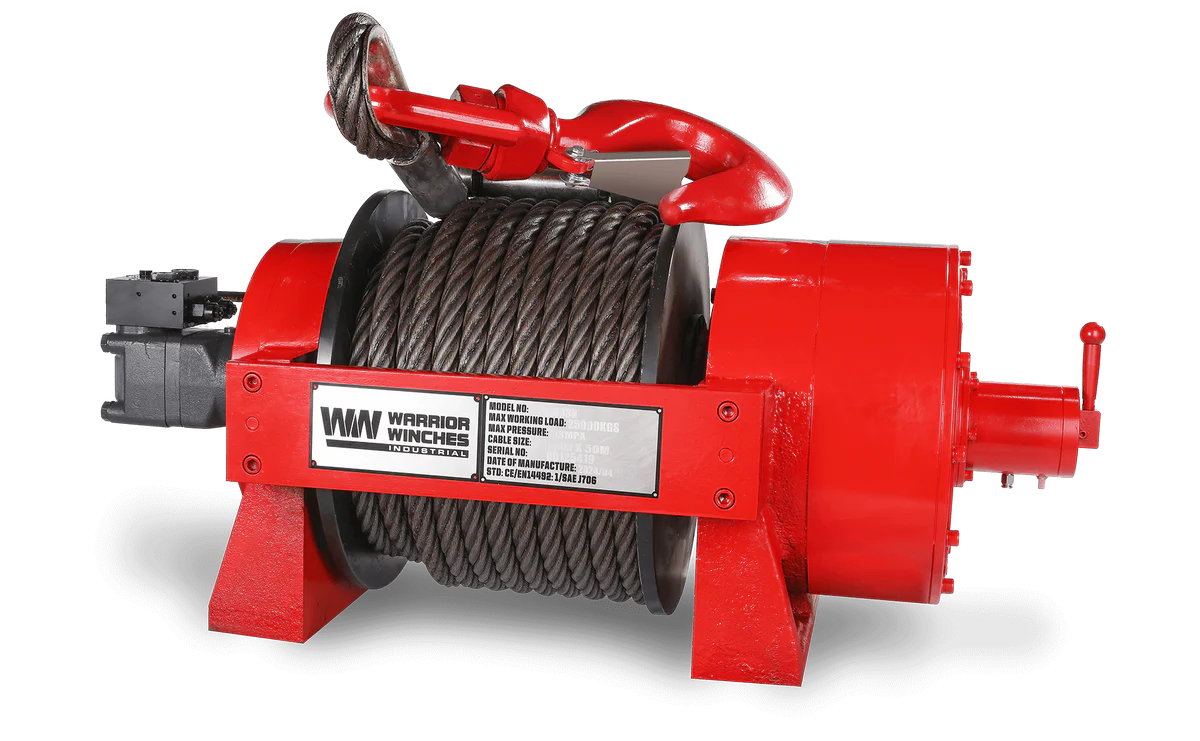

Durable and space-efficient, the JR series stands as a robust line of hydraulic winches meticulously engineered and proven for the most demanding tasks. These winches range in capacity from 13 tonnes to 30 tonnes, and they are carefully crafted to adhere to the SAEJ-706 Standard.
Combined with a suitable installation solution they can meet the requirements of BS EN 14492-1:2006+A1:2009.
| Rated Line Pull | 55000 lbs |
| Gearing | 53:1 |
| Clutch | Air Clutch |
| Braking Action | Wet-type Hydraulic |
| Drum Size (Dia x L) | Ø10.63 “ × 14.2 “ (Ø270mm×360 mm) |
| Cable Material | Steel |
| Cable – Dia x L | Ø1.18 “×164FT(Ø30mm×50m) |
| Mounting Pattern | 24” × 6.7 × 12.2” 610mm ×170 × 310mm 8- M27 |

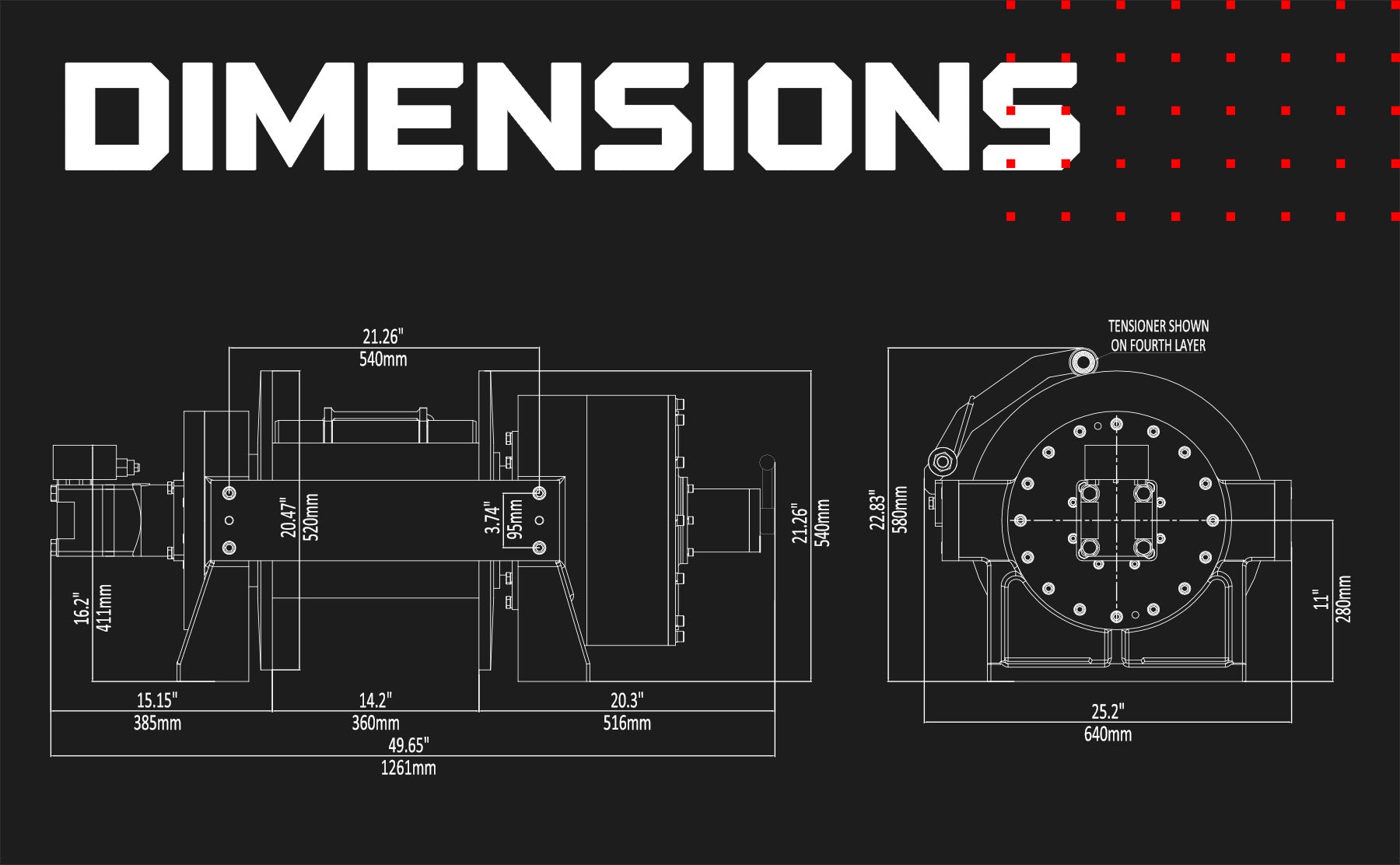

| Dimensions | 49.65” × 25.2” × 21.3” 1261mm × 640mm × 540mm |
| Weight | 1940 lbs (880 kg) |
| Max Flow | 31.7 G/min (120 L/min) |
| Max Pressure | 3500 psi (241 Bar) |
| Certification | SAEJ-706 |
| Line pull lbs (kgs) | Pressure Mpa(Psi) |
|---|---|
| 0 | 7 (1015.3) |
| 22000 (10000) | 8.5 (1232.8) |
| 44000 (20000) | 15 (2175.6) |
| 55000 (25000) | 18 (2610.7) |
| Flow G/min (L/min) | Line speed ft/min(m/min) |
|---|---|
| 5.3 (20) | 2.9 (0.9) |
| 13.2 (50) | 7.8 (2.4) |
| 22.5 (85) | 13.7 (4.2) |
| 31.7 (120) | 19.0 (5.8) |
| Layer of wire rope | Rated line pull lbs(kgs) | Total rope on drum ft (m) |
|---|---|---|
| 1 | 55000 (25000)) | 30.8 (9.4) |
| 2 | 45832 (20833) | 65.6 (20) |
| 3 | 39285 (17857) | 108.2 (33) |
| 4 | 34375 (15625) | 164 (50) |
